30544 - Toro 44" Mower Deck for Groundsmaster 117/120 (SN: 009000001 - 009999999) (1989) Cutting Unit Model No. 30544 (continued) 2 Parts Diagram

44" Mower Deck for Groundsmaster 117/120

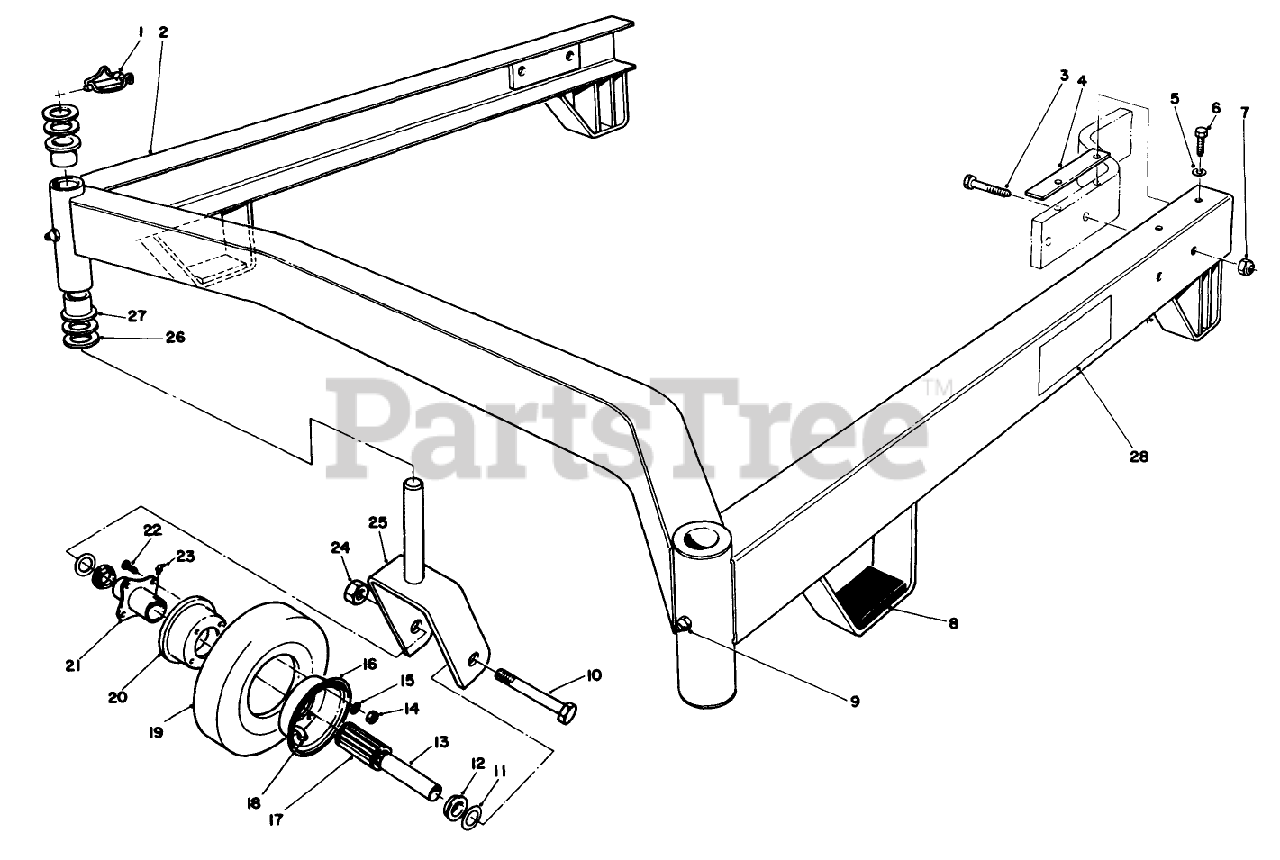

Cutting Unit Model No. 30544 (continued) 2 Parts Diagram

  • Title
1

Toro 3290-384

PIN-LYNCH

$22.99

$

Usually ships in 3-6 days

0

2

Toro 54-0800

See Supercession: 94-5830
(Superseded to 94-5830)

$

$

Not available

3

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 62-6980

SHIM-CARRIER

$

$

Not available

5

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

6

Toro 3235-21

SCREW W/PATCH

$

$

Not available

7

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

8

Toro 54-2700

See Supercession: 74-0340
(Superseded to 74-0340)

$4.99

$

Usually ships in 3-6 days

0

9

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

10

Toro 328-9

SCREW-HH

$21.99

$

In Stock, only 1 left!

0

11

Toro 57-4250

WHEEL SPACER

$10.99

$

Usually ships in 3-6 days

0

12

Toro 54-8840

RETAINER

$6.49

$

In Stock, Qty 6

0

13

Toro 54-8860

See Supercession: 27-1200
(Superseded to 27-1200)

$15.99

$

In Stock, only 3 left!

0

14

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

15

Toro 325-34

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

16

Toro 54-8900

WHEEL HALF-MALE

$37.99

$

Usually ships in 3-6 days

0

17

Toro 54-8850

ROLLER BEARING

$29.99

$

In Stock, only 2 left!

0

18

Toro 54-8880

DISCONTINUED

$

$

Not available

19

Toro 54-8870

TIRE 8"(4-PLY)

$78.99

$

Usually ships in 3-6 days

0

20

Toro 54-8910

WHEEL HALF-FEMALE

$37.99

$

Usually ships in 3-6 days

0

21

Toro 54-8830

HUB - CENTERED

$

$

Not available

22

Toro 54-8890

WHEEL BOLT

$0.99

$

Usually ships in 3-6 days

0

23

Toro 302-61

FITTING-GREASE

$11.99

$

In Stock, only 2 left!

0

24

Toro 32153-6

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

25

Toro 40-0370

See Supercession: 40-0370-01
(Superseded to 40-0370-01)

$117.99

$

In Stock, only 1 left!

0

26

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

27

Toro 28-9290

See Supercession: 94-1291
(Superseded to 94-1291)

$11.99

$

In Stock, Qty 10

0

28

Toro 68-8360

DECAL-HOC, LH

$28.99

$

Usually ships in 3-6 days

0

Toro 54-8820

See Supercession: 12-1519
(Superseded to 12-1519)

$

$

Not available
