30544 - Toro 44" Mower Deck for Groundsmaster 117/120 (SN: 000000001 - 000099999) (1990) Deluxe Suspension Seat Model No. 30756 (optional) Parts Diagram

44" Mower Deck for Groundsmaster 117/120

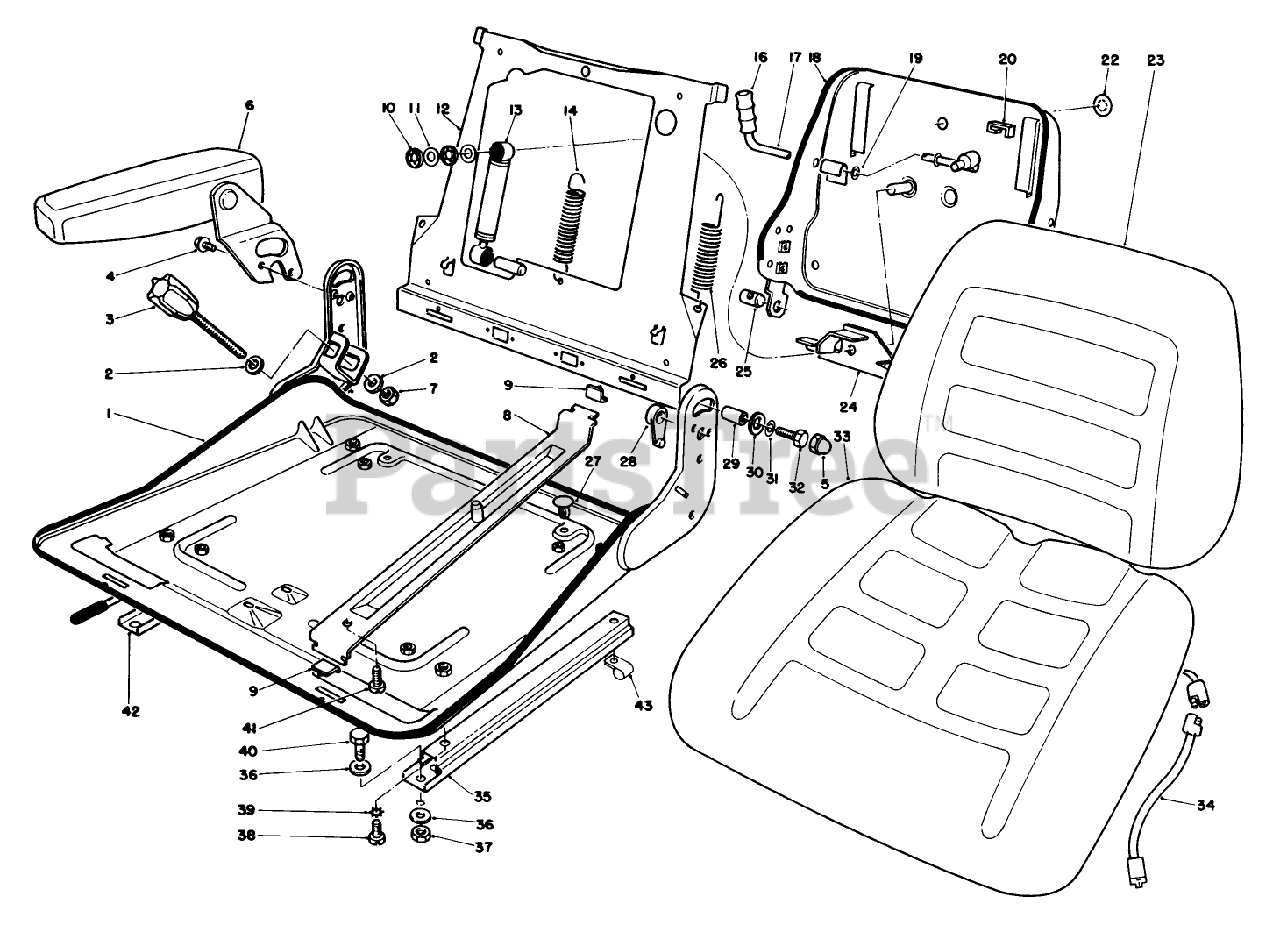

Deluxe Suspension Seat Model No. 30756 (optional) Parts Diagram

  • Title
1

Toro 56-3810

DISCONTINUED
(Superseded to 86-5260)

$

$

Not available

2

Toro 56-3880

WASHER

$

$

Not available

3

$44.99

$

Usually ships in 3-6 days

0

4

Toro 56-3850

SCREW

$

$

Not available

5

Toro 56-3960

DISCONTINUED

$

$

Not available

6

Toro 55-4331

RH ARMREST ASM

$

$

Not available

Toro 55-4330

LH ARMREST ASM

$

$

Not available

7

$

$

Not available

8

Toro 56-3970

See Supercession: 92-1702
(Superseded to 92-1702)

$721.99

$

Usually ships in 3-6 days

0

9

$

$

Not available

10

Toro 56-4080

DISCONTINUED

$

$

Not available

11

Toro 56-4090

See Supercession: 39-9500
(Superseded to 39-9500)

$

$

Not available

12

Toro 56-4040

See Supercession: 92-1702
(Superseded to 92-1702)

$721.99

$

Usually ships in 3-6 days

0

13

Toro 62-7670

SHOCK ABSORBER

$

$

Not available

14

Toro 56-4050

DISCONTINUED

$

$

Not available

16

Toro 56-4140

See Supercession: 56-4150
(Superseded to 56-4150)

$

$

Not available

17

Toro 56-4150

LEVER

$

$

Not available

18

Toro 56-3820

DISCONTINUED
(Superseded to 86-5260)

$

$

Not available

19

Toro 56-4160

DISCONTINUED

$

$

Not available

20

Toro 56-4130

DISCONTINUED

$

$

Not available

22

Toro 56-4120

DISCONTINUED

$

$

Not available

23

Toro 56-3800

See Supercession: 82-2800
(Superseded to 82-2800)

$566.99

$

Usually ships in 3-6 days

0

24

Toro 56-4100

DISCONTINUED

$

$

Not available

25

$

$

Not available

26

Toro 56-4060

SPRING

$

$

Not available

27

Toro 56-4190

DISCONTINUED

$

$

Not available

28

Toro 56-3900

DISCONTINUED

$

$

Not available

Toro 56-3910

DISCONTINUED

$

$

Not available

29

Toro 56-3920

DISCONTINUED

$

$

Not available

30

Toro 56-3930

DISCONTINUED

$

$

Not available

31

Toro 56-3940

WASHER

$

$

Not available

32

Toro 56-3950

DISCONTINUED

$

$

Not available

33

Toro 56-3790

DISCONTINUED

$

$

Not available

34

Toro 55-8380

JUMPER WIRE ASM

$23.99

$

Usually ships in 3-6 days

0

35

Toro 56-4000

See Supercession: 40-3820
(Superseded to 40-3820)

$476.99

$

Usually ships in 3-6 days

0

36

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

37

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

38

Toro 56-4020

DISCONTINUED

$

$

Not available

39

Toro 56-4030

DISCONTINUED

$

$

Not available

40

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

41

Toro 56-3990

SCREW

$

$

Not available

42

Toro 56-4010

See Supercession: 40-3790
(Superseded to 40-3790)

$

$

Not available

43

Toro 2412-67

DISCONTINUED

$

$

Not available

Toro 55-8420

USE MODEL 30756

$

$

Not available
