30544 TE - Toro 112cm Mower Deck for Groundsmaster 120 (SN: 230000001 - 230999999) (2003) Cover and Gearbox Assembly Parts Diagram

112cm Mower Deck for Groundsmaster 120

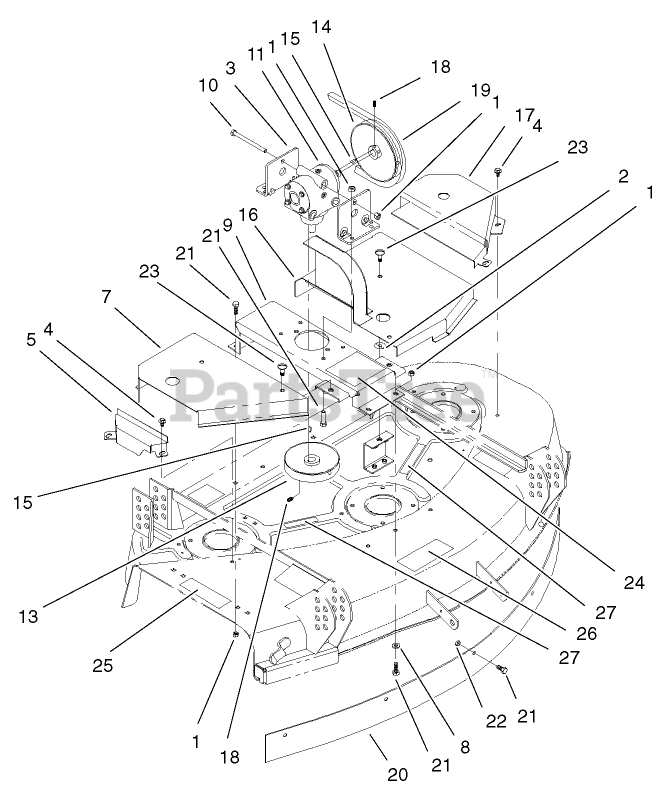

Cover and Gearbox Assembly Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 249-35

RING-RETAINING

$

$

Not available

3

Toro 105-4604-01

BRACKET-MOUNTING, GEARBOX

$

$

Not available

4

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

5

Toro 54-2250-01

COVER-DECK, RH

$

$

Not available

7

Toro 105-4633

RH COVER ASM

$

$

Not available

8

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

9

Toro 105-4605-01

BRACKET-GEARBOX

$

$

Not available

10

Toro 322-19

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

11

Toro 105-4600

GEARBOX-90 DEG

$

$

Not available

13

Toro 105-4601

PULLEY

$

$

Not available

14

Toro 105-4602

PULLEY

$

$

Not available

15

Toro 3257-30

KEY-WOODRUFF

$5.99

$

In Stock, only 4 left!

0

16

Toro 105-4634

CENTER COVER ASM

$

$

Not available

17

Toro 105-4635

DISCONTINUED

$

$

Not available

18

Toro 3245-9

SCREW-SET, HSH

$0.99

$

In Stock, Qty 12

0

19

Toro 54-1360

V-BELT-DRIVE, DECK

$40.99

$

Usually ships in 3-6 days

0

20

Toro 93-9485-01

DISCONTINUED

$

$

Not available

21

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

22

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

23

Toro 94-1293

FASTENER-1/4 TURN

$

$

Not available

24

Toro 54-2760

DECAL-44 INCH

$

$

Not available

25

Toro 93-7828

DECAL-WARNING, DEFLECTOR

$23.99

$

Usually ships in 3-6 days

0

26

Toro 93-7824

DECAL-DANGER

$24.99

$

Usually ships in 3-6 days

0

27

Toro 93-7273

See Supercession: 106-8120
(Superseded to 106-8120)

$10.99

$

Usually ships in 3-6 days

0
