30543 - Toro 44" Mower Deck for Groundsmaster 120 (SN: 079000001 - 079999999) (1997) GEARBOX ASSEMBLY NO. 54-2320 Parts Diagram

44" Mower Deck for Groundsmaster 120

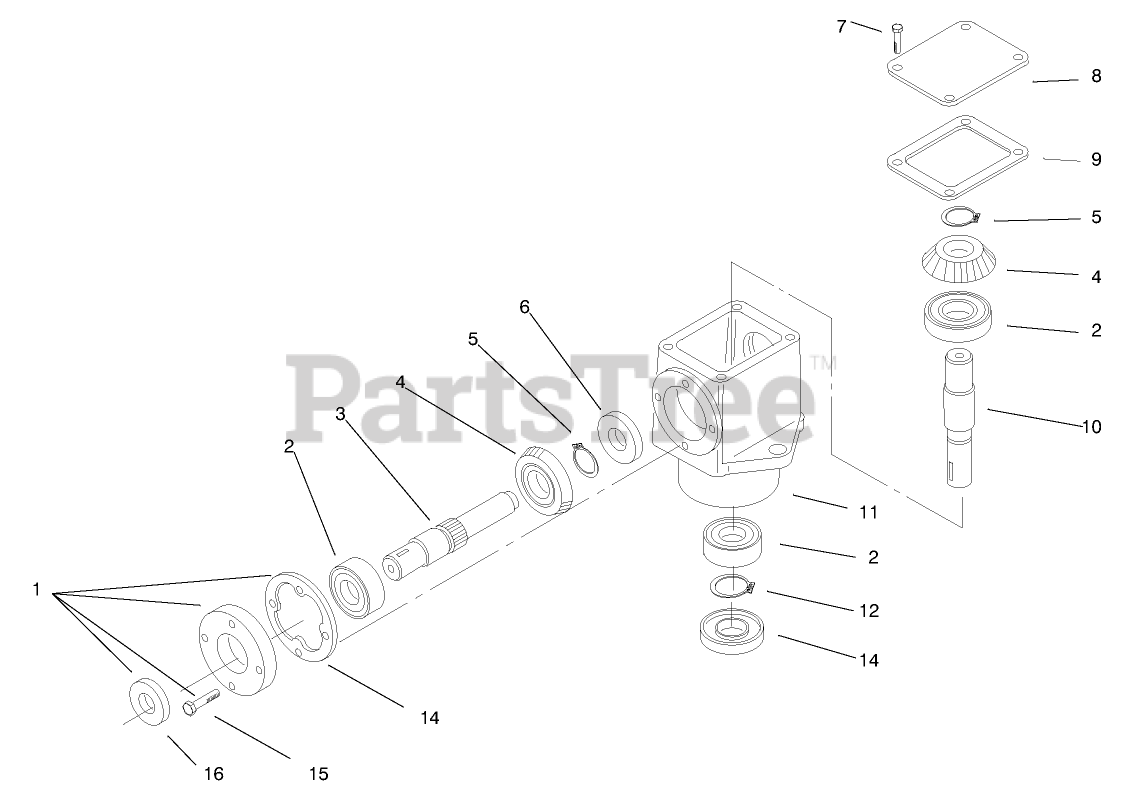

GEARBOX ASSEMBLY NO. 54-2320 Parts Diagram

  • Title
1

Toro 786029

Retainer Asm

$

$

Currently unavailable

2

Toro 780034

Bearing

$

$

Currently unavailable

3

Toro 776169

Shaft-Input

$

$

Currently unavailable

4

Toro 778101

Gear-Miter

$

$

Currently unavailable

5

Toro 788018

Ring-Snap

$

$

Currently unavailable

6

Toro 780024

Bearing

$

$

Currently unavailable

7

Toro 792025

Screw

$

$

Currently unavailable

8

Toro 772093

Cover

$

$

Currently unavailable

9

Toro 788028

Gasket

$

$

Currently unavailable

10

Toro 776153

Shaft-Output

$

$

Currently unavailable

11

Toro 770026A

Housing

$

$

Currently unavailable

12

Toro 788019

Ring-Snap

$

$

Currently unavailable

13

$

$

Currently unavailable

14

Toro 788030

Gasket

$

$

Currently unavailable

15

Toro 792026

Ring Set (STD)

$

$

Currently unavailable

16

Toro 788031

Oil Seal

$

$

Currently unavailable

Toro 794375

Head Asm-R.H

Note: Not illustrated

$

$

Currently unavailable
