30543 - Toro 44" Mower Deck for Groundsmaster 120 (SN: 079000001 - 079999999) (1997) CARRIER FRAME Parts Diagram

44" Mower Deck for Groundsmaster 120

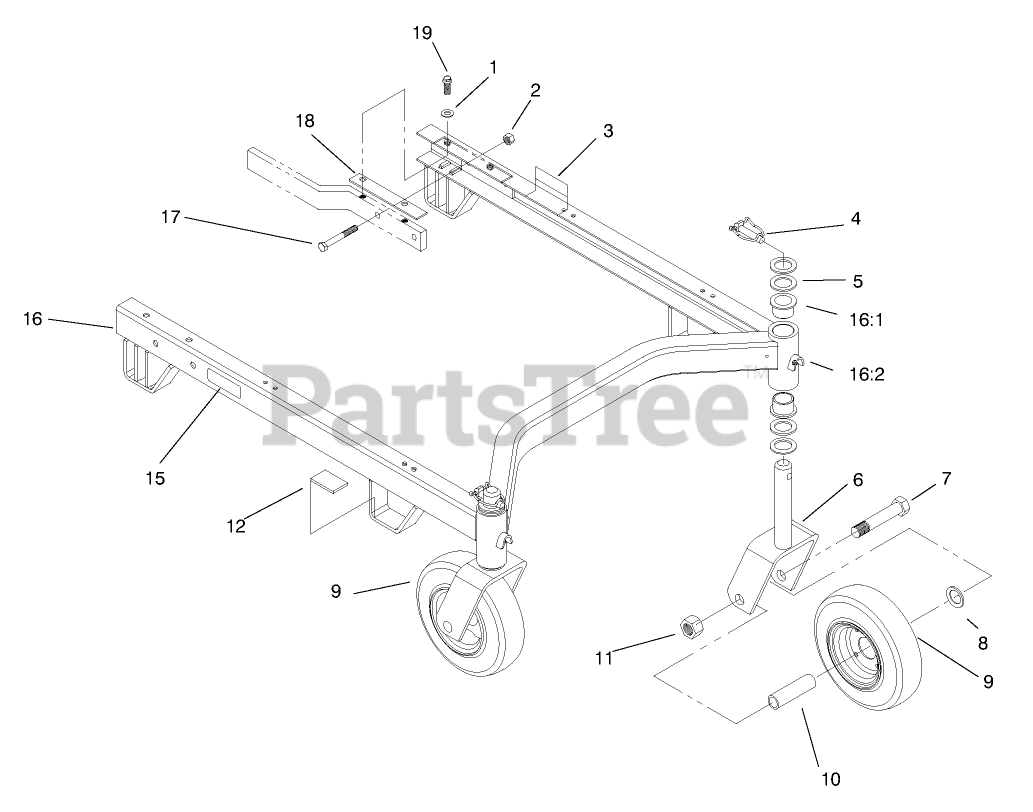

CARRIER FRAME Parts Diagram

  • Title

1

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

3

Toro 68-8360

DECAL-HOC, LH

$28.99

$

Usually ships in 3-6 days

0

4

Toro 283-71

PIN-LYNCH

$5.99

$

In Stock, Qty 5

0

5

Toro 3-6781

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

6

Toro 68-8900

Castor Fork
(Superseded to 68-8900-01)

$119.99

$

Usually ships in 3-6 days

0

7

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

8

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 68-8970

TIRE AND BEARING ASM

$127.99

$

Usually ships in 3-6 days

0

10

Toro 68-8980

SPANNER-TIRE

$10.99

$

In Stock, Qty 11

0

11

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

12

Toro 74-0340

CUSHION-RUBBER

$4.99

$

Usually ships in 3-6 days

0

15

Toro 74-0940

DECAL-HOC, RH

$

$

Not available

16

Toro 94-5830

SUSPENSION W A

$

$

Not available

16:1

Toro 94-1291

BUSHING

$11.99

$

In Stock, Qty 14

0

16:2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

17

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 62-6980

SHIM-CARRIER

$

$

Not available

19

Toro 3234-25

SCREW-HHF

$8.49

$

Usually ships in 3-6 days

0
