30531 - Toro 48" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 15hp (SN: 250000001 - 250999999) (2005) ENGINE AND FUEL TANK ASSEMBLY Parts Diagram

48" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 15hp

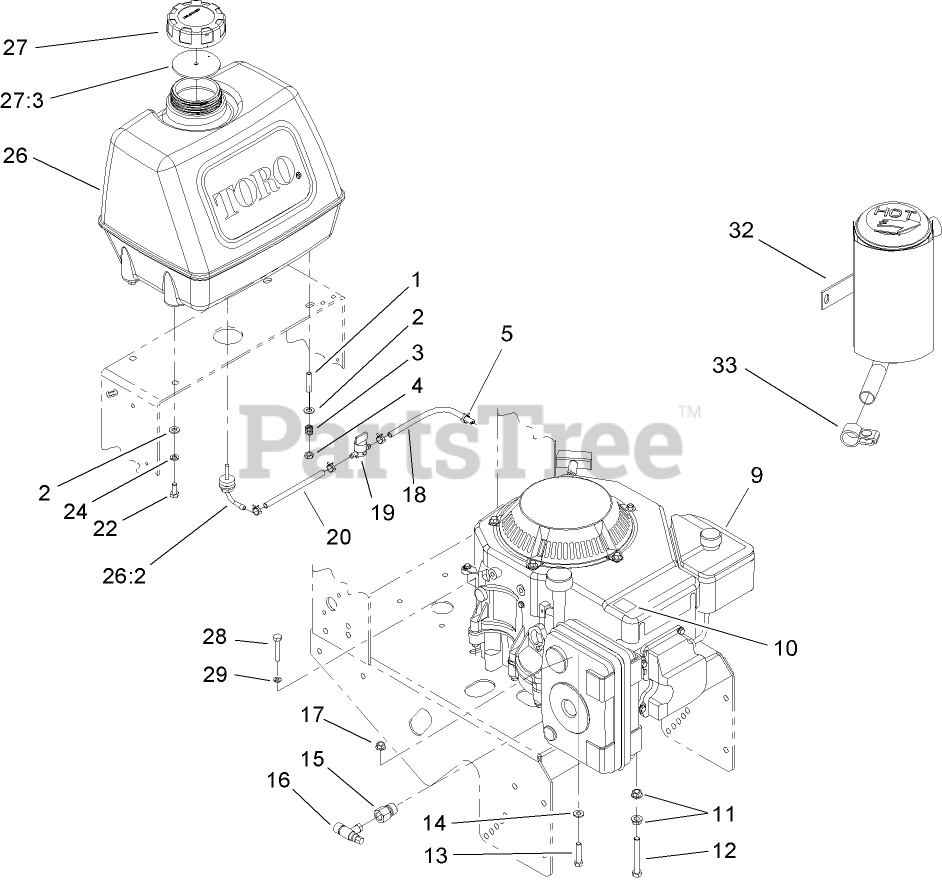

ENGINE AND FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 1-633023

STUD

$6.49

$

Usually ships in 3-6 days

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

4

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

5

Toro 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

0

9

ENGINE-KAWASAKI, FH430V-CS25

Note: Not serviced separately

$

$

Not available

10

Toro 63-8440

DECAL-SURFACE, HOT

$

$

Not available

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 14

0

13

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

15

Toro 103-1966

Adapter

$18.99

$

In Stock, only 1 left!

0

16

Toro 103-1965

Valve-Drain, Oil

$55.99

$

In Stock, only 1 left!

0

17

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

18

Toro 1-303022

HOSE-FUEL

$5.49

$

In Stock, only 3 left!

0

19

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

20

Toro 1-603955

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

22

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

24

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

26

Toro 106-0730

FUEL TANK ASM

$

$

Not available

26:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 2 left!

0

27

Toro 88-3980

GAS CAP ASM

$33.99

$

In Stock, Qty 6

0

27:3

Toro 88-4010

GASKET-CAP, GAS

$34.99

$

In Stock, only 1 left!

0

28

Toro 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

29

Toro 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

32

Toro 100-6467

MUFFLER

$

$

Not available

33

Toro 103-5465

CLAMP-MUFFLER

$20.99

$

In Stock, only 1 left!

0

99

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

Note: Not illustrated

$0.99

$

In Stock, Qty 8

0
