30530 - Toro 48" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 15hp (SN: 230000001 - 230999999) (2003) UPPER HANDLE ASSEMBLY Parts Diagram

48" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 15hp

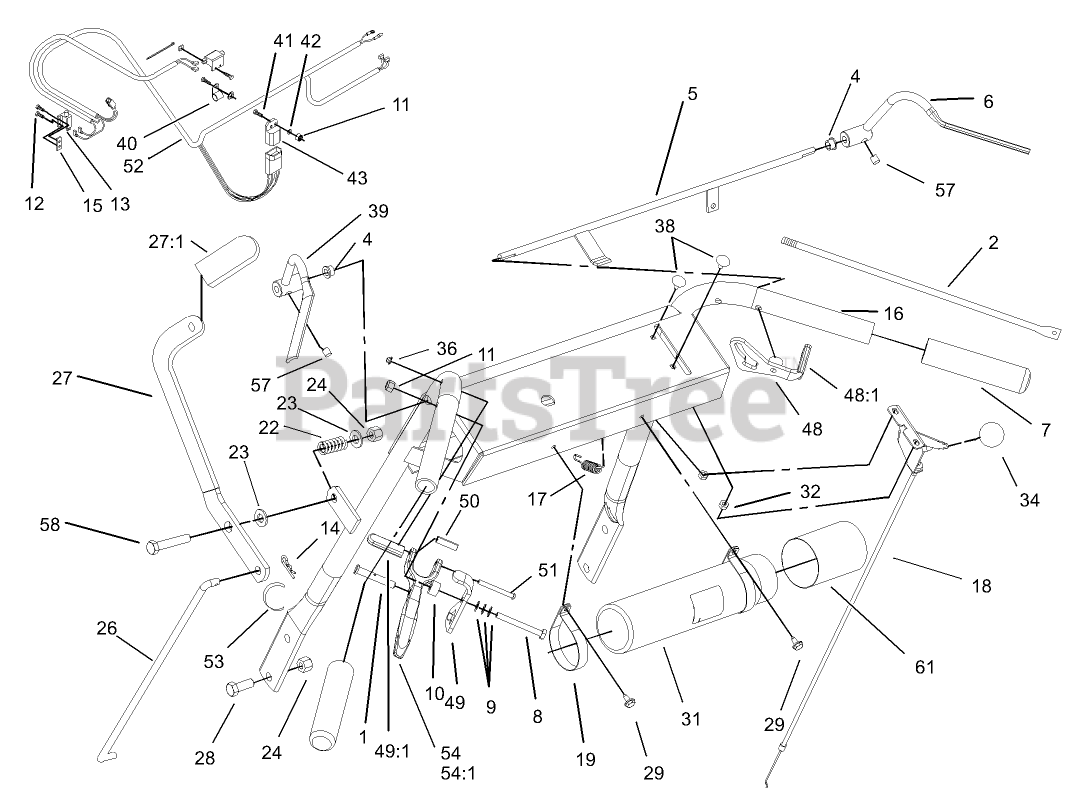

UPPER HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 1-808286

PIN-CLEVIS

$5.49

$

In Stock, Qty 20+

0

2

Toro 1-323359

Linkage-Wheel, Drive

$20.99

$

In Stock, Qty 6

0

4

Toro 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 10

0

5

Toro 106-2717-03

ROD-CONTROL, OPERATOR PRESENCE

$61.99

$

In Stock, only 1 left!

0

6

Toro 1-412185-03

LEVER-RH

$37.99

$

In Stock, only 4 left!

0

7

Toro 1-303097

Grip-Handle
(Superseded to 104-9838)

$5.99

$

In Stock, Qty 16

0

8

Toro 321-18

SCREW-HH

$2.49

$

In Stock, only 3 left!

0

9

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

0

10

Toro 1-323549

SPACER

$13.99

$

Usually ships in 3-6 days

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

13

Toro 1-513051

SWITCH-OPEN, NORMALLY

$18.99

$

In Stock, Qty 20+

0

14

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

15

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

16

Toro 106-2719

HANDLE ASM

$

$

Not available

17

Toro 1-303363

SPRING-EXTENSION

$6.49

$

In Stock, only 1 left!

0

18

Toro 1-323322

Cable-Control, Throttle

$68.99

$

Usually ships in 3-6 days

0

19

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

22

Toro 1-303160

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

23

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

24

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

26

Toro 1-323298

Linkage-Blade, Upper

$87.99

$

Usually ships in 3-6 days

0

27

Toro 1-322157

LEVER ASM
(Superseded to 116-6331)

$53.99

$

Usually ships in 3-6 days

0

27:1

Toro 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

0

28

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

29

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

31

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

32

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 1-513592

KNOB-BALL

$6.49

$

In Stock, Qty 11

0

36

Toro 1-803001

NUT

$1.49

$

In Stock, Qty 20+

0

38

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

39

Toro 1-412183-03

LEVER-LH

$37.99

$

In Stock, Qty 5

0

40

Toro 1-323229

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

41

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

42

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

43

Toro 1-323430

MODULE-INTERLOCK

$135.99

$

In Stock, only 1 left!

0

48

Toro 1-324280

RH THUMB LATCH ASM
(Superseded to 137-9507)

$26.99

$

In Stock, only 2 left!

0

48:1

Toro 1-303019

GRIP-LATCH

$2.99

$

In Stock, Qty 5

0

49

Toro 1-324279

LH THUMB LATCH ASM
(Superseded to 137-9508)

$26.99

$

In Stock, only 2 left!

0

49:1

Toro 1-303019

GRIP-LATCH

$2.99

$

In Stock, Qty 5

0

50

Toro 1-806340

PIN-ROLL

$5.49

$

In Stock, only 2 left!

0

51

Toro 1-808250

PIN-LEVER, DRIVE

$2.99

$

In Stock, Qty 20+

0

52

Toro 103-1640

Harness-Wire

$133.99

$

Usually ships in 3-6 days

0

53

Toro 1-303088

Clip-Cable

$2.99

$

Usually ships in 3-6 days

0

54

Toro 1-302006

DRIVE LEVER ASM

$54.99

$

In Stock, Qty 5

0

54:1

Toro 1-303021

GRIP-LEVER, DRIVE

$1.49

$

In Stock, Qty 17

0

57

Toro 1-803322

SCREW-SET

$1.49

$

In Stock, Qty 5

0

58

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

61

Toro 104-7048

CAP-HOUSING

$5.49

$

Usually ships in 3-6 days

0
