30529 - Toro 36" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 15hp (SN: 240000001 - 240999999) (2004) STARTER ASSEMBLY KOHLER CV15T-41608 Parts Diagram

36" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 15hp

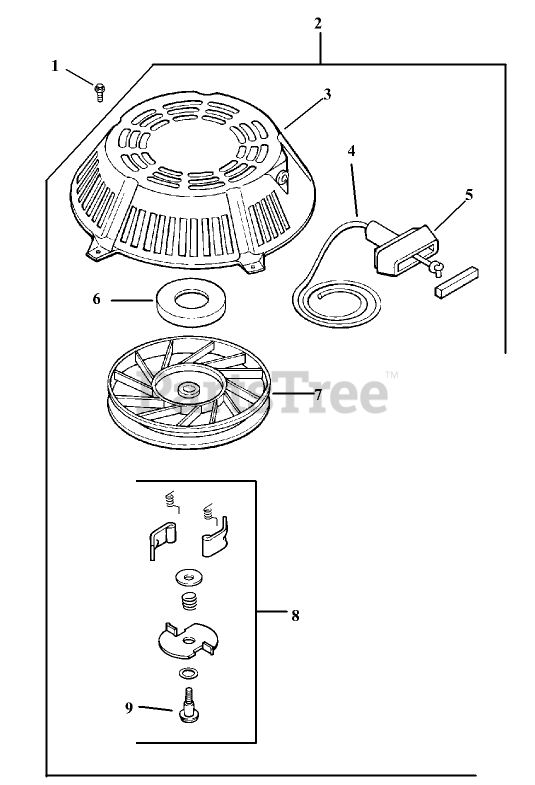

STARTER ASSEMBLY KOHLER CV15T-41608 Parts Diagram

  • Title

1

Kohler M-550010-S

Screw-HF (M5x0.8x10)

Note: Order Parts from Kohler

$3.99

$

In Stock, only 1 left!

0

2

Kohler 12 165 01-S

Starter ASM Retractable (Incl. 3-9)
(Superseded to 24 165 02-S)

Note: Order Parts from Kohler

$76.99

$

In Stock, only 2 left!

0

3

Kohler 12 081 01-S

Housing-Starter

Note: Order Parts from Kohler

$

$

Not available

4

Kohler 12 160 01-S

Rope-Starter

Note: Order Parts from Kohler

$

$

Not available

5

Kohler 25 166 01-S

Handle-Start, Recoil

Note: Order Parts from Kohler

$15.99

$

In Stock, Qty 10

0

6

Kohler 12 089 06-S

Spring and Keeper

Note: Order Parts from Kohler

$

$

Not available

7

Kohler 12 093 01-S

Pulley

Note: Order Parts from Kohler

$

$

Not available

8

Kohler 12 757 06-S

Kit-Dog Repair (incl. 9)

Note: Order Parts from Kohler

$

$

Not available

9

Kohler 41 086 09-S

Screw-pozi driv

Note: Order Parts from Kohler

$

$

Not available

Kohler 12 113 07-S

Decal-Starting

Note: Order Parts from Kohler

$

$

Not available

Kohler 12 113 07-S

Decal-Starting

Note: Not illustrated

$

$

Not available
