30529 - Toro 36" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 15hp (SN: 230000001 - 230999999) (2003) WHEEL DRIVE ASSEMBLY Parts Diagram

36" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 15hp

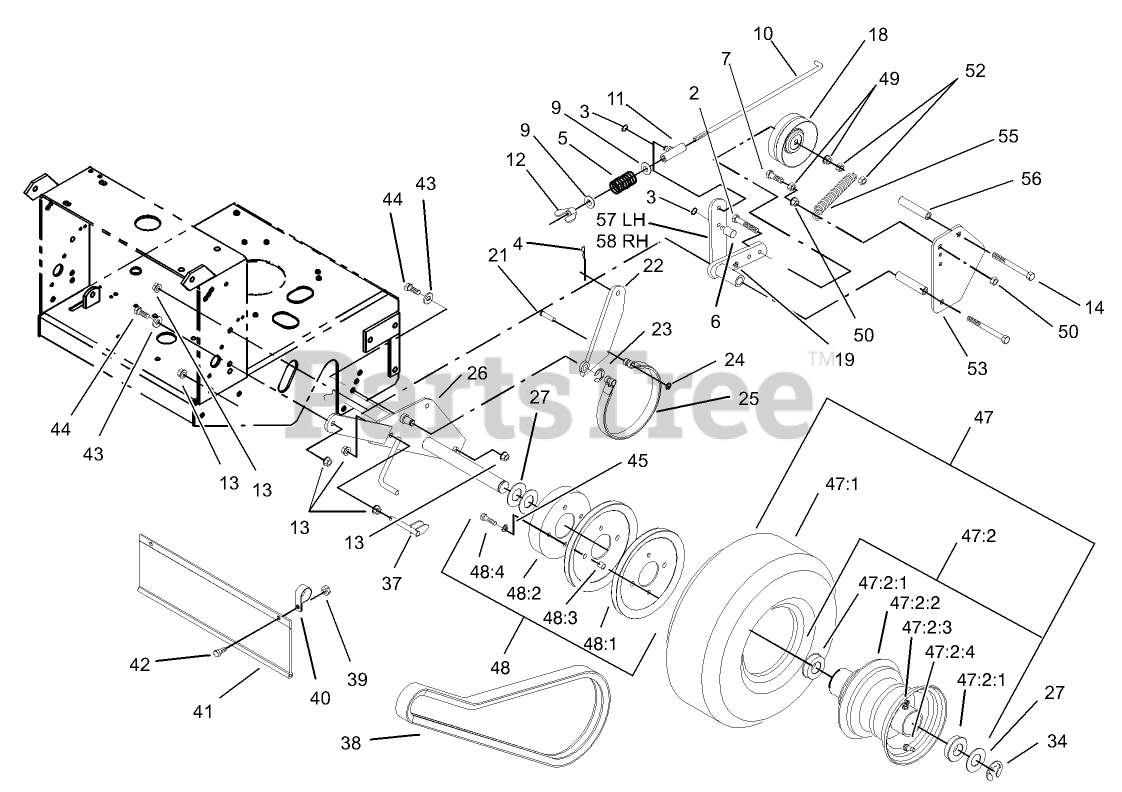

WHEEL DRIVE ASSEMBLY Parts Diagram

  • Title

2

Toro 99-8664

SCREW-HH

$2.99

$

In Stock, Qty 5

0

3

Toro 32151-47

RING-RETAINING

$2.99

$

In Stock, only 3 left!

0

4

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

5

Toro 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

6

Toro 103-1864

Swivel-Lever, Drive

$11.99

$

Usually ships in 3-6 days

0

7

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 1-323548

Linkage-Brake

$27.99

$

In Stock, only 1 left!

0

11

Toro 1-322125

SWIVEL-BRAKE
(Superseded to 110-5866)

$25.99

$

Usually ships in 3-6 days

0

12

Toro 1-513959

WINGNUT-NYLOCK

$6.49

$

Usually ships in 3-6 days

0

13

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

14

Toro 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

18

Toro 1-323277

IDLER-WHEEL, DRIVE

$31.99

$

In Stock, only 2 left!

0

19

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

21

Toro 1-323307

PIN-CLEVIS

$5.49

$

In Stock, Qty 15

0

22

Toro 103-1611-03

ARM-BRAKE

$74.99

$

Usually ships in 3-6 days

0

23

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

24

Toro 1-803051

NUT-PUSH

$2.99

$

In Stock, Qty 20+

0

25

Toro 1-323262

BAND-BRAKE

$87.99

$

In Stock, only 2 left!

0

26

Toro 1-322117-03

Axle

$361.99

$

Usually ships in 3-6 days

0

27

Toro 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

27

Toro 1-543436

WASHER-SPACER

$1.49

$

In Stock, Qty 9

0

34

Toro 1-808519

RING-SNAP

$2.99

$

In Stock, only 4 left!

0

37

Toro 1-412358

SCRAPER

$31.99

$

In Stock, only 2 left!

0

38

Toro 1-323631

V-BELT

$80.99

$

In Stock, Qty 8

0

39

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

40

Toro 2412-104

CLAMP-R

$6.99

$

Usually ships in 3-6 days

0

41

Toro 98-3259

SHIELD-TRAILING

$70.99

$

In Stock, only 2 left!

0

42

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

43

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

44

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

45

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

47

WHEEL AND TIRE ASM

Note: Not serviced separately

$

$

Not available

47:1

Toro 1-323720

Tire-Turfmaster

$120.99

$

Usually ships in 3-6 days

0

47:2

Toro 1-323328

WHEEL AND HUB ASM

$166.99

$

Usually ships in 3-6 days

0

47:2:1

Toro 1-323329

BEARING-FLANGED

$62.99

$

In Stock, only 1 left!

0

47:2:2

Rim ASM

Note: Not serviced separately

$

$

Not available

47:2:3

Fitting-Grease

Note: Not serviced separately

$

$

Not available

47:2:4

Stem-Valve

Note: Not serviced separately

$

$

Not available

48

Drum and Sheave ASM

Note: Not serviced separately

$

$

Not available

48:1

Toro 1-323253

SHEAVE-WHEEL, DRIVE

$51.99

$

In Stock, only 4 left!

0

48:2

Toro 1-323261

DRUM-BRAKE

$19.99

$

In Stock, Qty 7

0

48:3

Toro 1-323260

SPACER-SHEAVE, WHEEL

$10.99

$

Usually ships in 3-6 days

0

48:4

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

49

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

50

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

52

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

53

Toro 1-323287-01

Shield-Wheel, Drive

$47.99

$

Usually ships in 3-6 days

0

55

Toro 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 3 left!

0

56

Toro 1-323283

SPACER-SHIELD

$9.49

$

In Stock, Qty 9

0

57

Toro 103-1615-03

Arm-Idler, LH
(Superseded to 116-7542-03)

$84.99

$

Usually ships in 3-6 days

0

58

Toro 103-1616-03

Arm-Idler, RH
(Superseded to 116-7543-03)

$84.99

$

Usually ships in 3-6 days
