30528 - Toro 48" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp (SN: 250000001 - 250999999) (2005) FUEL SYSTEM ASSEMBLY KOHLER CV15T 41624 Parts Diagram

48" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp

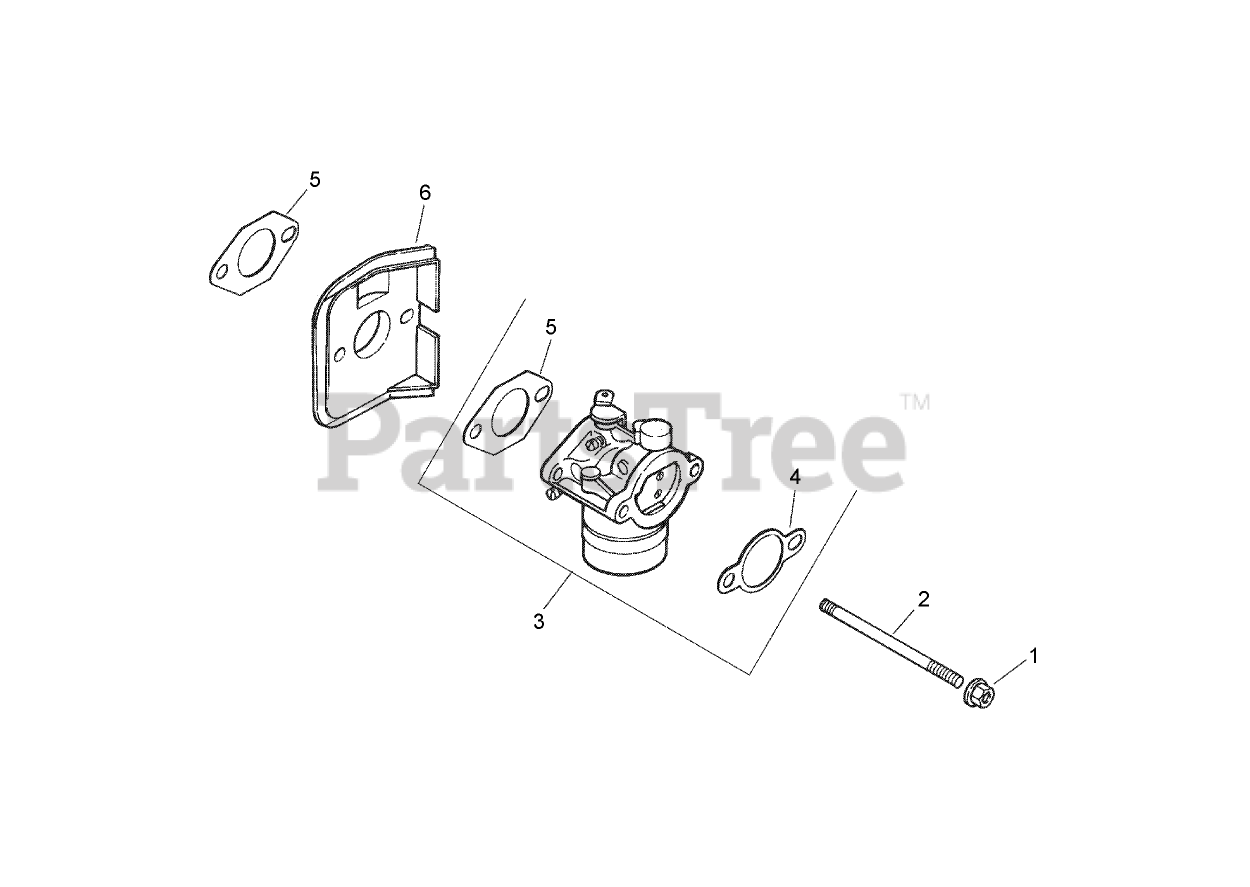

FUEL SYSTEM ASSEMBLY KOHLER CV15T 41624 Parts Diagram

  • Title
1

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 8

0

2

Kohler M-629116-S

Stud (M6x1.0x116)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 2 left!

0

3

Kohler 12 853 140-S

Carburetor Kit (Includes 4, 5 )

Note: Obtain parts from www.kohlerplus.com

$269.99

$

In Stock, only 1 left!

0

4

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 5

0

5

Kohler 12 041 01-S

Gasket-Carburetor

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 14

0

6

Kohler 12 265 04-S

Deflector-Heat
(Superseded to 12 265 08-S)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

In Stock, only 2 left!

0

Kohler 12 757 02-S

Float Repair Kit

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, only 3 left!

0

Kohler 12 757 02-S

Float Repair Kit

Note: Not illustrated

$13.99

$

In Stock, only 3 left!

0

Kohler 12 757 03-S

Carburetor Repair Kit

Note: Not illustrated

$35.99

$

In Stock, Qty 8

0

Kohler 12 757 03-S

Carburetor Repair Kit

Note: Obtain parts from www.kohlerplus.com

$35.99

$

In Stock, Qty 8

0

Kohler 12 757 08-S

Choke Repair Kit

Note: Obtain parts from www.kohlerplus.com

$36.99

$

Usually ships in 2-5 days

0

Kohler 12 757 08-S

Choke Repair Kit

Note: Not illustrated

$36.99

$

Usually ships in 2-5 days

0

Kohler 12 757 36-S

Throttle Shaft Bearing Kit

Note: Not illustrated

$13.99

$

Usually ships in 2-5 days

0

Kohler 12 757 36-S

Throttle Shaft Bearing Kit

Note: Obtain parts from www.kohlerplus.com

$13.99

$

Usually ships in 2-5 days

0

Kohler 12 757 37-S

Bowl Replacement Repair Kit

Note: Obtain parts from www.kohlerplus.com

$16.99

$

In Stock, Qty 6

0

Kohler 12 757 37-S

Bowl Replacement Repair Kit

Note: Not illustrated

$16.99

$

In Stock, Qty 6

0

Kohler 12 755 92-S

High Altitude Kit

Note: Not illustrated

$15.99

$

Usually ships in 2-5 days

0

Kohler 12 755 92-S

High Altitude Kit

Note: Obtain parts from www.kohlerplus.com

$15.99

$

Usually ships in 2-5 days

0
