30528 - Toro 48" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp (SN: 250000001 - 250999999) (2005) ENGINE AND FUEL SYSTEM ASSEMBLY Parts Diagram

48" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp

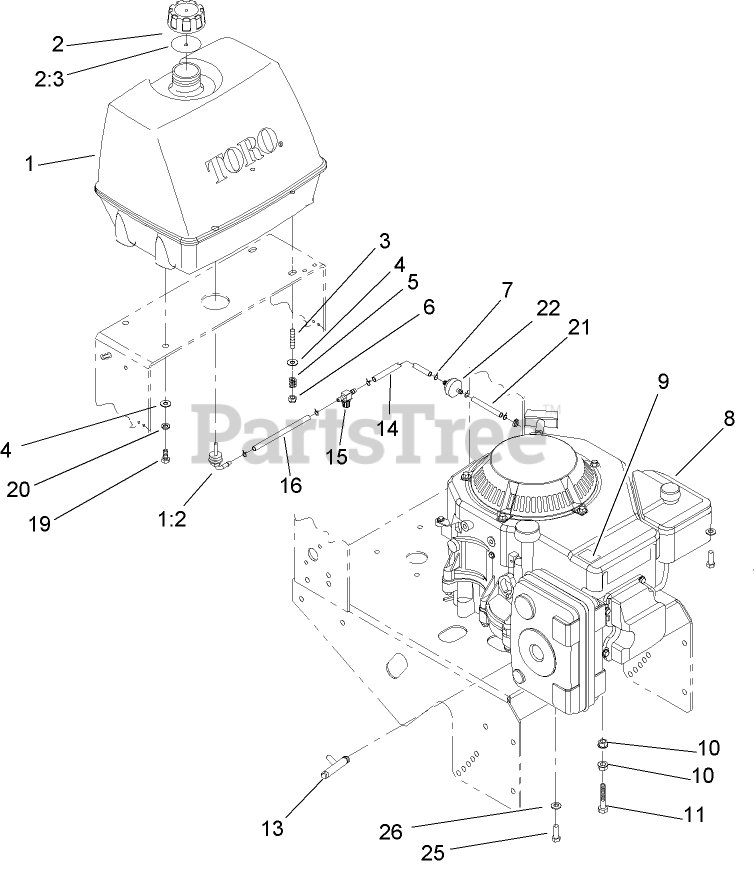

ENGINE AND FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 106-0730

FUEL TANK ASM

$

$

Not available

1:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 2 left!

0

2

Toro 88-3980

GAS CAP ASM

$33.99

$

In Stock, Qty 6

0

2:3

Toro 88-4010

GASKET-CAP, GAS

$34.99

$

In Stock, only 1 left!

0

3

Toro 1-633023

STUD

$6.49

$

Usually ships in 3-6 days

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

6

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 6

0

7

Toro 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

0

8

ENGINE-KOHLER, CV15T-41624

Note: Not serviced separately

$

$

Not available

9

Toro 106-0699

DECAL-WARNING

$55.99

$

Usually ships in 3-6 days

0

10

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

11

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 17

0

13

Toro 103-1965

Valve-Drain, Oil

$55.99

$

In Stock, only 1 left!

0

14

Toro 1-603776

HOSE-LINE, FUEL

$

$

Not available

15

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 8

0

16

Toro 1-603955

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

19

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

21

Toro 47-2983

HOSE-FUEL
(Superseded to 109-0296)

$10.99

$

In Stock, only 4 left!

0

22

Toro 1-303197

FILTER-FUEL
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 13

0

25

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

26

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0
