30528 - Toro 48" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp (SN: 230000001 - 230999999) (2003) TRANSMISSION AND DRIVE PULLEY ASSEMBLY Parts Diagram

48" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp

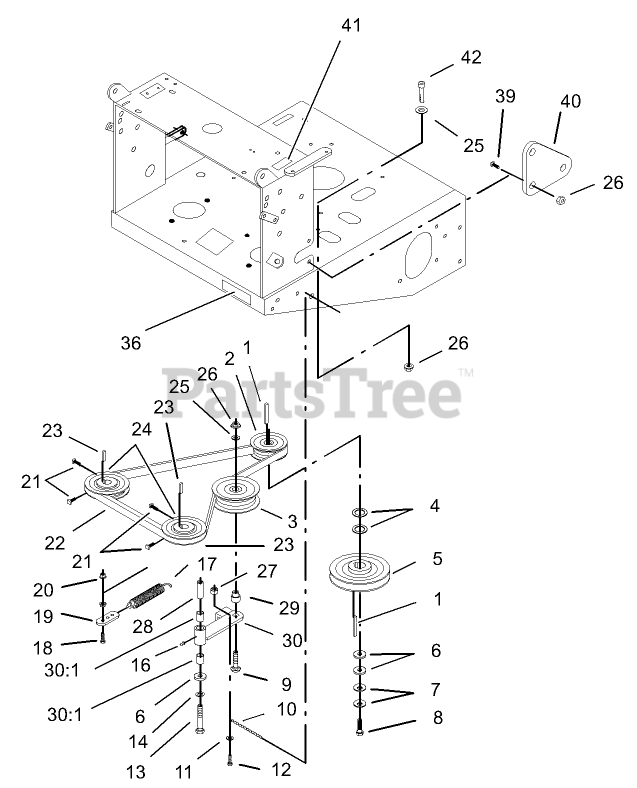

TRANSMISSION AND DRIVE PULLEY ASSEMBLY Parts Diagram

  • Title

1

Toro 1-807259

KEY

$2.99

$

In Stock, only 2 left!

0

2

Toro 1-653035

PULLEY

$68.99

$

In Stock, only 2 left!

0

3

Toro 1-603843

PULLEY-IDLER
(Superseded to 132-4718)

$33.99

$

In Stock, Qty 16

0

4

Toro 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

5

Toro 103-1667

Sheave

$79.99

$

Usually ships in 3-6 days

0

6

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

7

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

8

Toro 3212-6

SCREW-HH

$2.49

$

In Stock, only 1 left!

0

9

Toro 3231-29

SCREW-CARR

$7.49

$

Usually ships in 3-6 days

0

10

Toro 1-323365

Chain-Link, Twist

$17.99

$

In Stock, only 1 left!

0

11

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 1-809069

SCREW-HSH

$2.99

$

Usually ships in 3-6 days

0

13

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

14

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 17

0

16

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

17

Toro 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 3 left!

0

18

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 1-603801

Anchor-Spring

$21.99

$

Usually ships in 3-6 days

0

20

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

21

Toro 1-803050

SCREW-SET

$2.99

$

In Stock, Qty 8

0

22

Toro 106-2740

V-BELT

$61.99

$

In Stock, only 1 left!

0

23

Toro 1-807272

KEY

$5.99

$

In Stock, Qty 11

0

24

Toro 1-413010

SHEAVE ASM

$50.99

$

In Stock, only 2 left!

0

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

26

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

27

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 1-603044

BUSHING

$14.99

$

In Stock, only 4 left!

0

29

Toro 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

30

Toro 1-602521

Idler Arm ASM

$115.99

$

Usually ships in 3-6 days

0

30:1

Toro 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

36

Toro 98-0776

DECAL-CAUTION

$18.99

$

Usually ships in 3-6 days

0

39

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

40

Toro 1-413497

Bellcrank

$35.99

$

Usually ships in 3-6 days

0

41

Toro 95-2814

DECAL-SHUT OFF, FUEL

$

$

Not available

42

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0
