30528 - Toro 48" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp (SN: 230000001 - 230999999) (2003) FUEL SYSTEM ASSEMBLY KOHLER MODEL CV15T-41608 Parts Diagram

48" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp

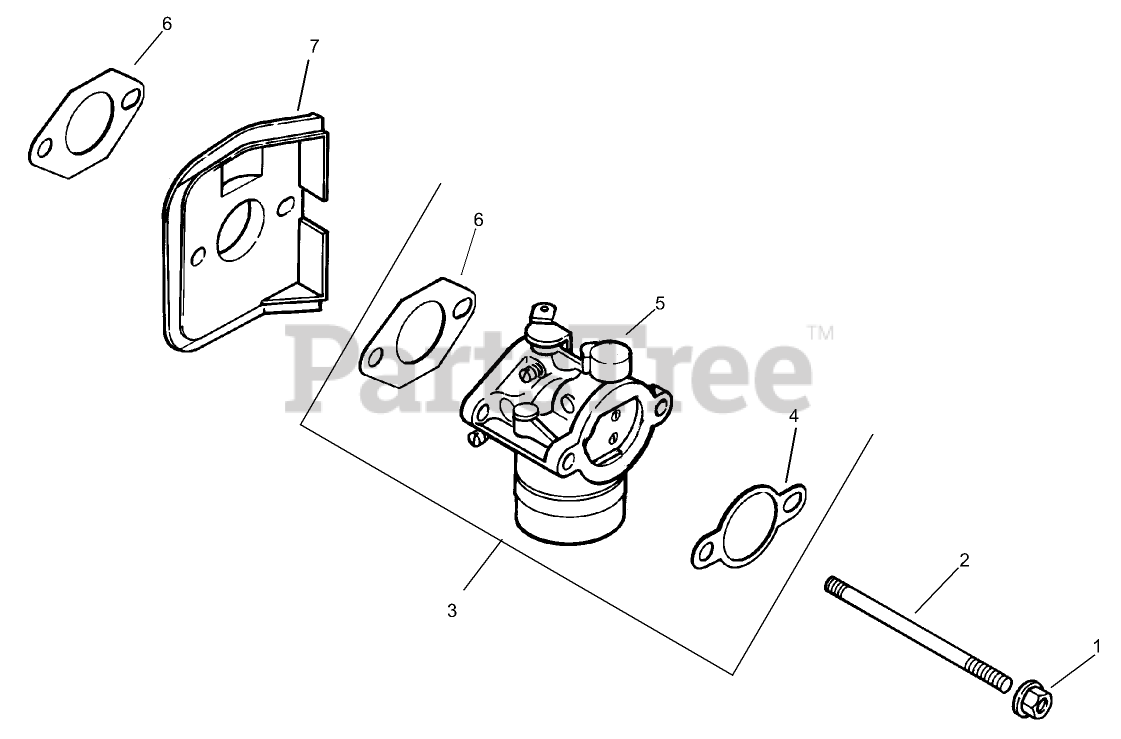

FUEL SYSTEM ASSEMBLY KOHLER MODEL CV15T-41608 Parts Diagram

  • Title

1

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Order Parts from Kohler

$4.49

$

In Stock, Qty 8

0

2

Kohler M-629116-S

Stud (M6x1.0x116)

Note: Order Parts from Kohler

$3.49

$

In Stock, only 2 left!

0

3

1285380-S

Kit-Carburetor w/Gaskets (Incl. 4-6)

Note: Order Parts from Kohler

$

$

Not available

4

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Order Parts from Kohler

$2.99

$

In Stock, Qty 5

0

5

1205380

Carburetor ASM

Note: Order Parts from Kohler

$

$

Not available

6

Kohler 12 041 01-S

Gasket-Carburetor

Note: Order Parts from Kohler

$2.49

$

In Stock, Qty 14

0

7

Kohler 12 265 04-S

Deflector-Heat
(Superseded to 12 265 08-S)

Note: Order Parts from Kohler

$9.49

$

In Stock, only 2 left!

0

Kohler 12 757 02-S

Float Repair Kit

Note: Order Parts from Kohler

$13.99

$

In Stock, only 3 left!

0

Kohler 12 757 02-S

Float Repair Kit

Note: Not illustrated

$13.99

$

In Stock, only 3 left!

0

Kohler 12 757 08-S

Choke Repair Kit

Note: Not illustrated

$36.99

$

Usually ships in 2-5 days

0

Kohler 12 757 08-S

Choke Repair Kit

Note: Order Parts from Kohler

$36.99

$

Usually ships in 2-5 days

0

Kohler 12 757 03-S

Carburetor Repair Kit

Note: Not illustrated

$35.99

$

In Stock, Qty 7

0

Kohler 12 757 03-S

Carburetor Repair Kit

Note: Order Parts from Kohler

$35.99

$

In Stock, Qty 7

0

Kohler 12 755 92-S

High Altitude Kit

Note: Order Parts from Kohler

$15.99

$

Usually ships in 2-5 days

0

Kohler 12 755 92-S

High Altitude Kit

Note: Not illustrated

$15.99

$

Usually ships in 2-5 days

0

8

Kohler 47 154 01-S

CLIP-CABLE

Note: Order Parts from Kohler

$5.49

$

In Stock, only 4 left!

0
