30528 - Toro 48" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp (SN: 230000001 - 230999999) (2003) DECK ASSEMBLY Parts Diagram

48" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp

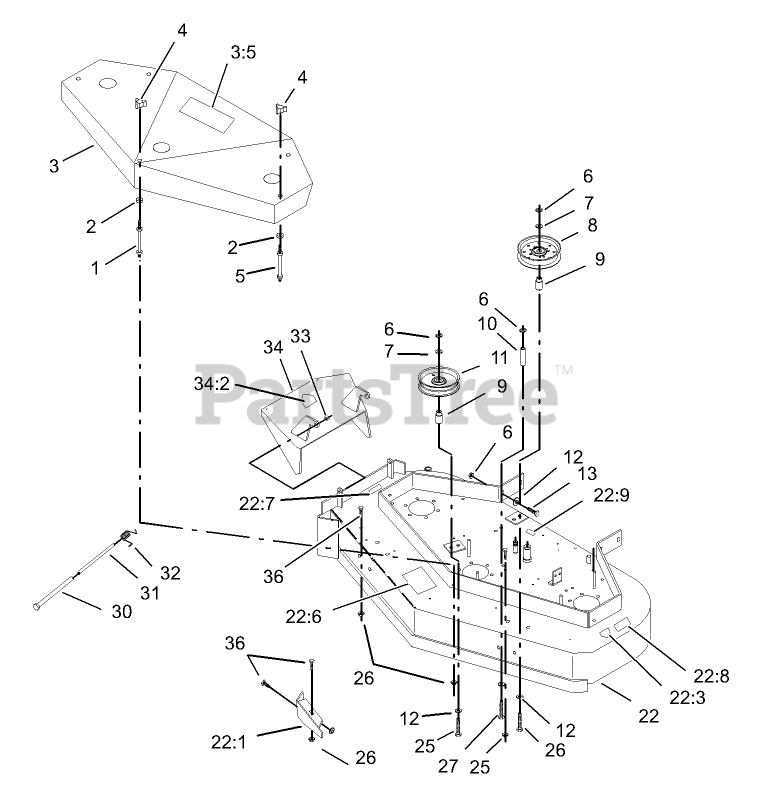

DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 1-303536

STUD-SHIELD, BELT (LONG)

$7.99

$

In Stock, Qty 20+

0

2

Toro 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

3

Toro 1-404246

SHIELD-BELT

$

$

Not available

3:5

$

$

Not available

4

Toro 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

5

Toro 1-303537

STUD-SHIELD, BELT (SHORT)

$6.49

$

In Stock, Qty 20+

0

6

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

7

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

8

Toro 1-403186

IDLER-PULLEY, FLAT
(Superseded to 136-5405)

$48.99

$

In Stock, only 1 left!

0

9

Toro 1-403184

BUSHING-IDLER
(Superseded to 1-413113)

$5.99

$

In Stock, only 1 left!

0

10

Toro 1-403188

SPACER

$14.99

$

Usually ships in 3-6 days

0

11

Toro 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 6

0

12

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

13

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

$

$

Not available

22:1

Toro 1-402107-01

BAFFLE-DOGLEG

$

$

Not available

22:3

Toro 1-403005

DECAL-DANGER

$5.49

$

In Stock, Qty 20+

0

22:6

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

22:7

Toro 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

0

22:8

Toro 98-5130

DECAL-TORQUE, BOLT

$31.99

$

Usually ships in 3-6 days

0

22:9

Toro 99-3943

DECAL-ROUTING, BELT

$7.99

$

In Stock, only 1 left!

0

25

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 15

0

26

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

27

Toro 323-20

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

30

Toro 1-800291

SCREW-HH

$

$

Not available

31

Toro 1-323636

SPACER-SPRING

$

$

Not available

32

Toro 98-3280

SPRING-DEFLECTOR

$28.99

$

Usually ships in 3-6 days

0

33

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

$

$

Not available

34:2

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

36

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0
