30527 - Toro 36" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp (SN: 250000001 - 250999999) (2005) WHEEL DRIVE ASSEMBLY Parts Diagram

36" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp

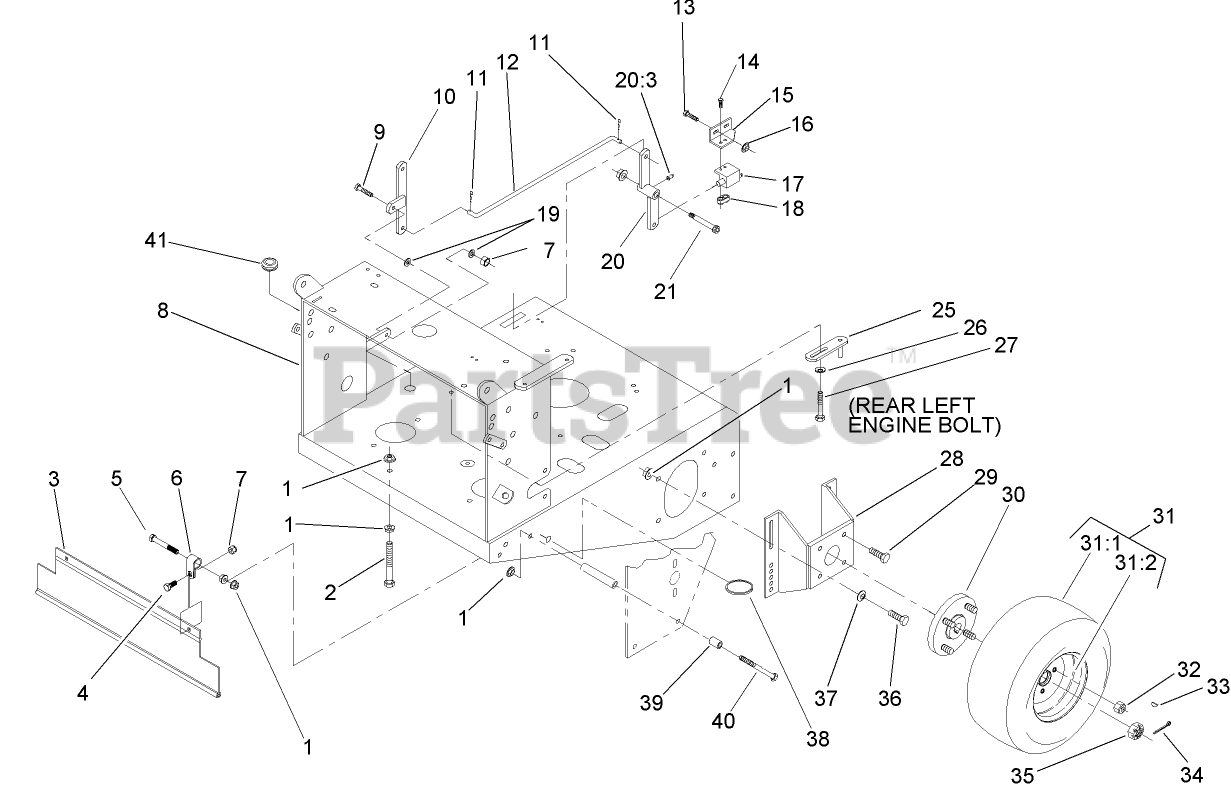

WHEEL DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

2

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

3

Toro 103-2056

Shield-Drag

$67.99

$

In Stock, Qty 7

0

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

6

Toro 1-413510

Clip-Loom

$2.99

$

In Stock, Qty 9

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 103-6495-01

DECK-ENGINE

$

$

Not available

9

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

10

Toro 1-322090-01

BELLCRANK ASM
(Superseded to 116-1737-01)

$12.99

$

Usually ships in 3-6 days

0

11

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

12

Toro 1-323172

Linkage-Engage, Blade

$20.99

$

Usually ships in 3-6 days

0

13

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

15

Toro 1-323213

Bracket-Switch, Blade

$35.99

$

Usually ships in 3-6 days

0

16

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

17

Toro 1-513051

SWITCH-OPEN, NORMALLY

$20.99

$

In Stock, Qty 20+

0

18

Toro 1-633181

PLATE-TAPPED

$6.99

$

In Stock, Qty 8

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 1-322108

Bellcrank ASM

$182.99

$

Usually ships in 3-6 days

0

20:3

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 13

0

21

Toro 1-809062

Screw

$18.99

$

In Stock, Qty 14

0

25

Toro 1-322110

GUIDE-BELT

$13.99

$

In Stock, Qty 8

0

26

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

27

Toro 33114-030

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

28

Toro 1-322162-01

Mount-Motor

$

$

Not available

29

Toro 3234-12

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

30

Toro 1-602997

HUB ASM W/STUDS
(Superseded to 112-9049)

$199.99

$

In Stock, only 2 left!

0

31

WHEEL AND TIRE ASM

Note: Not serviced separately

$

$

Not available

31:1

Toro 1-413474

Tire-Turfmaster

$142.99

$

Usually ships in 3-6 days

0

31:2

Toro 1-603715

Wheel-Rim
(Superseded to 107-2475)

$77.99

$

In Stock, only 2 left!

0

32

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 1 left!

0

33

Toro 1-807019

Key-Woodruff

$20.99

$

In Stock, only 2 left!

0

34

Toro 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 15

0

35

Toro 32136-5

NUT-HEX, SLOTTED

$8.99

$

In Stock, only 2 left!

0

36

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

37

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

38

Toro 1-323366

Ring-Split

$6.99

$

In Stock, Qty 7

0

39

Toro 105-4820

SPACER-SHORT

$2.49

$

Usually ships in 3-6 days

0

40

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

41

Toro 1-543296

GROMMET

$8.99

$

In Stock, only 4 left!

0
