30527 - Toro 36" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp (SN: 230000001 - 230999999) (2003) LOWER CONTROL ASSEMBLY Parts Diagram

36" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp

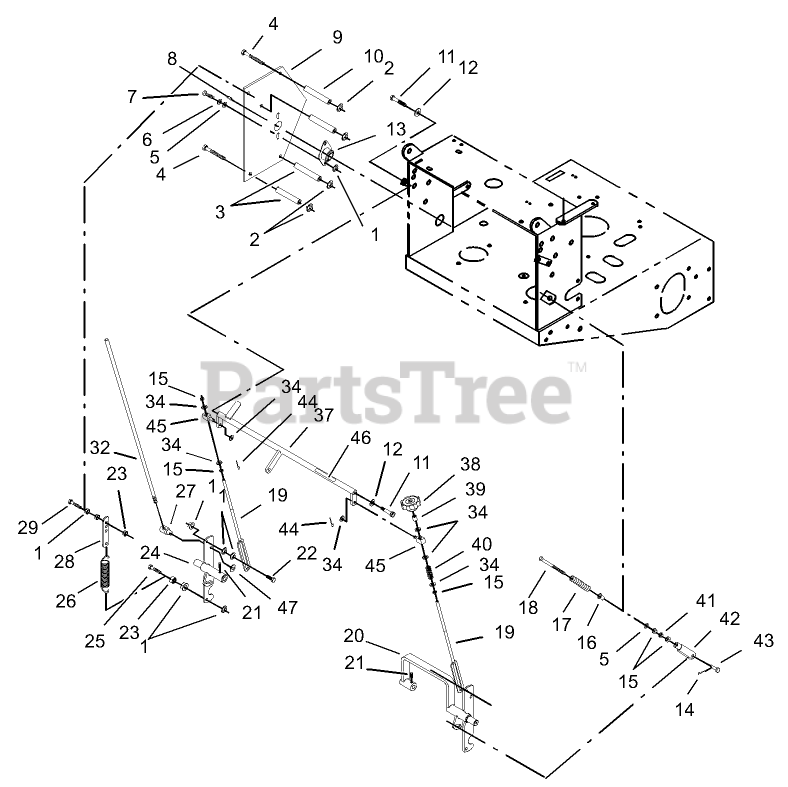

LOWER CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

2

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

3

Toro 1-323197-01

SPACER-SHIELD

$7.99

$

In Stock, Qty 16

0

4

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

0

5

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

8

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

9

Toro 1-413201-01

SHIELD
(Superseded to 110-4897-01)

$103.99

$

Usually ships in 3-6 days

0

10

Toro 1-323195-01

Spacer-Shield

$7.99

$

In Stock, only 2 left!

0

11

Toro 1-809056

SCREW-HSH

$7.99

$

In Stock, only 2 left!

0

12

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

13

Toro 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

14

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

15

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

16

Toro 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, only 4 left!

0

17

Toro 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

18

Toro 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

0

19

Toro 1-413350

LINK-CONTROL, SPEED

$15.99

$

In Stock, only 1 left!

0

20

Toro 103-1191-01

Shaft-Control, RH

$

$

Not available

21

Toro 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 20+

0

22

Toro 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

23

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 103-1190-01

Shaft-Control, LH

$173.99

$

Usually ships in 3-6 days

0

25

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

26

Toro 1-603693

SPRING-EXTENSION

$14.99

$

In Stock, only 3 left!

0

27

Toro 103-1235

SWIVEL-LEVER, DRIVE

$37.99

$

Usually ships in 3-6 days

0

28

Toro 1-613089

TAB-SPRING, EXTENSION

$10.99

$

In Stock, Qty 5

0

29

Toro 1-800016

BOLT-TAP, HH

$1.49

$

Usually ships in 3-6 days

0

32

Toro 1-413219

ROD-LEVER, DRIVE

$27.99

$

Usually ships in 3-6 days

0

34

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

37

Toro 1-412203-01

Crank-Control, Speed

$158.99

$

Usually ships in 3-6 days

0

38

Toro 1-413151

KNOB-TRACKING

$9.49

$

In Stock, Qty 5

0

39

Toro 1-603903

SPACER

$5.49

$

In Stock, only 1 left!

0

40

Toro 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

41

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

42

Toro 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

43

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

44

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

45

Toro 1-603676

SWIVEL-ADJUSTABLE, SHORT
(Superseded to 126-8571)

$5.49

$

In Stock, only 2 left!

0

46

Toro 105-4109

DECAL-TRACKING

$11.99

$

Usually ships in 3-6 days

0

47

Toro 32151-47

RING-RETAINING

$2.99

$

In Stock, only 3 left!

0
