30527 - Toro 36" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp (SN: 230000001 - 230999999) (2003) FRONT CASTOR, BELT TENSION, AND BLADE BRAKE SYSTEM ASSEMBLY Parts Diagram

36" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp

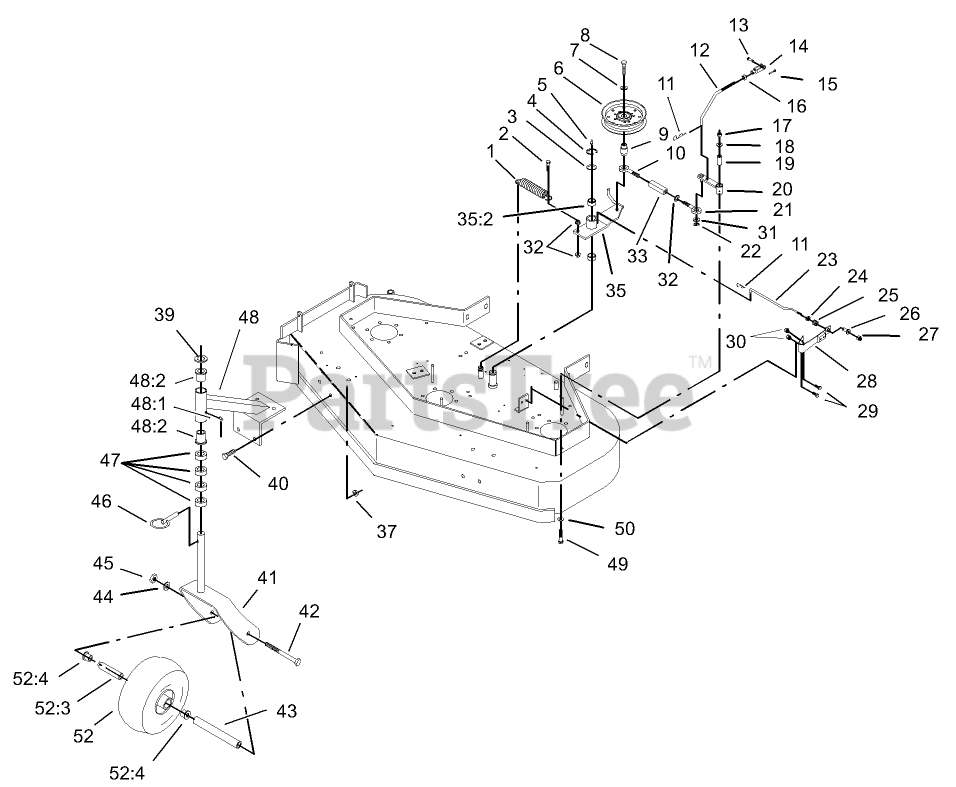

FRONT CASTOR, BELT TENSION, AND BLADE BRAKE SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 1-323071

SPRING-EXTENSION

$15.99

$

In Stock, Qty 20+

0

2

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

3

Toro 1-303352

WASHER-SPINDLE

$2.99

$

In Stock, only 3 left!

0

4

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 9

0

5

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

6

Toro 1-603843

PULLEY-IDLER
(Superseded to 132-4718)

$34.99

$

In Stock, only 3 left!

0

7

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

8

Toro 702809

SCREW-HH

$5.49

$

In Stock, only 4 left!

0

9

Toro 1-303434

BUSHING-ENGAGEMENT

$14.99

$

In Stock, only 1 left!

0

10

Toro 1-303348

EYEBOLT-THREAD, LH

$6.49

$

In Stock, Qty 9

0

11

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

12

Toro 1-323174

ARM-LINKAGE, ASSIST

$28.99

$

Usually ships in 3-6 days

0

13

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 3 left!

0

14

Toro 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 2 left!

0

15

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

16

Toro 3219-2

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 1-403179

TUBE-PIVOT

$18.99

$

In Stock, only 1 left!

0

20

Toro 1-322235

ARM-ASSIST

$53.99

$

Usually ships in 3-6 days

0

21

Toro 1-303238

EYEBOLT-THREAD, RH

$6.49

$

In Stock, Qty 7

0

22

Toro 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, Qty 6

0

23

Toro 1-323715

ROD-BRAKE

$25.99

$

In Stock, Qty 5

0

24

Toro 1-323748

RING-PUSH ON

$1.99

$

In Stock, Qty 7

0

25

Toro 1-323747

SPRING-COMPRESSION

$2.99

$

In Stock, Qty 10

0

26

Toro 1-323746

SPACER-FLANGED

$1.49

$

In Stock, only 3 left!

0

27

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 1-324372

PAD AND SPRING ASM

$66.99

$

In Stock, only 1 left!

0

29

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

31

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

32

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

33

Toro 1-303236

BODY-TURNBUCKLE

$21.99

$

In Stock, only 3 left!

0

35

Toro 103-3600

Idler Arm ASM

$129.99

$

Usually ships in 3-6 days

0

35:2

Toro 1-323729

SLEEVE-BEARING

$5.49

$

Usually ships in 3-6 days

0

37

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

39

Toro 1-513338

WASHER-FLAT

$4.49

$

In Stock, Qty 20+

0

40

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

41

Toro 1-322145-01

FORK
(Superseded to 116-7942-01)

$93.99

$

In Stock, only 1 left!

0

42

Toro 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

43

Toro 1-513547

SPACER

$12.99

$

In Stock, Qty 6

0

44

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

45

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 19

0

46

Toro 1-809020

PIN

$11.99

$

In Stock, only 2 left!

0

47

Toro 1-303314

SPACER-CASTER

$6.49

$

In Stock, Qty 8

0

48

Toro 1-302203

SUPPORT ASM

$292.99

$

Usually ships in 3-6 days

0

48:1

Toro 302-52

FITTING-GREASE

$6.49

$

In Stock, Qty 20+

0

48:2

Toro 1-303514

BEARING-FLANGED

$12.99

$

In Stock, Qty 19

0

49

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 7

0

50

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

52

Toro 1-513648

WHEEL AND TIRE ASM

$91.99

$

In Stock, only 2 left!

0

52:3

Toro 1-513809

BEARING

$34.99

$

In Stock, Qty 8

0

52:4

Toro 1-513810

BUSHING

$5.99

$

In Stock, only 2 left!

0
