30526 - Toro 48" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp (SN: 230000001 - 230999999) (2003) ENGINE AND FUEL SYSTEM ASSEMBLY Parts Diagram

48" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp

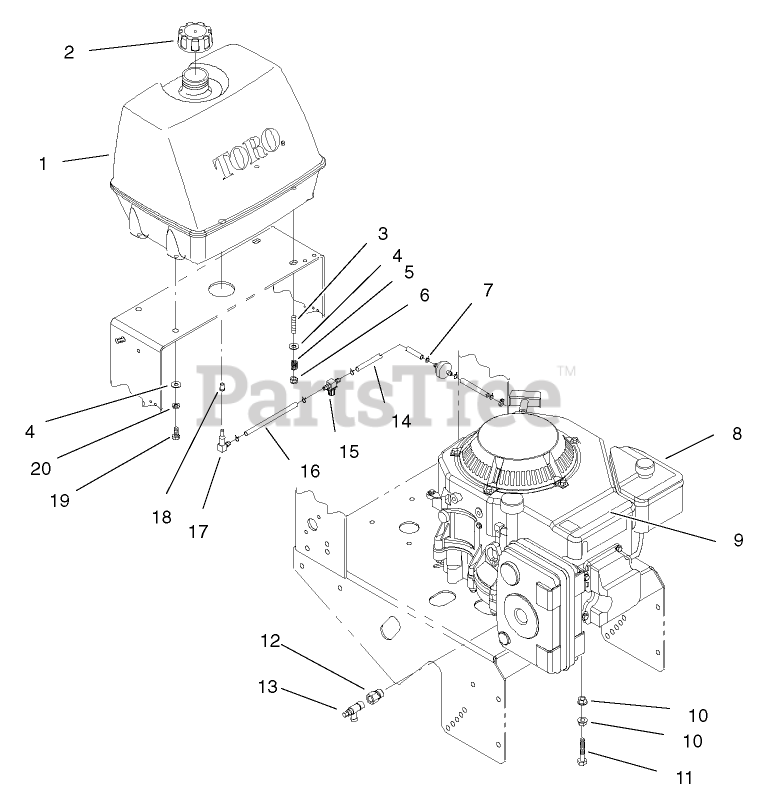

ENGINE AND FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 1-323551

TANK-FUEL
(Superseded to 106-0730)

$

$

Not available

2

Toro 1-513508

CAP-FUEL

$27.99

$

In Stock, only 1 left!

0

3

Toro 1-633023

STUD

$6.49

$

Usually ships in 3-6 days

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

6

Toro 3296-47

NUT-LOCK, NI

$3.99

$

Usually ships in 3-6 days

0

7

Toro 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

0

8

Engine-Kawasaki, Fh451v-Bs04

Note: Not serviced separately

$

$

Not available

9

Toro 63-8440

DECAL-SURFACE, HOT

$

$

Not available

10

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

11

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 15

0

12

Toro 103-1966

Adapter

$18.99

$

In Stock, only 1 left!

0

13

Toro 103-1965

Valve-Drain, Oil

$55.99

$

In Stock, only 1 left!

0

14

Toro 1-303022

HOSE-FUEL

$5.49

$

In Stock, only 3 left!

0

15

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 8

0

16

Toro 1-603955

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

17

Toro 1-543277

ELBOW-TANK, FUEL

$11.99

$

In Stock, Qty 8

0

18

Toro 1-513645

BUSHING-VALVE, FUEL
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

19

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

20

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0
