30524 - Toro 36" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp (SN: 230000001 - 230999999) (2003) WHEEL DRIVE ASSEMBLY Parts Diagram

36" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp

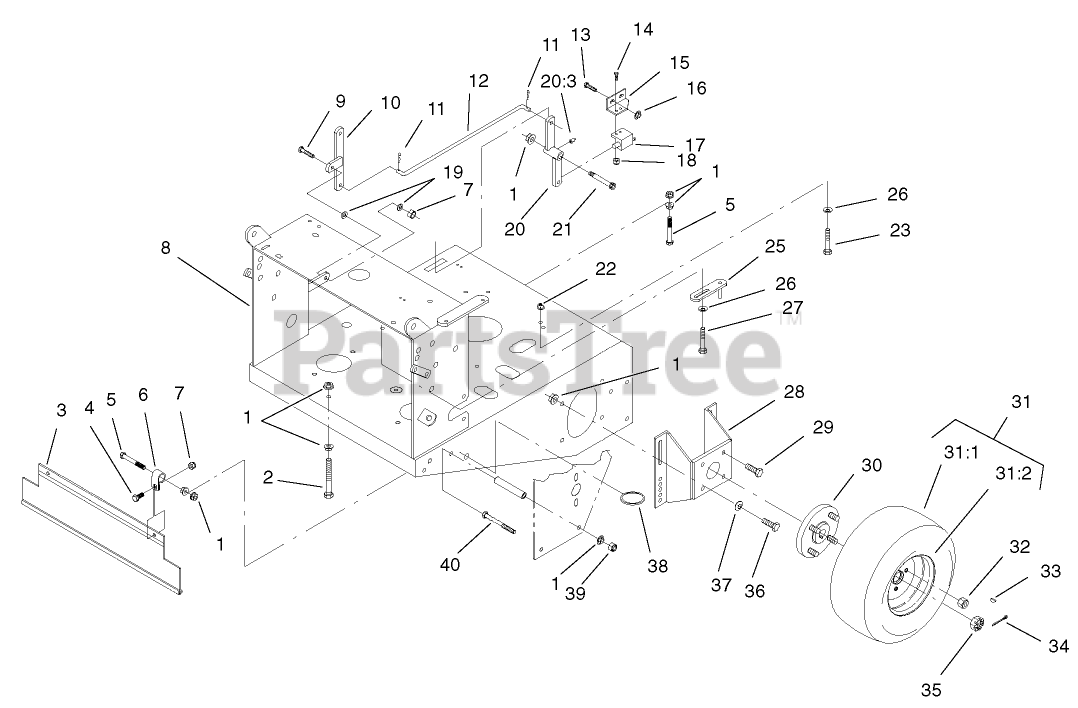

WHEEL DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

2

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

3

Toro 103-2056

Shield-Drag

$63.99

$

In Stock, Qty 8

0

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

5

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 14

0

6

Toro 1-413510

Clip-Loom

$2.99

$

In Stock, Qty 13

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 103-2908-01

Deck-Rear

$

$

Not available

9

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

10

Toro 1-322090-01

BELLCRANK ASM
(Superseded to 116-1737-01)

$11.99

$

Usually ships in 3-6 days

0

11

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

12

Toro 1-323172

Linkage-Engage, Blade

$19.99

$

Usually ships in 3-6 days

0

13

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

15

Toro 1-323213

Bracket-Switch, Blade

$33.99

$

Usually ships in 3-6 days

0

16

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

17

Toro 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

18

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 1-322108

Bellcrank ASM

$172.99

$

Usually ships in 3-6 days

0

20:3

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

21

Toro 1-809062

Screw

$17.99

$

In Stock, only 2 left!

0

22

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

23

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 1-322110

GUIDE-BELT

$12.99

$

In Stock, Qty 8

0

26

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

27

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

28

Toro 103-2289-01

Mount-Motor

$137.99

$

Usually ships in 3-6 days

0

29

Toro 3234-12

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

30

Toro 1-602997

HUB ASM W/STUDS
(Superseded to 112-9049)

$188.99

$

In Stock, only 1 left!

0

31

WHEEL AND TIRE ASM

$

$

Not available

31:1

Toro 1-413474

Tire-Turfmaster

$134.99

$

Usually ships in 3-6 days

0

31:2

Toro 1-603715

Wheel-Rim
(Superseded to 107-2475)

$77.99

$

In Stock, only 2 left!

0

32

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

33

Toro 1-807019

Key-Woodruff

$18.99

$

In Stock, only 2 left!

0

34

Toro 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 18

0

35

Toro 1-803040

Nut-Slotted

$

$

Not available

36

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

37

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

38

Toro 1-323366

Ring-Split

$6.49

$

In Stock, only 2 left!

0

39

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

40

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16
