30524 - Toro 36" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp (SN: 230000001 - 230999999) (2003) HYDRAULIC ASSEMBLY Parts Diagram

36" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp

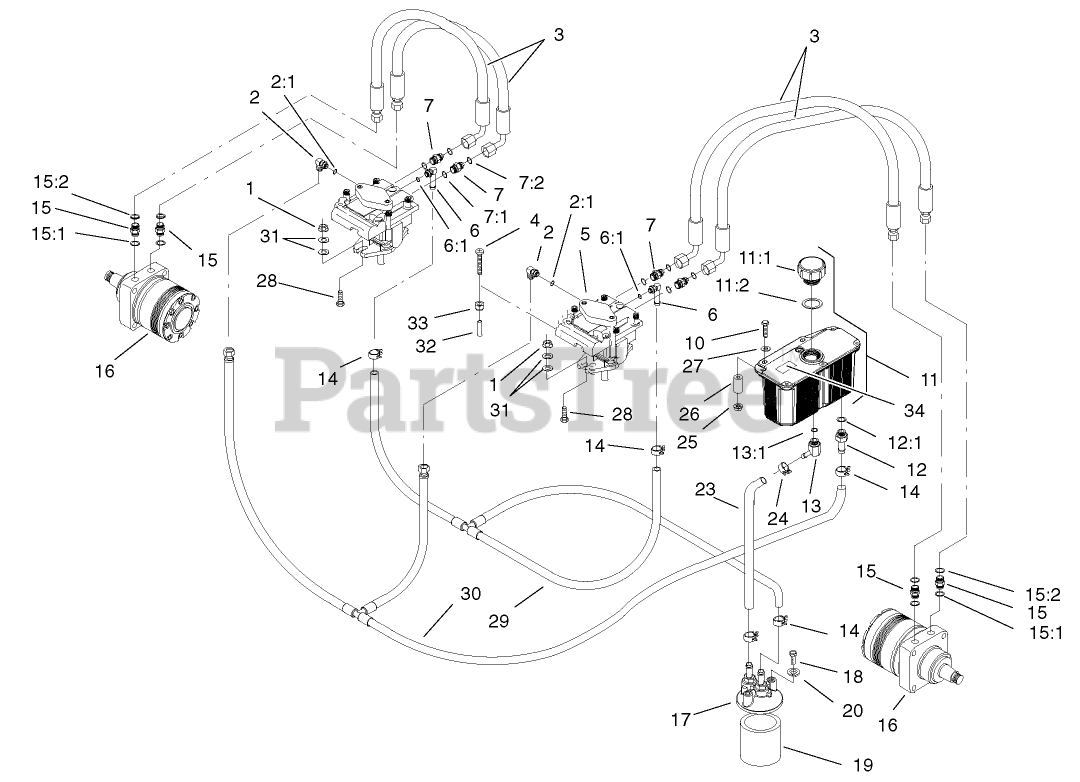

HYDRAULIC ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

2

Toro 1-513840

FITTING-90 DEG

$29.99

$

In Stock, only 1 left!

0

2:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

3

Toro 1-403102

HOSE-PRESSURE, HIGH

$115.99

$

In Stock, Qty 5

0

4

Toro 1-801063

SCREW

$5.49

$

Usually ships in 3-6 days

0

5

Toro 1-613042

Pump

$1387.99

$

Usually ships in 3-6 days

0

6

Toro 1-603989

FITTING

$36.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

7

Toro 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 15

0

7:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

7:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

10

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

11

Toro 103-1946

Reservoir-HYD

$

$

Not available

11:1

Toro 103-1948

CAP-RESERVOIR, HYD

$27.99

$

In Stock, Qty 20+

0

11:2

Toro 103-1949

GASKET-CAP

$

$

Not available

12

Toro 103-1801

Adapter-Straight

$30.99

$

In Stock, only 1 left!

0

12:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

13

Toro 103-1807

FITTING-BARBED, 45 DEG

$28.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

14

Toro 103-1988

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

15

Toro 1-603991

Fitting-Straight

$21.99

$

In Stock, only 2 left!

0

15:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

15:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

16

Toro 1-603718

HYD MOTOR ASM

$1206.99

$

In Stock, only 2 left!

0

17

Toro 103-2889

Filter Head ASM

$107.99

$

Usually ships in 3-6 days

0

18

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 1-633750

FILTER-OIL, HYD

$26.99

$

In Stock, Qty 15

0

20

Toro 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

23

Toro 103-2959

Hose-Charge

$8.49

$

Usually ships in 3-6 days

0

24

Toro 103-1716

Clamp-Hose

$1.49

$

In Stock, Qty 11

0

25

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

26

Toro 103-2191

Spacer

$7.99

$

Usually ships in 3-6 days

0

27

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

29

Toro 103-2057

HYD Hose ASM

$53.99

$

Usually ships in 3-6 days

0

30

Toro 103-2073

HYD Hose ASM

$68.99

$

Usually ships in 3-6 days

0

31

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 1-613073

GRIP-VALVE, DUMP

$5.99

$

Usually ships in 3-6 days

0

33

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

34

Toro 1-523552

DECAL-TANK, HYD

$1.99

$

In Stock, Qty 15

0
