30524 - Toro 36" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp (SN: 220000001 - 220999999) (2002) SPINDLE ASSEMBLY Parts Diagram

36" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp

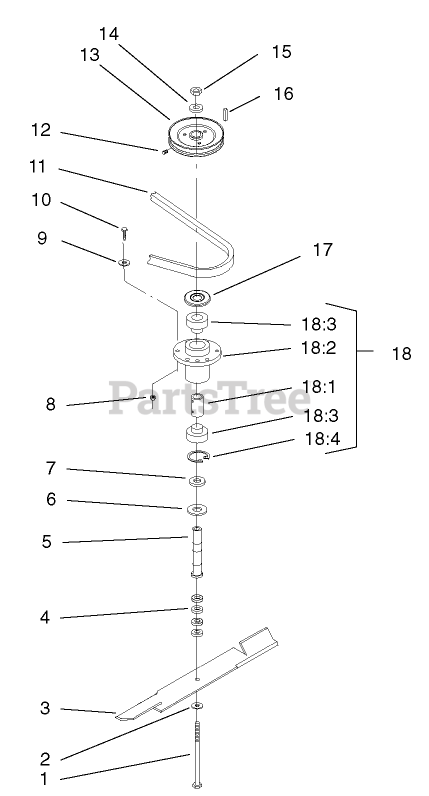

SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 1-800861

SCREW-CAP, HH

$19.99

$

In Stock, only 2 left!

0

2

Toro 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

3

Toro 103-2528

Blade-Notched

$31.99

$

In Stock, Qty 5

0

3

Toro 103-2508

BLADE-LIFT, LOW

$34.99

$

In Stock, Qty 13

0

4

Toro 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

5

Toro 1-323529

TUBE-SPINDLE, SHORT

$88.99

$

In Stock, only 2 left!

0

6

Toro 1-633573

GUARD-BEARING, BOTTOM

$5.49

$

In Stock, Qty 8

0

7

Toro 1-323533

SPACER-PULLEY/BEARING

$5.49

$

In Stock, Qty 11

0

8

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

10

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

11

Toro 106-2741

V-BELT

$253.99

$

Usually ships in 3-6 days

0

12

Toro 1-803310

SCREW-SET

$2.99

$

In Stock, only 1 left!

0

13

Toro 1-403183

SHEAVE

$69.99

$

In Stock, only 1 left!

0

14

Toro 1-323339

WASHER-RETAINER, SHEAVE

$5.49

$

Usually ships in 3-6 days

0

15

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

16

Toro 1-807267

KEY

$2.99

$

In Stock, only 2 left!

0

17

Toro 103-1330

Guard-Bearing, Top

$5.49

$

In Stock, only 2 left!

0

18

Toro 1-634619

CUTTER HOUSING ASM
(Superseded to 107-4065)

$159.99

$

In Stock, only 1 left!

0

18:1

Toro 1-323528

SPACER-BEARING

$9.49

$

In Stock, Qty 13

0

18:2

Toro 1-323532

HOUSING-SPINDLE
(Superseded to 103-7975)

$62.99

$

Usually ships in 3-6 days

0

18:3

Toro 1-513016

BEARING

$82.99

$

In Stock, Qty 20+

0

18:4

Toro 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 16

0
