30523 - Toro 48" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 15hp (SN: 230000001 - 230005000) (2003) SPINDLE ASSEMBLY Parts Diagram

48" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 15hp

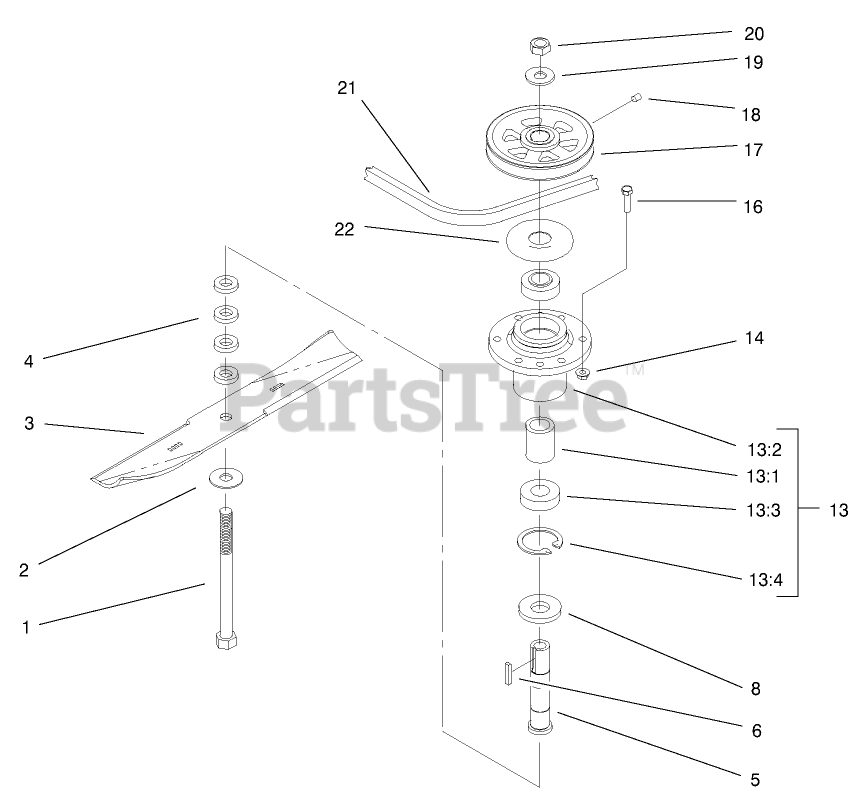

SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 1-800861

SCREW-CAP, HH

$19.99

$

In Stock, only 2 left!

0

2

Toro 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

3

Toro 103-2507

BLADE-LIFT, LOW

$27.99

$

In Stock, only 4 left!

0

3

Toro 103-2527

BLADE-NOTCHED

$31.99

$

In Stock, Qty 20+

0

4

Toro 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

5

Toro 1-323529

TUBE-SPINDLE, SHORT

$88.99

$

In Stock, only 2 left!

0

6

Toro 1-807267

KEY

$2.99

$

In Stock, only 2 left!

0

8

Toro 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

13

Housing-Cutter

Note: Not serviced separately

$

$

Not available

13:1

Toro 1-323532

HOUSING-SPINDLE
(Superseded to 103-7975)

$62.99

$

Usually ships in 3-6 days

0

13:2

Toro 103-2477

BEARING-JACKSHAFT

$59.99

$

In Stock, Qty 11

0

13:3

Toro 103-2534

Spacer-Bearing

$9.49

$

In Stock, Qty 5

0

13:4

Toro 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 16

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

17

Toro 1-403183

SHEAVE

$69.99

$

In Stock, only 3 left!

0

18

Toro 1-803310

SCREW-SET

$2.99

$

In Stock, only 1 left!

0

19

Toro 1-323339

WASHER-RETAINER, SHEAVE

$5.49

$

Usually ships in 3-6 days

0

20

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

21

Toro 1-403171

BELT-DRIVE, BLADE

$142.99

$

In Stock, only 2 left!

0

22

Toro 103-1330

Guard-Bearing, Top

$5.49

$

In Stock, only 2 left!

0
