30523 - Toro 48" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 15hp (SN: 220000001 - 220999999) (2002) VALVE/CAMSHAFT ASSEMBLY KAWASAKI FH451V-BS04 Parts Diagram

48" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 15hp

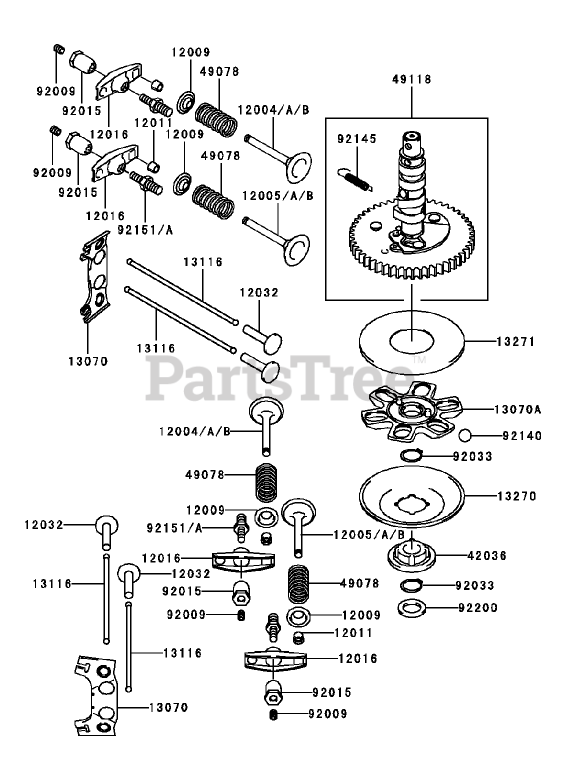

VALVE/CAMSHAFT ASSEMBLY KAWASAKI FH451V-BS04 Parts Diagram

  • Title
12004A

Kawasaki 12004-7003

Valve-Intake
(Superseded to 12004-7001)

Note: Obtain Parts From Kawasaki

$16.99

$

In Stock, Qty 20+

0

12005A

Kawasaki 12005-7003

Valve-Exhaust
(Superseded to 12005-7001)

Note: Obtain Parts From Kawasaki

$29.99

$

In Stock, Qty 20+

0

12009

Kawasaki 12009-7001

RETAINER-SPRING, VALVE

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 20+

0

12011

Kawasaki 12011-2056

Collet

Note: Obtain Parts From Kawasaki

$2.99

$

In Stock, Qty 20+

0

12016

Kawasaki 12016-7001

Arm-Rocker
(Superseded to 12016-7008)

Note: Obtain Parts From Kawasaki

$7.99

$

In Stock, Qty 12

0

12032

Kawasaki 12032-7001

Tappet

Note: Obtain Parts From Kawasaki

$8.99

$

In Stock, Qty 20+

0

13070

Kawasaki 13070-7001

Guide

Note: Obtain Parts From Kawasaki

$4.99

$

In Stock, Qty 20+

0

13070A

Kawasaki 13070-7004

Guide
(Superseded to 13070-7002)

Note: Obtain Parts From Kawasaki

$5.99

$

In Stock, Qty 20+

0

13116

Kawasaki 13116-2057

Rod-Push

Note: Obtain Parts From Kawasaki

$4.99

$

In Stock, Qty 20+

0

13270

Kawasaki 13270-7002

Plate
(Superseded to 13271-7021)

Note: Obtain Parts From Kawasaki

$5.49

$

In Stock, Qty 18

0

13271

Kawasaki 13271-7007

Plate
(Superseded to 13270-7003)

Note: Obtain Parts From Kawasaki

$5.49

$

In Stock, Qty 10

0

42036

Toro 42036-7001

Sleeve

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

49078

Kawasaki 49078-7001

SPRING-VALVE, ENGINE
(Superseded to 49078-2064)

Note: Obtain Parts From Kawasaki

$6.99

$

In Stock, Qty 20+

0

49118

Kawasaki 49118-7002

Camshaft-Comp
(Superseded to 12043-7001)

Note: Obtain Parts From Kawasaki

$

$

Not available

92009

Kawasaki 92009-2341

Screw

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 20+

0

92015

Kawasaki 92015-2253

Nut

Note: Obtain Parts From Kawasaki

$4.49

$

In Stock, Qty 20+

0

92033

Kawasaki 92033-7001

Ring-Snap
(Superseded to 92033-0727)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 20+

0

92140

Kawasaki 92140-7002

Ball
(Superseded to 92140-7005)

Note: Obtain Parts From Kawasaki

$

$

Not available

92145

Kawasaki 92145-7001

Spring
(Superseded to 921451653)

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, Qty 20+

0

92151A

Kawasaki 92151-7019

Bolt
(Superseded to 92153-7019)

Note: Obtain Parts From Kawasaki

$2.49

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-7001

Washer

Note: Obtain Parts From Kawasaki

$1.99

$

In Stock, Qty 11

0
