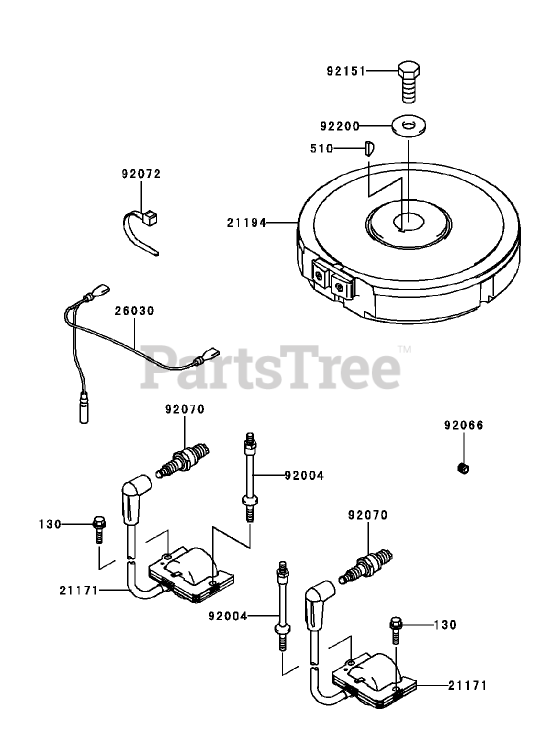

30523 - Toro 48" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 15hp (SN: 220000001 - 220999999) (2002) ELECTRIC EQUIPMENT ASSEMBLY KAWASAKI FH451V-BS04 Parts Diagram

48" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 15hp

ELECTRIC EQUIPMENT ASSEMBLY KAWASAKI FH451V-BS04 Parts Diagram

  • Title

21171

Toro 21171-7001

Ignition Coil ASM

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

21194

Kawasaki 21194-7002

Flywheel
(Superseded to 21194-7027)

Note: Obtain Parts From Kawasaki

$159.99

$

In Stock, only 1 left!

0

26030

Kawasaki 26030-7001

Harness

Note: Obtain Parts From Kawasaki

$10.99

$

In Stock, Qty 8

0

92004

Toro 92004-2147

Stud

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

92066

Kawasaki 92066-7002

Plug
(Superseded to 92066-0881)

Note: Obtain Parts From Kawasaki

$4.49

$

In Stock, Qty 6

0

92070

Kawasaki 92070-7003

SPARK PLUG (R C J 8 Y, SOLID)

Note: Obtain Parts From Kawasaki

$4.99

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-7003

Band

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, only 1 left!

0

92151

Kawasaki 92151-2097

BOLT (12X30)
(Superseded to 921547003)

Note: Obtain Parts From Kawasaki

$4.99

$

In Stock, Qty 20+

0

92200

Kawasaki 92200-7002

Washer

Note: Obtain Parts From Kawasaki

$3.49

$

In Stock, Qty 7

0

130

Kawasaki 130B0620

Bolt-Flanged (6X20)
(Superseded to 130AA0620)

Note: Obtain Parts From Kawasaki

$3.49

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

Key-Woodruff

Note: Obtain Parts From Kawasaki

$3.49

$

In Stock, Qty 20+

0
