30523 - Toro 48" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 15hp (SN: 220000001 - 220999999) (2002) CONTROL EQUIPMENT ASSEMBLY KAWASAKI FH451V-BS04 Parts Diagram

48" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 15hp

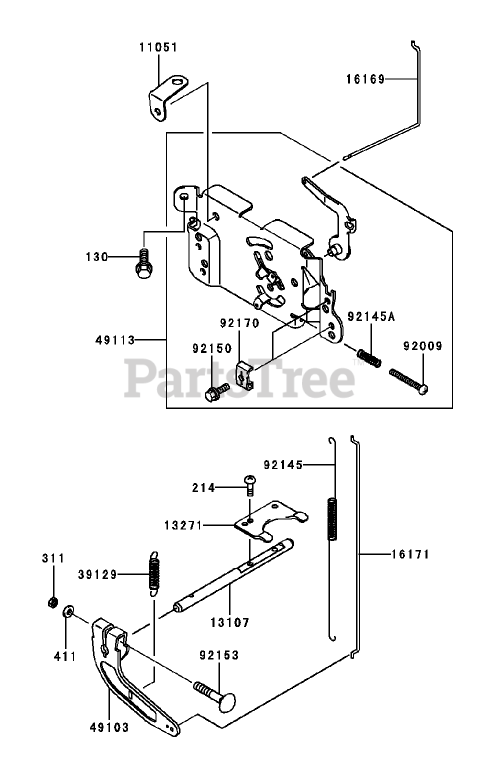

CONTROL EQUIPMENT ASSEMBLY KAWASAKI FH451V-BS04 Parts Diagram

  • Title
11051

Kawasaki 11051-7008

Bracket

Note: Obtain Parts From Kawasaki

$5.99

$

Usually ships in 2-5 days

0

13107

Kawasaki 13107-7010

Shaft
(Superseded to 13107-0750)

Note: Obtain Parts From Kawasaki

$12.99

$

In Stock, Qty 5

0

13271

Kawasaki 13271-7018

Plate
(Superseded to 13271-7032)

Note: Obtain Parts From Kawasaki

$3.99

$

In Stock, Qty 6

0

16169

Kawasaki 16169-7001

Link-Choke
(Superseded to 16169-7010)

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 10

0

16171

Kawasaki 16171-7001

Link
(Superseded to 16171-0039)

Note: Obtain Parts From Kawasaki

$4.49

$

In Stock, Qty 8

0

39129

Kawasaki 39129-7003

Spring-Governor
(Superseded to 39129-7002)

Note: Obtain Parts From Kawasaki

$4.99

$

In Stock, Qty 20+

0

49103

Kawasaki 49103-7004

Arm-Governor
(Superseded to 49103-7002)

Note: Obtain Parts From Kawasaki

$7.99

$

In Stock, Qty 12

0

49113

Kawasaki 49113-7024

Panel-Control
(Superseded to 49113-7054)

Note: Obtain Parts From Kawasaki

$26.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-7007

SCREW (4X35)

Note: Obtain Parts From Kawasaki

$0.99

$

Usually ships in 2-5 days

0

92145

Kawasaki 92145-7003

Spring

Note: Obtain Parts From Kawasaki

$2.99

$

In Stock, Qty 20+

0

92145A

Kawasaki 92145-7005

Spring

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 12

0

92150

Kawasaki 92150-2182

BOLT (5X18)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-7005

BOLT (6X35)
(Superseded to 92153-7033)

Note: Obtain Parts From Kawasaki

$

$

Not available

92170

Kawasaki 92170-7001

Clamp

Note: Obtain Parts From Kawasaki

$2.99

$

In Stock, Qty 20+

0

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 20+

0

214

Kawasaki 214B0408

SCREW-PAN (4X8)
(Superseded to 214AA0408)

Note: Obtain Parts From Kawasaki

$3.99

$

In Stock, Qty 15

0

311

Toro 311B0600

NUT-HEX (6mm)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

411

Kawasaki 411B0600

Washer-Plain (6mm)
(Superseded to 411AA0600)

Note: Obtain Parts From Kawasaki

$4.49

$

In Stock, Qty 12

0
