30521 - Toro 36" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 12.5hp (SN: 230000001 - 230999999) (2003) ENGINE AND FUEL SYSTEM ASSEMBLY Parts Diagram

36" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 12.5hp

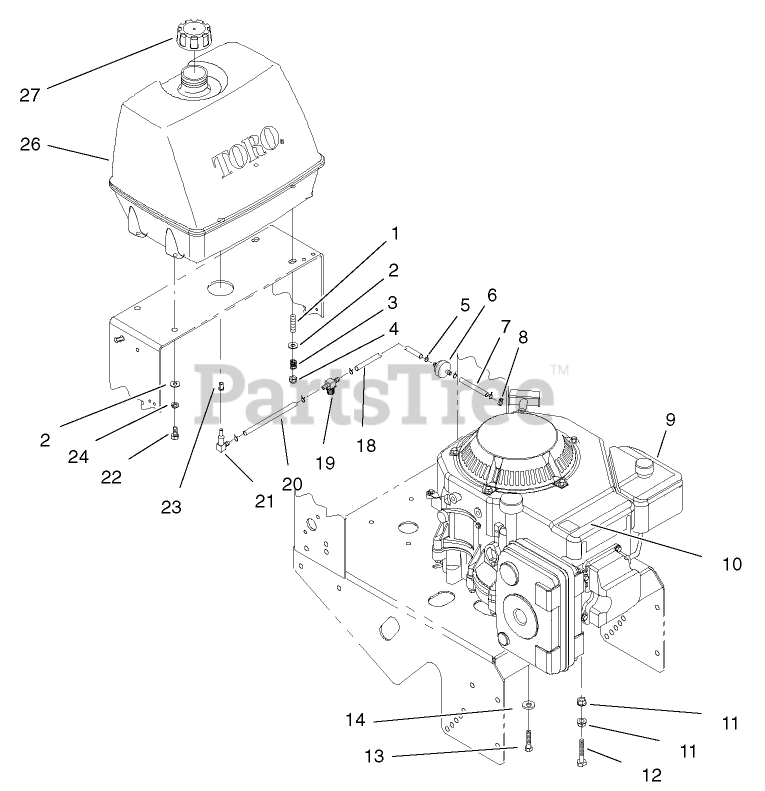

ENGINE AND FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 1-633023

STUD

$6.49

$

Usually ships in 3-6 days

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

4

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 6

0

5

Toro 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

0

6

Toro 1-303197

FILTER-FUEL
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 13

0

7

Toro 1-603776

HOSE-LINE, FUEL

$

$

Not available

8

Toro 1-303308

CLAMP-HOSE

$5.49

$

Usually ships in 3-6 days

0

9

Engine-Kawasaki, Fb460v-Ms14

Note: Not serviced separately

$

$

Not available

10

Toro 63-8440

DECAL-SURFACE, HOT

$

$

Not available

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 17

0

13

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

14

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

18

Toro 1-303022

HOSE-FUEL

$5.49

$

In Stock, only 3 left!

0

19

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 9

0

20

Toro 1-603955

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

21

Toro 1-543277

ELBOW-TANK, FUEL

$11.99

$

In Stock, Qty 8

0

22

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 1-513645

BUSHING-VALVE, FUEL
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

24

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

26

Toro 1-323551

TANK-FUEL
(Superseded to 106-0730)

$

$

Not available

27

Toro 1-513508

CAP-FUEL

$27.99

$

In Stock, only 1 left!

0

99

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

Note: Not illustrated

$0.99

$

In Stock, Qty 8

0
