30520 - Toro 32" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 12.5hp (SN: 230000001 - 230005000) (2003) DECK ASSEMBLY Parts Diagram

32" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 12.5hp

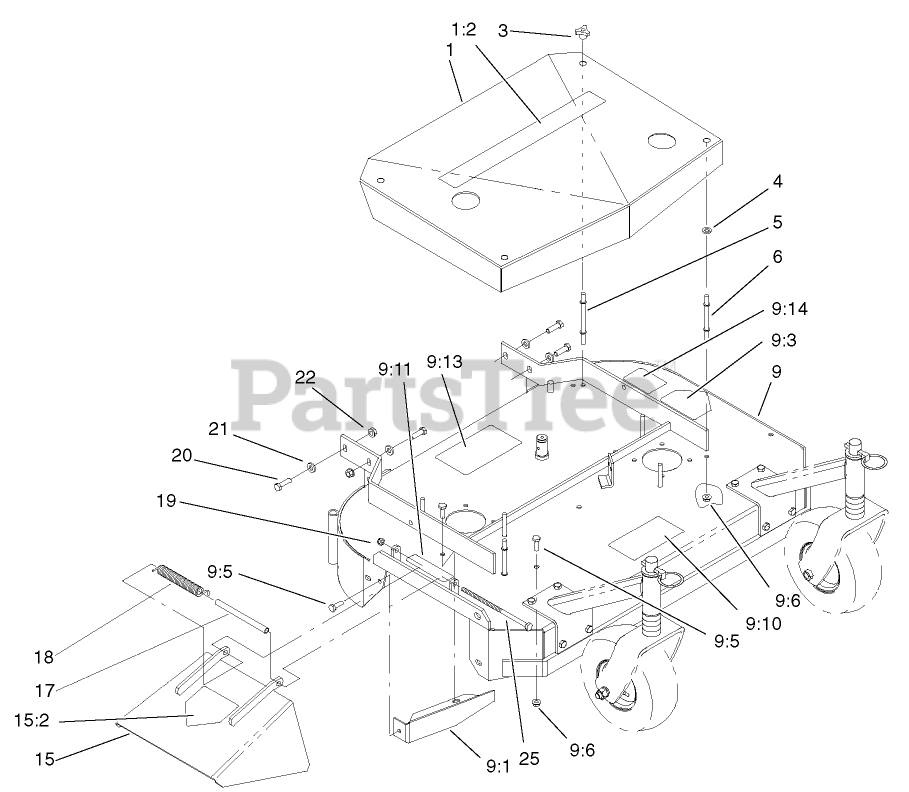

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 1-324407

SHIELD-BELT

$416.99

$

Usually ships in 3-6 days

0

1:2

Toro 100-6482

DECAL-PROLINE 32

$

$

Not available

3

Toro 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

4

Toro 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

5

Toro 1-303536

STUD-SHIELD, BELT (LONG)

$7.99

$

In Stock, Qty 20+

0

6

Toro 1-303537

STUD-SHIELD, BELT (SHORT)

$6.49

$

In Stock, Qty 20+

0

9

Toro 105-4675

DECK ASM

$

$

Not available

9:1

Toro 1-302189-01

BAFFLE-DOGLEG

$49.99

$

Usually ships in 3-6 days

0

9:3

Toro 1-403005

DECAL-DANGER

$5.49

$

In Stock, Qty 20+

0

9:5

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

9:6

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9:10

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

9:11

Toro 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

0

9:13

Toro 98-3296

DECAL-ROUTING, BELT

$22.99

$

Usually ships in 3-6 days

0

9:14

Toro 98-5130

DECAL-TORQUE, BOLT

$31.99

$

Usually ships in 3-6 days

0

15

Toro 1-304256

CHUTE-DISCHARGE

$212.99

$

In Stock, only 1 left!

0

15:2

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

17

Toro 98-3281

SPACER-SPRING

$

$

Not available

18

Toro 98-3280

SPRING-DEFLECTOR

$28.99

$

Usually ships in 3-6 days

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

22

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

24

Toro 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

0

25

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0
