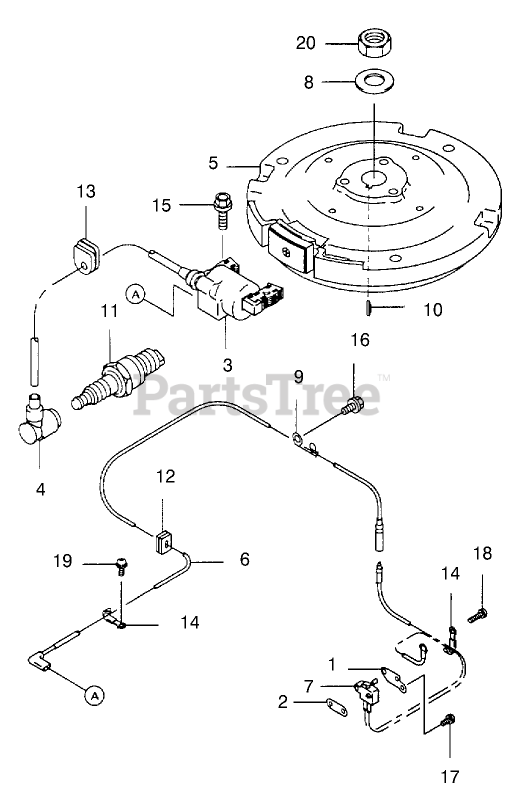

30520 - Toro 32" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 12.5hp (SN: 220000001 - 220999999) (2002) ELECTRIC EQUIPMENT (KAWASAKI FB460V-MS14) Parts Diagram

32" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 12.5hp

ELECTRIC EQUIPMENT (KAWASAKI FB460V-MS14) Parts Diagram

  • Title
1

Kawasaki 13183-2373

Plate

Note: Obtain Parts From Kawasaki

$2.99

$

Usually ships in 2-5 days

0

2

Toro 13183-2374

Plate

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

3

Kawasaki 21121-2086

Coil-Ignition

Note: Obtain Parts From Kawasaki

$108.99

$

In Stock, only 1 left!

0

4

Kawasaki 21130-2060

Cap-Spark
(Superseded to M88905)

Note: Obtain Parts From Kawasaki

$14.99

$

In Stock, Qty 8

0

5

Toro 21194-2324

Flywheel-Comp

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

6

Toro 26011-2326

Wire-Lead L530

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

7

Toro 27010-2167

Switch

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

8

Kawasaki 92022-2178

Washer

Note: Obtain Parts From Kawasaki

$2.99

$

Usually ships in 2-5 days

0

9

Kawasaki 92037-2011

Clamp

Note: Obtain Parts From Kawasaki

$1.99

$

Usually ships in 2-5 days

0

10

Kawasaki 92038-2094

Key

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, only 2 left!

0

11

Toro 92070-2105

Plug-Spark BMR4A (NGK)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

12

Kawasaki 92071-2099

Grommet

Note: Obtain Parts From Kawasaki

$

$

Not available

13

Kawasaki 92071-2100

Grommet

Note: Obtain Parts From Kawasaki

$1.99

$

In Stock, only 1 left!

0

14

Kawasaki 92170-2029

Clamp

Note: Obtain Parts From Kawasaki

$6.49

$

Usually ships in 2-5 days

0

15

Toro 130b0520

Bolt-Flange

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

16

Kawasaki 130B0610

BOLT-FLANGED (6X10)
(Superseded to 130AA0610)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 20+

0

17

Kawasaki 223B0410

Screw-Pan Ws Cros
(Superseded to 223AA0410)

Note: Obtain Parts From Kawasaki

$0.99

$

Usually ships in 2-5 days

0

18

Kawasaki 233B0416

SCREW (4X16)
(Superseded to 233AA0416)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 6

0

19

Toro 234b0408

Screw

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

20

Kawasaki 314G1800

Nut

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, only 2 left!

0
