30518 - Toro 32" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 13hp (SN: 250000001 - 250999999) (2005) CYLINDER AND CRANKCASE ASSEMBLY KAWASAKI FH381V-AS25 Parts Diagram

32" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 13hp

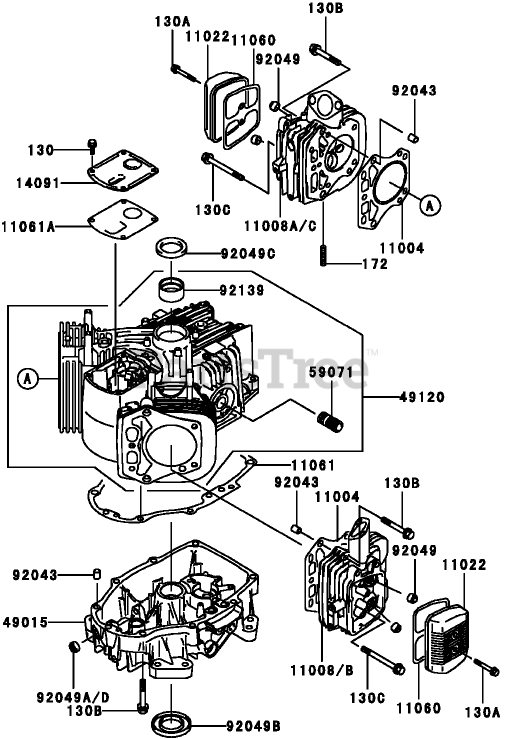

CYLINDER AND CRANKCASE ASSEMBLY KAWASAKI FH381V-AS25 Parts Diagram

  • Title

11004

Kawasaki 11004-7008

GASKET-HEAD
(Superseded to 11004-7018)

Note: Obtain parts from www.kawpowerepc.com

$12.99

$

In Stock, only 2 left!

0

11008

Kawasaki 11008-7011

HEAD-COMP-CYLINDER, No.2
(Superseded to 11008-7021)

Note: Obtain parts from www.kawpowerepc.com

$234.99

$

In Stock, only 1 left!

0

11008A

Toro 11008-7017

HEAD-COMP-CYLINDER, No.1

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

11008B

Kawasaki 11008-7021

HEAD-CYLINDER, No. 2
(Superseded to 11008-7011)

Note: Obtain parts from www.kawpowerepc.com

$234.99

$

In Stock, only 1 left!

0

11008C

Kawasaki 11008-7022

HEAD-CYLINDER, No. 1
(Superseded to 11008-7010)

Note: Obtain parts from www.kawpowerepc.com

$233.99

$

In Stock, only 1 left!

0

11022

Toro 11022-7003

Case-Rocker

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

11060

Kawasaki 11060-7001

GASKET-CASE, ROCKER

Note: Obtain parts from www.kawpowerepc.com

$6.99

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-7007

GASKET-COVER, CRANKCASE

Note: Obtain parts from www.kawpowerepc.com

$13.99

$

In Stock, only 1 left!

0

11061A

Kawasaki 11061-7008

GASKET-BREATHER
(Superseded to 99996-6099)

Note: Obtain parts from www.kawpowerepc.com

$11.99

$

In Stock, Qty 6

0

14091

Kawasaki 14091-7007

COVER

Note: Obtain parts from www.kawpowerepc.com

$8.49

$

Usually ships in 2-5 days

0

49015

Kawasaki 49015-7032

COVER-CRANKCASE
(Superseded to 49015-7080)

Note: Obtain parts from www.kawpowerepc.com

$173.99

$

Usually ships in 2-5 days

0

49120

Kawasaki 49120-7015

CRANKCASE

Note: Obtain parts from www.kawpowerepc.com

$549.99

$

In Stock, only 1 left!

0

59071

Kawasaki 59071-2079

Joint

Note: Obtain parts from www.kawpowerepc.com

$6.49

$

In Stock, Qty 8

0

92043

Kawasaki 92043-7001

Pin

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 7

0

92049

Kawasaki 92049-7001

SEAL-OIL, R V C2 (6X11X10.2)

Note: Obtain parts from www.kawpowerepc.com

$8.49

$

Usually ships in 2-5 days

0

92049A

Kawasaki 92049-7005

SEAL-OIL, S O (8X14X5 H S)
(Superseded to 920497019)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 20+

0

92049B

Kawasaki 92049-7015

SEAL-OIL, S D (35X62X8 L HSH)

Note: Obtain parts from www.kawpowerepc.com

$8.49

$

In Stock, Qty 20+

0

92049C

Kawasaki 92049-7016

SEAL-OIL, S D (35X48X8 R HSH)

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, Qty 20+

0

92049D

Kawasaki 92049-7019

SEAL-OIL, S O (8X14X5 HSH)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 20+

0

92139

Kawasaki 92139-7002

BUSHING
(Superseded to 92139-7008)

Note: Obtain parts from www.kawpowerepc.com

$13.99

$

In Stock, only 1 left!

0

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 15

0

130A

Kawasaki 130B0640

Bolt-Flanged (6X40)
(Superseded to 130AA0640)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, only 3 left!

0

130B

Toro 130T0850

Bolt-Flanged (8X50)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

130C

Kawasaki 130T0875

Bolt-Flanged (8X75)
(Superseded to 130CA0875)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 9

0

172

Toro 172G0818

Bolt-Stud (8X18)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable
