30510 - Toro 48" Snow Thrower Adapter Kit for Groundsmaster 52 (SN: 000080001 - 000089999) (1978) CHUTE ASSEMBLY Parts Diagram

48" Snow Thrower Adapter Kit for Groundsmaster 52

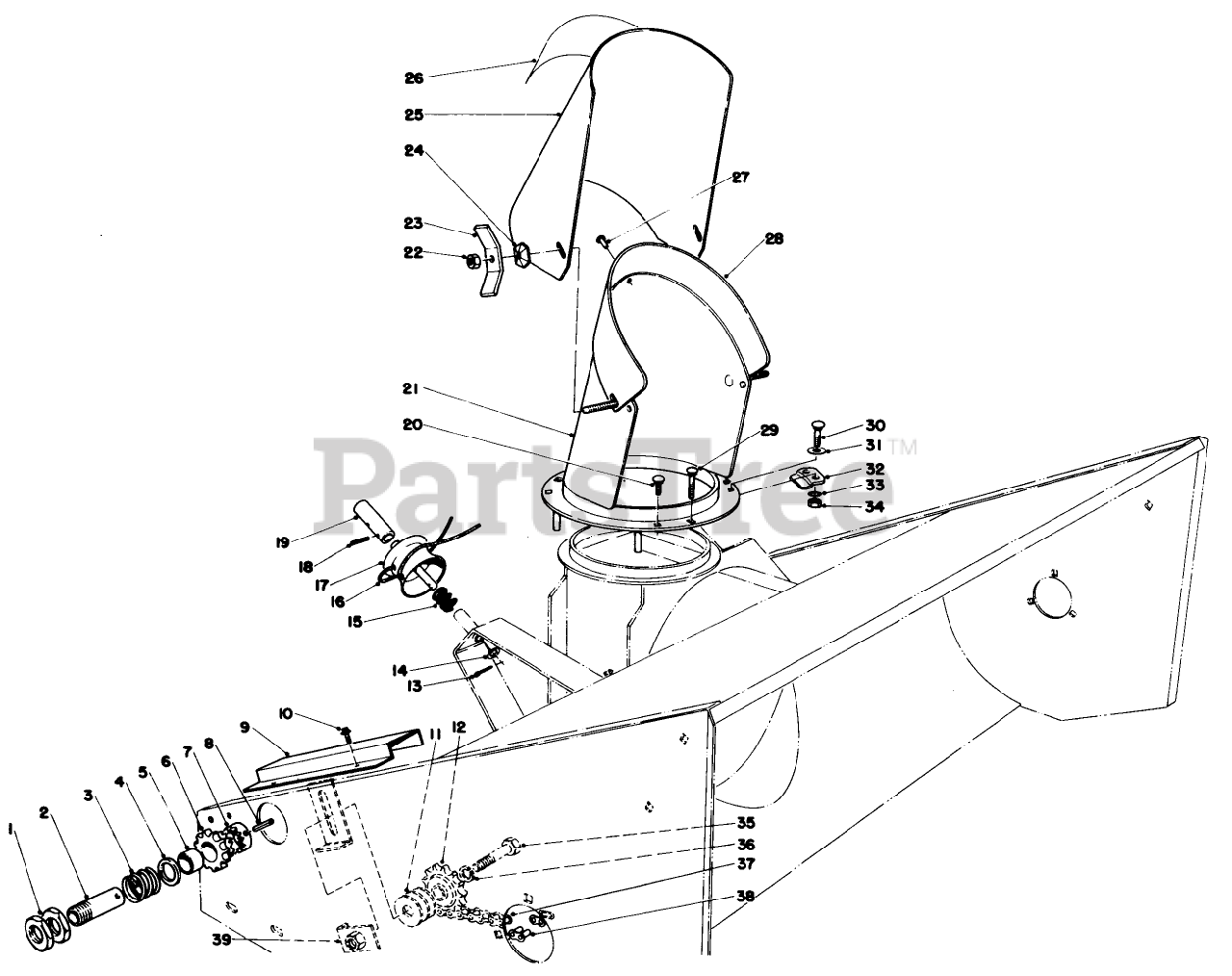

CHUTE ASSEMBLY Parts Diagram

  • Title
1

Nut-Thin

$

$

Not available

2

Clutch Sleeve

$

$

Not available

3

Spring Compression

$

$

Not available

6

Clutch Sprocket

$

$

Not available

7

Clutch Collar

$

$

Not available

8

Roll Pin

$

$

Not available

9

Toro 32-1620

Chain Cover

$

$

Not available

10

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

11

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

12

Toro 30-0090

IDLER SPRKT (60016)

$220.99

$

Usually ships in 3-6 days

0

13

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

15

Toro 30-1060

Spring-Compression

$

$

Not available

16

Toro 37-5820

Cable

$

$

Not available

17

Toro 32-1880

Pulley

$

$

Not available

18

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

19

Toro 37-5270

Tube-Connector

$

$

Not available

20

Toro 3229-10

SCREW-CARR

$1.49

$

In Stock, only 4 left!

0

21

Toro 37-5390

Spout

$

$

Not available

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 30-0720

Wing Nut

$

$

Not available

24

Toro 3290-238

WASHER-LOCK

$3.99

$

Usually ships in 3-6 days

0

25

Toro 37-5910

Deflector

$

$

Not available

26

Toro 29-6350

Decal-Warning
(Superseded to 54-9910)

$

$

Not available

27

Toro 3290-56

.125 X 1/8 POP RIVET

$

$

Not available

28

Toro 37-5930

Seal-Plastic

$

$

Not available

29

Toro 3229-2

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

30

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

31

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 30-0710

Clamp-Spout

$

$

Not available

33

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

34

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

35

Toro 327-6

SCREW-HH

$13.99

$

In Stock, only 1 left!

0

36

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

37

Toro 30-0160

ROLLER CHAIN (60023)

$

$

Not available

38

Toro 2710-11

LINK-CHAIN

$6.49

$

In Stock, only 1 left!

0

39

Toro 30-0450

NUT PLATE WA (60095)

$

$

Not available

Toro 37-5640

Slip Clutch (Incl. Ref. #1-8)

Note: Not illustrated

$

$

Not available
