30510 - Toro 48" Snow Thrower Adapter Kit for Groundsmaster 52 (SN: 000080001 - 000089999) (1978) ADAPTER KIT MODEL NO. 30510 Parts Diagram

48" Snow Thrower Adapter Kit for Groundsmaster 52

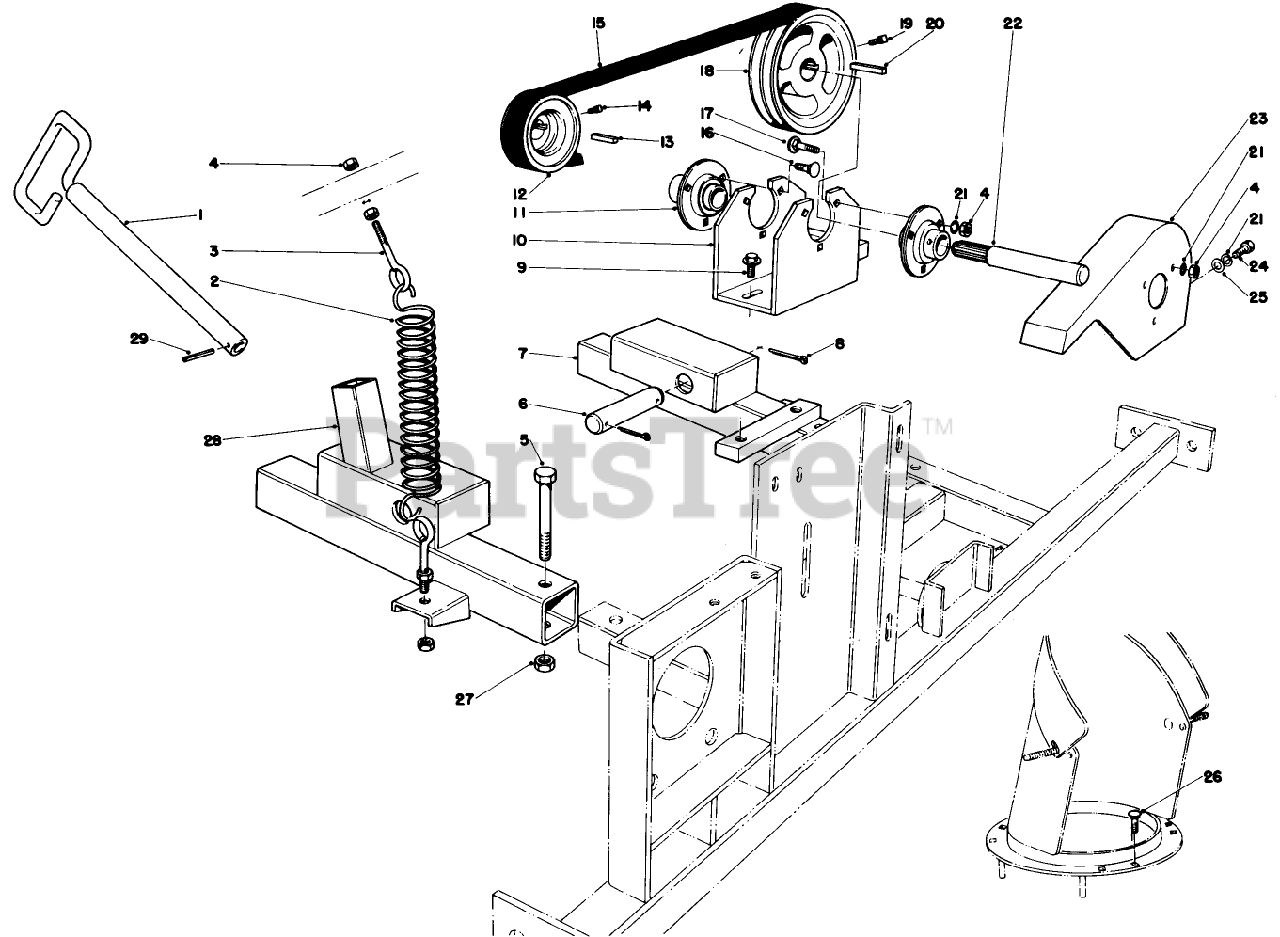

ADAPTER KIT MODEL NO. 30510 Parts Diagram

  • Title
1

Toro 37-5460

Chute Pivot Handle

$

$

Not available

2

Toro 30-1020

Extension Spring

$

$

Not available

3

Toro 30-0980

Eyebolt

$

$

Not available

4

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

5

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

6

$

$

Not available

7

Toro 37-5620

Adapter L.H.

$

$

Not available

8

Toro 3272-52

3/32 X 1-3/4 LG COTTER

$

$

Currently unavailable

9

Toro 3234-12

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

10

Toro 37-5610

JACKSHAFT SUPPORT

$

$

Not available

11

Toro 30-0170

Bearing

$

$

Not available

12

Toro 37-5070

JACKSHAFT PULLEY

$

$

Not available

13

$

$

Not available

14

Toro 3242-6

SCREW-SET, SQH

$4.99

$

Usually ships in 3-6 days

0

15

Toro 37-5650

V-BELT

$

$

Not available

16

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 16

0

17

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 13

0

18

Toro 37-5340

JACKSHAFT PULLEY

$

$

Not available

19

Toro 3242-6

SCREW-SET, SQH

$4.99

$

Usually ships in 3-6 days

0

20

$

$

Currently unavailable

21

Toro 3253-24

WASHER-LOCK/SP

$0.99

$

Usually ships in 3-6 days

0

22

Toro 37-5050

Jackshaft
(Superseded to 39-4370)

$742.99

$

Usually ships in 3-6 days

0

23

Toro 37-5580

Belt Shield

$

$

Not available

24

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

26

Toro 3229-10

SCREW-CARR

$1.49

$

In Stock, only 4 left!

0

27

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

28

Toro 37-5600

Adapter R.H.

$

$

Not available

29

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

Toro 37-5790

Reflector

Note: Not illustrated

$

$

Not available

Toro 32104-42

1/4-20 X 3/4 THDG SCR
(Superseded to 32104-95)

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0
