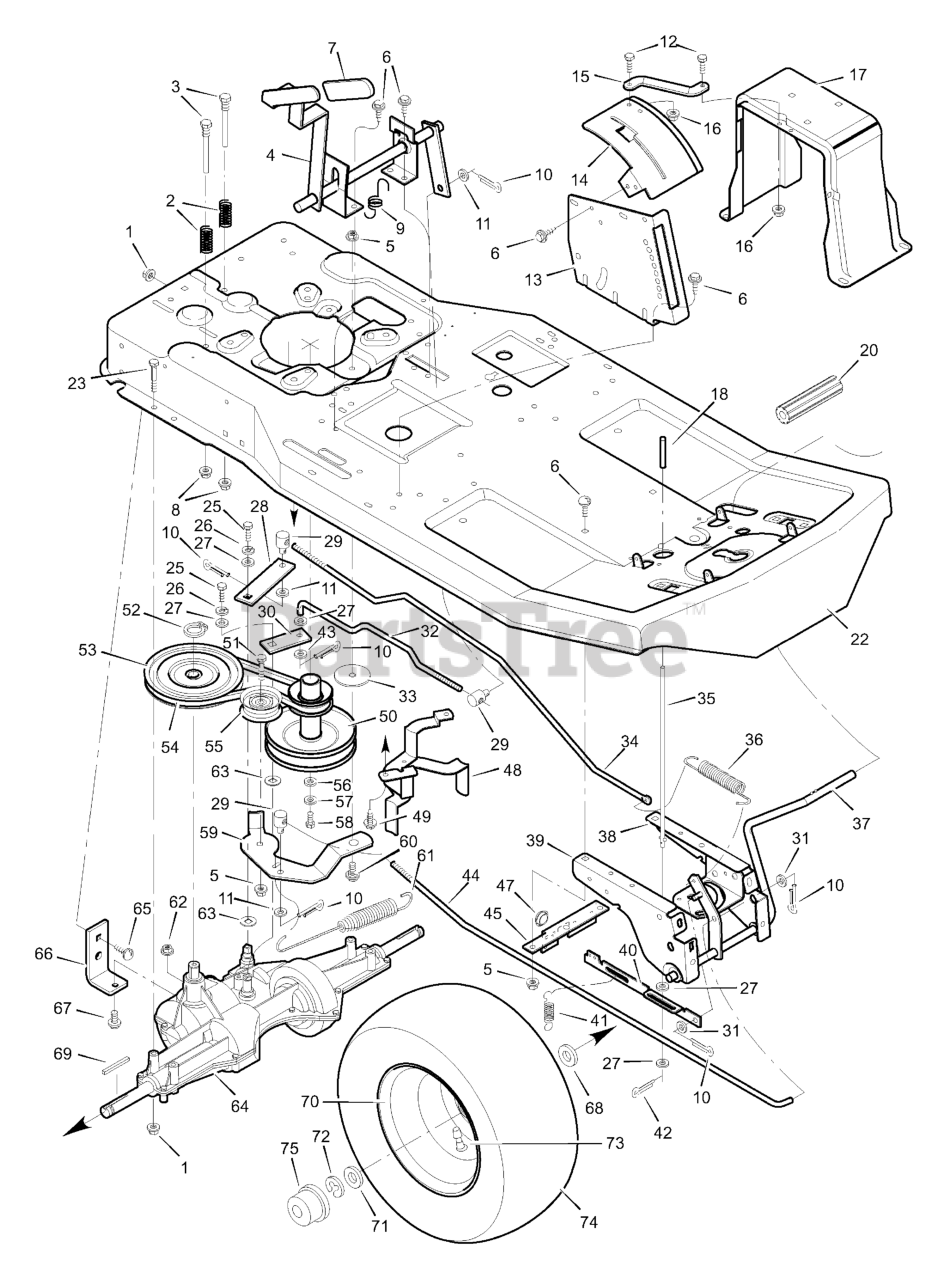

30504x92A - Murray 30" Rear-Engine Riding Mower (1999) Motion Drive Parts Diagram

30" Rear-Engine Riding Mower

Motion Drive Parts Diagram

  • Title

1

Murray 015X88MA

Locknut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

2

Murray 0164X1MA

Spring, Compression

$12.99

$

Usually ships in 2-12 days

0

3

Murray 055826

Guide, Belt

$

$

Not available

4

Murray 56610E700

Shifter Assembly

$

$

Currently unavailable

5

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

6

Murray 26X267MA

Screw

$4.99

$

In Stock, Qty 20+

0

7

Murray 091573

Grip, Shift Lever

$

$

Not available

8

Murray 15X115MA

Hex Nut

$3.99

$

Usually ships in 2-12 days

0

9

Murray 165X100

Spring, Extension

$4.49

$

Usually ships in 2-12 days

0

10

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

11

Murray 017X53MA

Washer
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

12

Murray 001X38MA

Bolt, Hex

$4.49

$

In Stock, Qty 18

0

13

Murray 056595E700

Plate, Index

$25.99

$

Usually ships in 2-12 days

0

14

Murray 056606E700

Gate, Shift

$

$

Not available

15

Murray 056529E700

Brace, Shift Gate

$

$

Currently unavailable

16

Murray 015X89MA

Locknut, Flange

$4.49

$

Usually ships in 2-12 days

0

17

Murray 056517E700

Support, Seat

$

$

Currently unavailable

18

Murray 055873

Grip, Parking Brake

$

$

Currently unavailable

20

Murray 055825MA

Pedal, Rubber

$1.99

$

Usually ships in 2-12 days

0

22

Murray 056611E726

Frame Assembly

$

$

Currently unavailable

23

Murray 01X124

Bolt, Hex

$

$

Currently unavailable

25

Murray 01X145MA

Bolt, Hex

$4.49

$

Usually ships in 2-12 days

0

26

Murray 018X32MA

Lockwasher

$3.49

$

Usually ships in 2-12 days

0

27

Murray 017X36MA

Washer

$

$

Not available

28

Murray 056500 Z

Yoke, Brake

$

$

Currently unavailable

29

Murray 021920ZMA

Nut, Adjusting

$17.99

$

Usually ships in 2-12 days

0

30

Murray 056505 Z

Yoke, Shift

$

$

Currently unavailable

31

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

32

Murray 056591 Z

Rod, Shift

$

$

Currently unavailable

33

Murray 17X174MA

Washer, Hardened
(Superseded to 17X174ZMA)

$6.49

$

Usually ships in 2-12 days

0

34

Murray 056530 Z

Rod, Brake

$

$

Currently unavailable

35

Murray 056566 Z

Rod, Parking Brake

$

$

Currently unavailable

36

Murray 165X85MA

Spring, Extension

$

$

Not available

37

Murray 056511E700

Lever, Pedal

$71.99

$

Usually ships in 2-12 days

0

38

Murray 56224E700

Plate, Left Suspension

$7.99

$

Usually ships in 2-12 days

0

39

Murray 056023E700

Plate, Right Suspension

$

$

Currently unavailable

40

Murray 056565 Z

Link, Parking Brake

$

$

Currently unavailable

41

Murray 165X107MA

Spring, Extension

$3.49

$

Usually ships in 2-12 days

0

42

Murray 030X50

Pin, Cotter

$3.99

$

In Stock, Qty 20+

0

43

Murray 017X46 Z

Washer

$

$

Currently unavailable

44

Murray 056531 Z

Rod, Clutch

$

$

Currently unavailable

45

Murray 56227E700

Stop, Parking Brake

$6.99

$

Usually ships in 2-12 days

0

47

Murray 056623MA

Grommet

$3.99

$

Usually ships in 2-12 days

0

48

Murray 056215 Z

Guide, Belt

$

$

Currently unavailable

49

Murray 026X49MA

Screw

$4.49

$

In Stock, only 2 left!

0

50

Murray 092247SEMA

Pulley Assembly, Stack

$

$

Not available

51

Murray 01X111MA

Bolt, Hex

$4.49

$

In Stock, only 1 left!

0

52

Murray 0011X7MA

Ring, Retainer

$3.99

$

In Stock, Qty 5

0

53

Murray 056562MA

Pulley, Drive

$95.99

$

Usually ships in 2-12 days

0

54

Murray 037X65MA

Belt, Motion Drive

$18.99

$

In Stock, only 1 left!

0

55

Murray 056526MA

Pulley, Idler

$

$

Not available

56

Murray 17X170MA

Washer

$

$

Not available

57

Murray 019X35MA

Lockwasher

$4.99

$

In Stock, Qty 11

0

58

Murray 01X140MA

Bolt, Hex

$5.49

$

In Stock, Qty 15

0

59

Murray 1001034E700MA

Bracket, Idler

$

$

Not available

60

Murray 009X42MA

Bolt, Shoulder
(Superseded to 704206)

$7.99

$

In Stock, only 1 left!

0

61

Murray 165X81MA

Spring, Extension

$56.99

$

Usually ships in 2-12 days

0

62

Murray 015X43MA

Locknut, Hex
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

63

Murray 17X148MA

Washer

$3.99

$

Usually ships in 2-12 days

0

64

Transaxle, Dana Model 4450-1 **

$

$

Not available

65

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 19

0

66

Murray 056503 Z

Bracket, Transaxle

$

$

Currently unavailable

67

Murray 01X139MA

Bolt, Hex

$3.49

$

In Stock, Qty 5

0

68

Murray 17X160MA

Washer

$4.99

$

In Stock, Qty 20+

0

69

Murray 056534MA

Key, Square

$4.99

$

Usually ships in 2-12 days

0

70

Murray 92308601

Wheel & Tire Assembly

$195.99

$

Usually ships in 2-12 days

0

71

Murray 17X195MA

Washer

$4.99

$

In Stock, only 4 left!

0

72

Murray 0011X3MA

E-Ring

$5.49

$

In Stock, Qty 20+

0

73

Murray 024373MA

Valve Stem

Note: (Included with Ref. No. 70)

$

$

Not available

74

Murray 024393MA

Tire *

Note: (Included with Ref. No. 70)

$116.99

$

Usually ships in 2-12 days

0

75

Murray 094618MA

Hub Cap

Note: (Optional)

$5.99

$

In Stock, only 4 left!

0
