30503x11A - Murray 30" Rear-Engine Riding Mower (2000) Mower Housing Suspension Parts Diagram

30" Rear-Engine Riding Mower

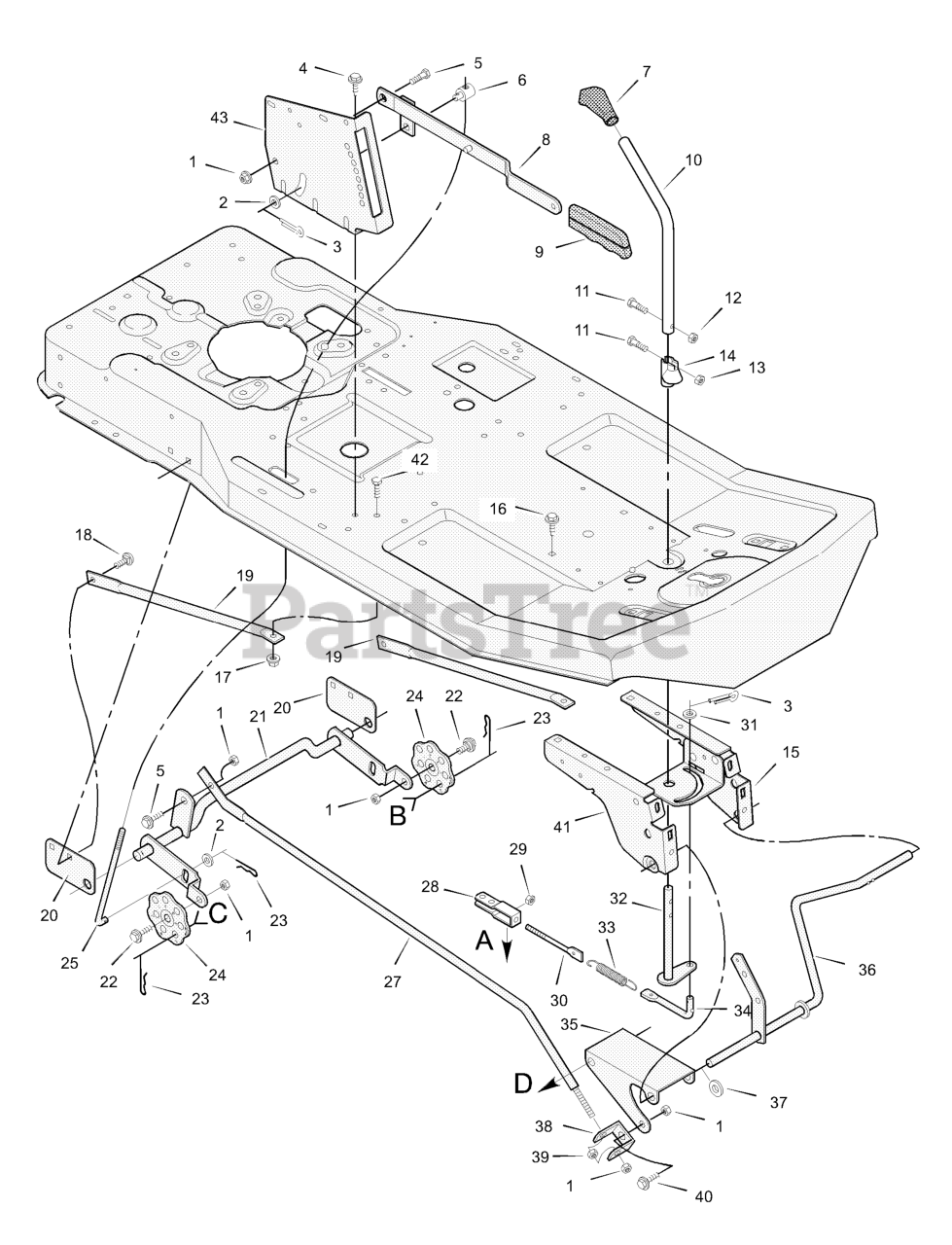

Mower Housing Suspension Parts Diagram

  • Title
1

Murray MU15X84

Locknut, Flange

$

$

Currently unavailable

2

$

$

Currently unavailable

3

Murray MU30X20

PIN, Cotter

$

$

Currently unavailable

4

$

$

Currently unavailable

5

Murray 0MU9X9 Z

Bolt, Shoulder

$

$

Currently unavailable

6

Murray MU21920

NUT, Adjusting

$

$

Currently unavailable

7

Murray MU92698

GRIP, Blade Control

$

$

Currently unavailable

8

Murray MU56031E700

LEVER ASSEMBLY, Lift

$

$

Currently unavailable

9

Murray MU91573

GRIP, Lift Lever

$

$

Currently unavailable

10

Murray MU55928 Z

LEVER, PTO

$

$

Currently unavailable

11

Murray MU1X76

BOLT, Hex

$

$

Currently unavailable

12

Murray MU15X66

Locknut

$

$

Currently unavailable

13

Murray MU15X89

Locknut, Flange

$

$

Currently unavailable

14

Murray MU55853

Cam, Blade Control

$

$

Currently unavailable

15

Murray MU56224E700

Plate, Left Suspension

$

$

Currently unavailable

16

$

$

Currently unavailable

17

Murray MU15X88

Locknut, Flange

$

$

Currently unavailable

18

Murray MU2X64

BOLT, Carriage

$

$

Currently unavailable

19

Murray MU55326

Strut, Frame

$

$

Currently unavailable

20

Murray MU55270E700

Plate, Mounting

$

$

Currently unavailable

21

Murray MU55346E700

ROD Assembly, Rear Suspension

$

$

Currently unavailable

22

Murray 0MU9X4

Bolt, Shoulder

$

$

Currently unavailable

23

Murray MU31X4

PIN, Hair

$

$

Currently unavailable

24

Murray MU55344 Z

Plate, Adjusting

$

$

Currently unavailable

25

Murray MU24839 Z

ROD, Lifter

$

$

Currently unavailable

27

Murray MU55957E700

ROD, Suspension

$

$

Currently unavailable

28

$

$

Currently unavailable

29

Murray MU15X2

NUT, Hex

$

$

Currently unavailable

30

Murray MU55271 Z

Link, Blade Drive

$

$

Currently unavailable

31

$

$

Currently unavailable

32

Murray MU55930E700

ROD and Arm Assembly

$

$

Currently unavailable

33

Murray MU165X67

SPRING, Extension

$

$

Currently unavailable

34

Murray MU55179 Z

Link, Front Deck

$

$

Currently unavailable

35

Murray MU55139E700

BRACKET, Front Suspension

$

$

Currently unavailable

36

Murray MU56511E700

LEVER, Pedal

$

$

Currently unavailable

37

$

$

Currently unavailable

38

$

$

Currently unavailable

39

Murray MU15X73

Locknut, Hex

$

$

Currently unavailable

40

Murray MU9X17

BOLT, Shoulder

$

$

Currently unavailable

41

Murray MU56023E700

Plate, Right Suspension

$

$

Currently unavailable

42

Murray MU1X45

BOLT, Hex

$

$

Currently unavailable

43

Murray MU56595E700

Plate, Index

$

$

Currently unavailable
