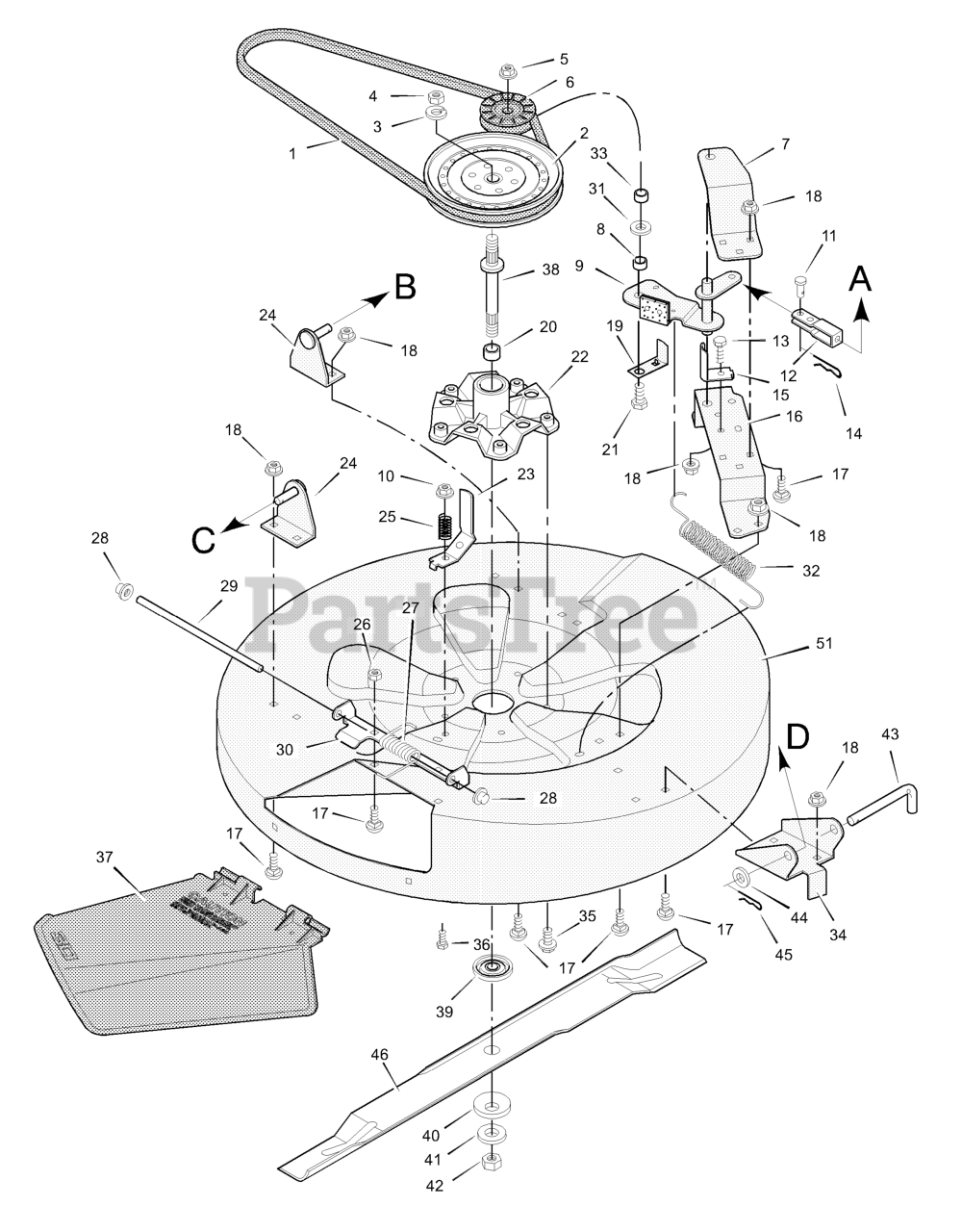

30503x11A - Murray 30" Rear-Engine Riding Mower (2000) Mower Housing Parts Diagram

30" Rear-Engine Riding Mower

Mower Housing Parts Diagram

  • Title
1

Murray MU37X57

BELT, Mower Drive

$

$

Currently unavailable

2

Murray MU91951

PULLEY, Splined

$

$

Currently unavailable

3

Murray MU18X33

LOCKWASHER

$

$

Currently unavailable

4

Murray MU15X100

Locknut, Hex

$

$

Currently unavailable

5

Murray MU15X41

NUT, Hex

$

$

Currently unavailable

6

Murray MU690410

PULLEY, Idler

$

$

Currently unavailable

7

Murray MU55921E700

BRACKET, Upper Idler

$

$

Currently unavailable

8

$

$

Currently unavailable

9

Murray MU55979

ASSEMBLY, Blade Idler

$

$

Currently unavailable

10

Murray MU15X88

Locknut, Flange

$

$

Currently unavailable

11

Murray MU29X99

PIN, Clevis

$

$

Currently unavailable

12

$

$

Currently unavailable

13

Murray MU1X45

BOLT, Hex

$

$

Currently unavailable

14

Murray MU31X6

PIN, Hair

$

$

Currently unavailable

15

Murray MU55977

GUIDE, Belt

$

$

Currently unavailable

16

Murray MU55920E700

BRACKET, Lower Idler

$

$

Currently unavailable

17

Murray MU2X53

BOLT, Carriage

$

$

Currently unavailable

18

Murray MU15X79

NUT, Flange

$

$

Currently unavailable

19

Murray MU55894

GUIDE, Belt

$

$

Currently unavailable

20

$

$

Currently unavailable

21

Murray MU1X127

BOLT, Hex

$

$

Currently unavailable

22

Murray MU55962

Housing, Mandrel

$

$

Currently unavailable

23

Murray MU55956 Z

GUIDE, Belt

$

$

Currently unavailable

24

Murray MU55974E700

BRACKET, Hanger

$

$

Currently unavailable

25

Murray MU164X1

SPRING, Compression

$

$

Currently unavailable

26

Murray MU15X43

NUT, Hex

$

$

Currently unavailable

27

Murray MU166X4

SPRING - Torsional

$

$

Currently unavailable

28

Murray MU28X23

Push On Cap

$

$

Currently unavailable

$

$

Currently unavailable

30

Murray MU56213E700

Hinge, Chute Deflector

$

$

Currently unavailable

31

$

$

Currently unavailable

32

Murray MU165X68

SPRING, Extension

$

$

Currently unavailable

33

$

$

Currently unavailable

34

Murray MU55916E700

BRACKET, Front

$

$

Currently unavailable

35

$

$

Currently unavailable

36

Murray MU1X75

BOLT, Hex

$

$

Currently unavailable

37

Murray MU55971

Deflector, Chute

$

$

Currently unavailable

38

Murray MU91921

Mandrel

$

$

Currently unavailable

39

Murray MU92466

Adapter, Blade

$

$

Currently unavailable

40

Murray MU17X166

WASHER, Belleville

$

$

Currently unavailable

41

Murray MU17X165

WASHER, Hardened

$

$

Currently unavailable

42

Murray MU15X100

NUT, Hex

$

$

Currently unavailable

43

Murray MU90828 Z

PIN, Pull

$

$

Currently unavailable

44

$

$

Currently unavailable

45

Murray MU31X4

PIN, Hair

$

$

Currently unavailable

46

Murray MU55793E701

Blade, Standard

$

$

Currently unavailable

51

UNKNOWN

$

$

Not available
