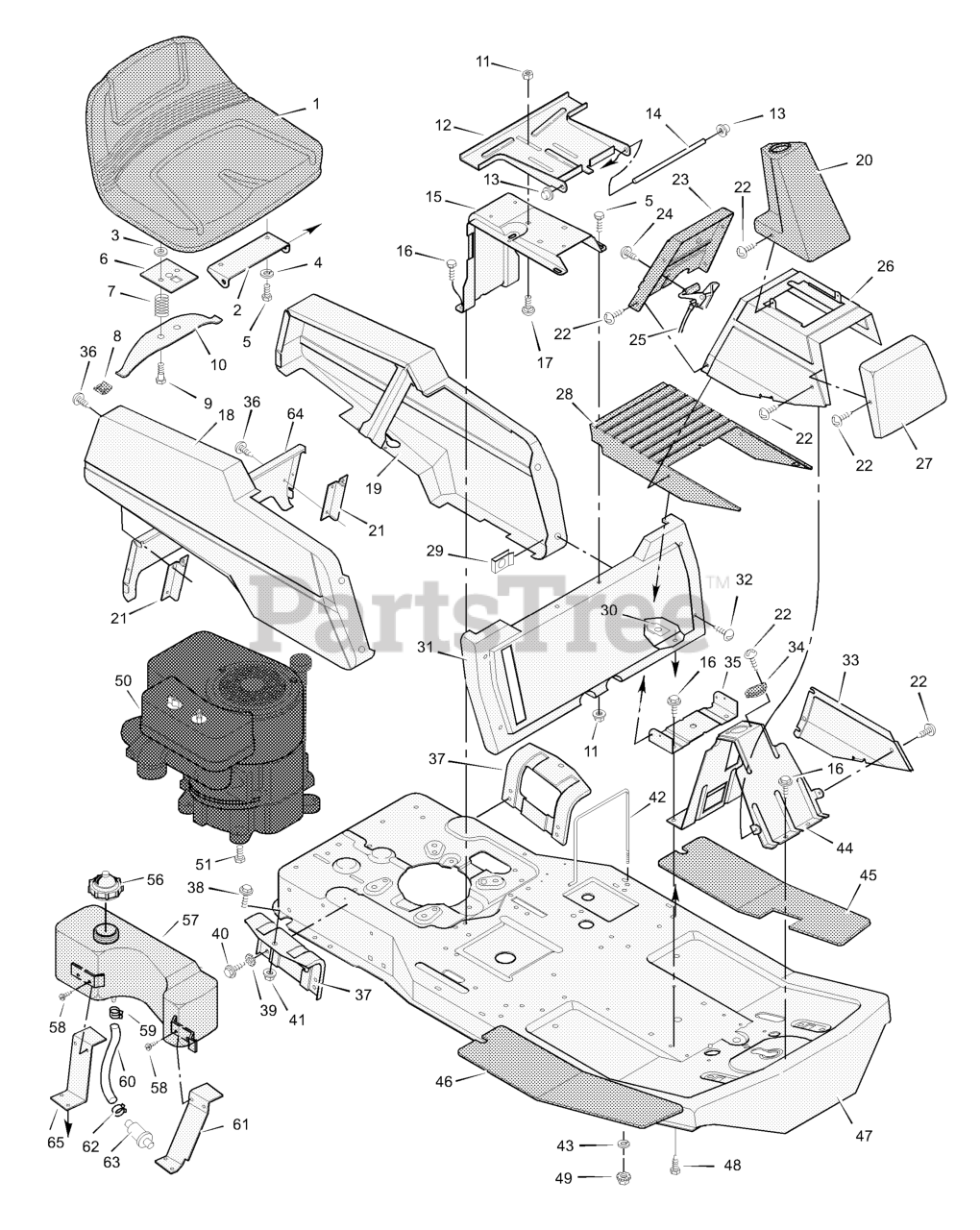

30503x11A - Murray 30" Rear-Engine Riding Mower (2000) Body Chassis Parts Diagram

30" Rear-Engine Riding Mower

Body Chassis Parts Diagram

  • Title

$

$

Currently unavailable

2

Murray MU56516E700

Hinge, Seat

$

$

Currently unavailable

3

Murray MU28X64

Retainer

$

$

Currently unavailable

4

Murray MU18X16

LOCKWASHER

$

$

Currently unavailable

5

Murray MU1X45

BOLT, Hex

$

$

Currently unavailable

6

Murray MU91963 Z

Plate, Seat Switch

$

$

Currently unavailable

7

Murray MU164X26

SPRING, Compression

$

$

Currently unavailable

8

Murray MU91822

Glide, Seat Spring

$

$

Currently unavailable

9

Murray MU9X38

BOLT, Shoulder

$

$

Currently unavailable

10

Murray MU91964

SPRING, Seat

$

$

Currently unavailable

11

Murray MU15X88

Locknut, Flange

$

$

Currently unavailable

12

Murray MU56518E700

BRACKET, Seat Pivot

$

$

Currently unavailable

13

Murray MU28X23

Cap, Push On

$

$

Currently unavailable

14

Murray MU56537 Z

ROD, Seat Hinge

$

$

Currently unavailable

15

Murray MU56519E700

SUPPORT, Seat

$

$

Currently unavailable

16

$

$

Currently unavailable

17

Murray MU2X53

BOLT, Carriage

$

$

Currently unavailable

18

Murray MU54764E549

PANEL, Right Side

$

$

Currently unavailable

19

Murray MU54763E549

PANEL, Left Side

$

$

Currently unavailable

20

Murray MU94353

Cover, Steering Column

$

$

Currently unavailable

21

Murray MU54747E549

BRACKET, Panel

$

$

Currently unavailable

22

Murray MU26X270

SCREW, Tapping

$

$

Currently unavailable

23

Murray MU690556

PANEL, Control

$

$

Currently unavailable

24

$

$

Currently unavailable

25

Murray MU56247

Throttle Control

$

$

Currently unavailable

26

$

$

Currently unavailable

27

Murray MU56407E549

Cap, Front Console

$

$

Currently unavailable

28

Murray MU94352

Cover, Lower Console

$

$

Currently unavailable

29

Murray MU28X52

Retainer

$

$

Currently unavailable

30

$

$

Currently unavailable

31

Murray MU56235E549

PANEL, Front

$

$

Currently unavailable

32

Murray MU91330

SCREW, Southco

$

$

Currently unavailable

33

Murray MU56406E549

PANEL, Left Access

$

$

Currently unavailable

34

Murray MU56022

BEARING, Steering Post

$

$

Currently unavailable

35

Murray MU56233E700

BRACKET, Cover Mounting

$

$

Currently unavailable

36

$

$

Currently unavailable

37

Murray MU56122E700

SUPPORT, Body

$

$

Currently unavailable

38

Murray MU9X29

BOLT, Shoulder

$

$

Currently unavailable

39

Murray MU19X6

LOCKWASHER

$

$

Currently unavailable

$

$

Currently unavailable

41

Murray MU15X84

Locknut, Flange

$

$

Currently unavailable

42

Murray MU54800 Z

Clamp Assembly, Battery

$

$

Currently unavailable

43

$

$

Currently unavailable

44

Murray MU56240E700

SUPPORT, Steering Column

$

$

Currently unavailable

45

Murray MU92637

Mat, Left

$

$

Currently unavailable

46

Murray MU92636

Mat, Right

$

$

Currently unavailable

$

$

Currently unavailable

48

$

$

Currently unavailable

49

Murray MU15X66

Locknut

$

$

Currently unavailable

50

Engine

$

$

Not available

51

Murray MU25X7

BOLT, Engine Mount

$

$

Currently unavailable

56

Murray MU92317

Cap, Fuel

$

$

Currently unavailable

57

Murray MU55805

Tank, Fuel

$

$

Currently unavailable

58

Murray MU26X213

SCREW, Hex

$

$

Currently unavailable

59

Murray MU95197

Clamp, Hose

$

$

Currently unavailable

60

Murray MU91022

LINE, Fuel

$

$

Currently unavailable

61

Murray MU55806E700

BRACKET, Remote Tank (Front)

$

$

Currently unavailable

62

Murray MU91174

CLAMP, Gas Line

$

$

Currently unavailable

63

Murray MU56002

Filter, Fuel

$

$

Currently unavailable

64

Murray MU54782E549

PANEL, Rear

$

$

Currently unavailable

65

Murray MU94941

BRACKET, Remote Tank (Rear)

$

$

Currently unavailable

--

Murray MUF-000607J

Instruction Book & Parts List

$

$

Currently unavailable

--

Murray MU130006

DECAL, Left Panel

$

$

Currently unavailable

--

Murray MU130007

DECAL, Right Panel

$

$

Currently unavailable

--

Murray MU44X4741

DECAL, Shift

$

$

Currently unavailable

--

Murray MU44X7325

DECAL, Front Console Warning

$

$

Currently unavailable
