30503x11A - Murray 30" Rear-Engine Riding Mower (1999) Steering Parts Diagram

30" Rear-Engine Riding Mower

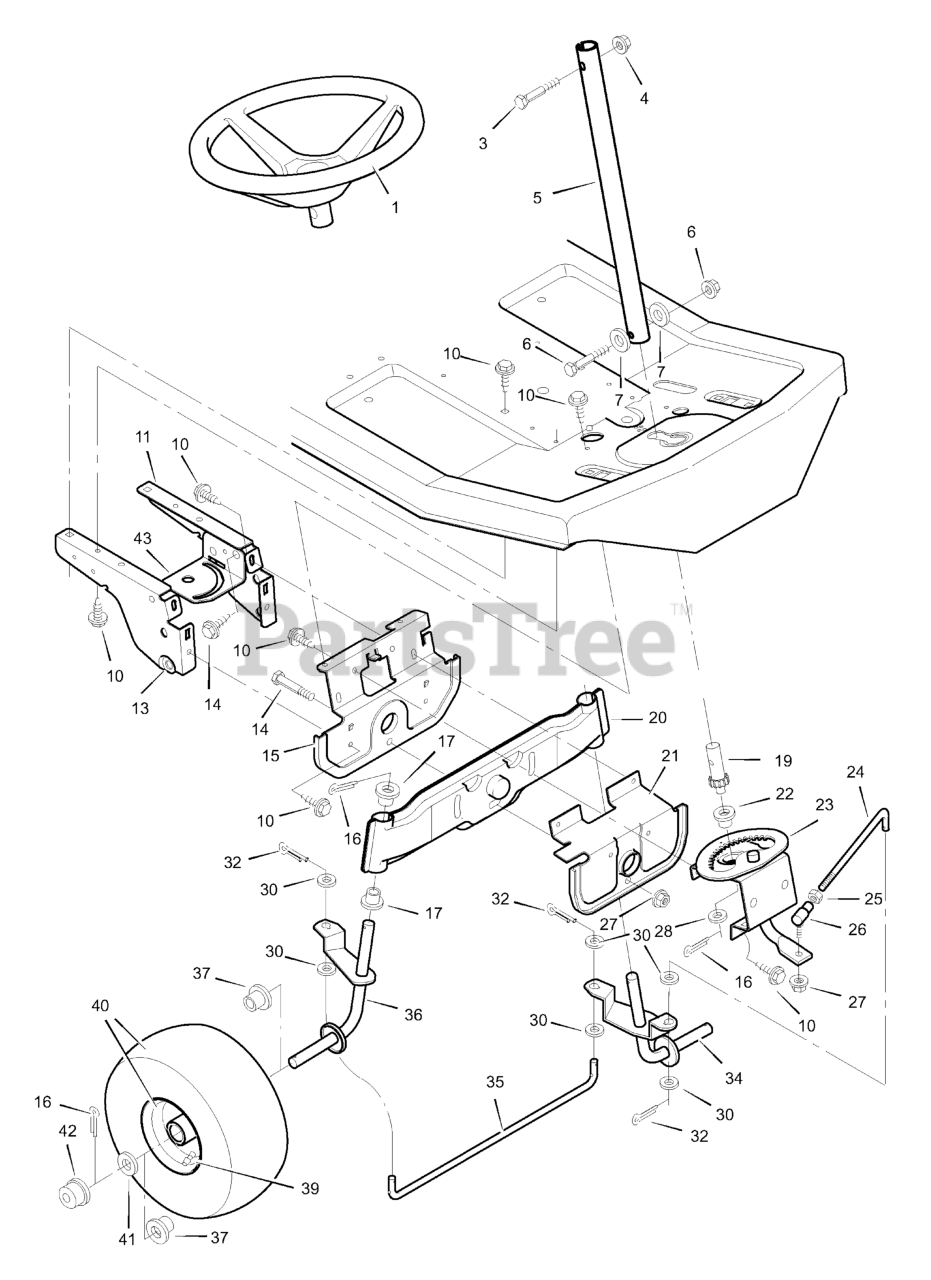

Steering Parts Diagram

  • Title
1

Murray MU92078

Steering Wheel

$

$

Currently unavailable

3

Murray MU1X102

BOLT, Hex

$

$

Currently unavailable

4

Murray MU15X88

Locknut, Flange

$

$

Currently unavailable

5

Murray MU56417 C

Post, Steering

$

$

Currently unavailable

6

Murray MU15X88

NUT, Hex

$

$

Currently unavailable

7

$

$

Currently unavailable

10

$

$

Currently unavailable

11

Murray MU56224E700

Plate, Left Suspension

$

$

Currently unavailable

13

Murray MU56023E700

Plate, Right Suspension

$

$

Currently unavailable

14

Murray MU1X69

BOLT, Hex

$

$

Currently unavailable

15

Murray MU56231E700

SUPPORT, Front Axle

$

$

Currently unavailable

16

Murray MU30X49

PIN, Cotter

$

$

Currently unavailable

17

Murray MU55003

BEARING, Spindle

$

$

Currently unavailable

19

Murray MU56418

Gear, Pinion

$

$

Currently unavailable

20

Murray MU56223E700

Axle Assembly, Front

$

$

Currently unavailable

21

Murray MU56230E700

HANGER Assembly, Front Axle

$

$

Currently unavailable

22

Murray MU55168

BEARING

$

$

Currently unavailable

23

Murray MU56236E700

Sector Assembly

$

$

Currently unavailable

24

Murray MU56625 Z

ROD, Drag Link

$

$

Currently unavailable

25

Murray MU15X61

NUT, Hex

$

$

Currently unavailable

26

Murray MU21031

Ball Joint, Steering

$

$

Currently unavailable

27

Murray MU15X87 Z

Locknut, Flange

$

$

Currently unavailable

28

$

$

Currently unavailable

30

$

$

Currently unavailable

32

Murray MU30X20

PIN, Cotter

$

$

Currently unavailable

34

Murray MU55039E700

Spindle Assembly, Left

$

$

Currently unavailable

35

Murray MU55026 Z

ROD, Tie

$

$

Currently unavailable

36

Murray MU55038E700

Spindle Assembly, Right

$

$

Currently unavailable

37

Murray MU56105

BEARING, Wheel

Note: (Included with Ref. No. 40)

$

$

Currently unavailable

38

$

$

Currently unavailable

39

Murray MU24373

Valve Stem

Note: (Included with Ref. No. 40)

$

$

Currently unavailable

40

Murray MU92303601

WHEEL & TIRE ASSEMBLY

$

$

Currently unavailable

41

$

$

Currently unavailable

42

Murray MU94618

Cap, Hub

Note: (Optional)

$

$

Currently unavailable

43

Murray MU56225E700

BRACKET, Blade Drive

$

$

Currently unavailable

44

$

$
