3050 - Lawn-Boy Walk-Behind Mower (SN: 900000001 - 999999999) (1959) MODELS 3050 AND 7050 MOWERS Parts Diagram

Walk-Behind Mower

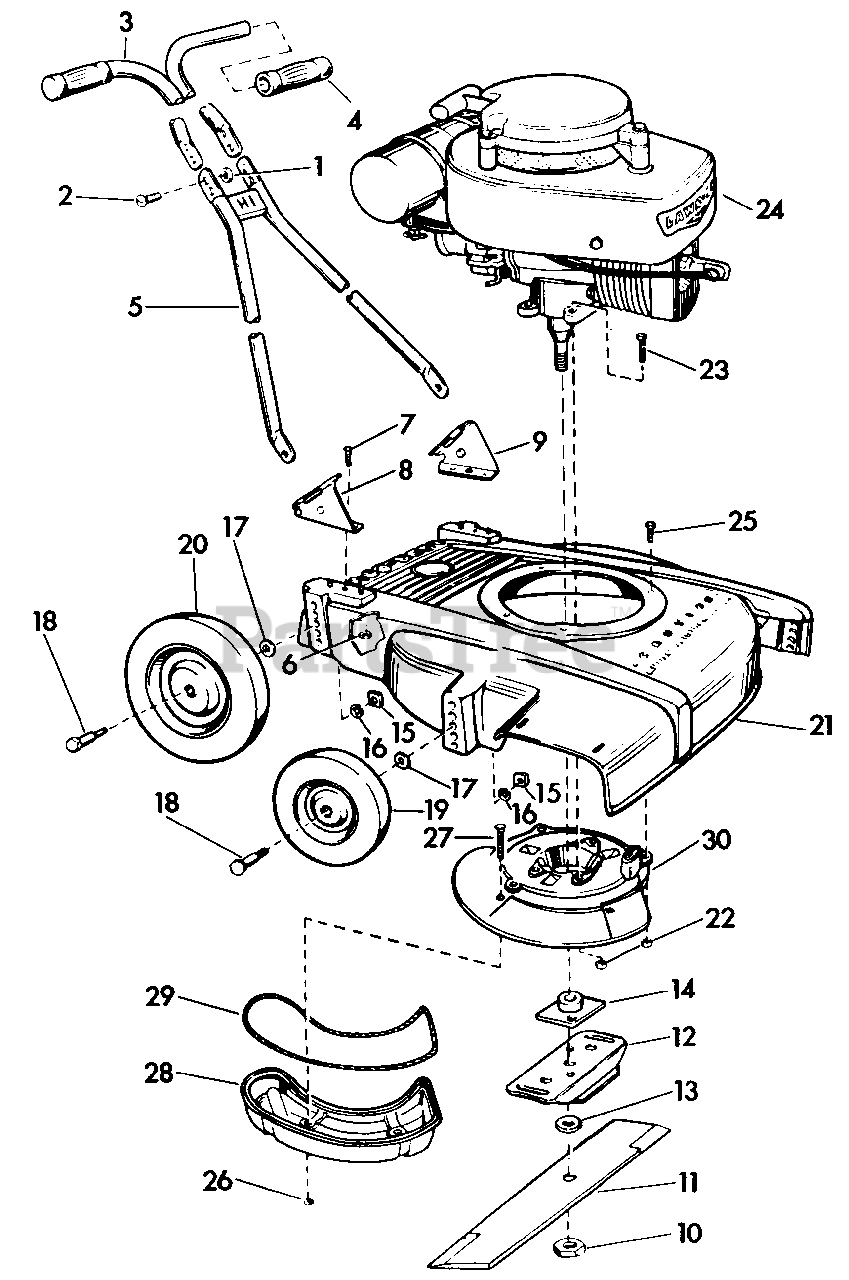

MODELS 3050 AND 7050 MOWERS Parts Diagram

  • Title

1

Lawn-Boy 602201

Nut-Handle

$

$

Not available

2

Lawn-Boy 602025

Screw-Handle

$

$

Not available

3

Lawn-Boy 677354

Handle Assembly-Top

$

$

Not available

4

Lawn-Boy 603025

Grip-Handle

$

$

Not available

5

Lawn-Boy 677355

Handle Assembly-Bottom

$

$

Not available

6

Lawn-Boy 602830

Nut-Nylon, Handle Bracket

$

$

Not available

7

Lawn-Boy 602693

Screw-Handle Bracket

$

$

Not available

8

Lawn-Boy 677118

Bracket-Handle, Right

$

$

Not available

9

Lawn-Boy 677117

Bracket-Handle, Left

$

$

Not available

10

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 602752

Blade-18"

$

$

Not available

11

Lawn-Boy 602754

Blade-21"

$

$

Currently unavailable

12

Lawn-Boy 603541

Stiffener-Blade

$

$

Not available

13

Lawn-Boy 602178

Fiber Washer (21" Model only)

$

$

Not available

14

Lawn-Boy 677525

Collar and Plate Assembly

$23.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 602677

Nut-Wheel

$5.49

$

Usually ships in 3-6 days

0

16

Lawn-Boy 120177

Washer-Lock, Wheel

$3.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 602627

Washer-Plain, Wheel

$

$

Not available

18

Lawn-Boy 602680

Bolt-Shoulder, Wheel

$

$

Not available

19

Lawn-Boy 677533

Wheel Assembly, 6 x 1.50

$

$

Not available

20

Lawn-Boy 677534

Wheel Assembly, 8 x 1.75

$

$

Not available

21

Lawn-Boy 603034

Housing-18"

$

$

Currently unavailable

21

Lawn-Boy 603523

Housing-21"

$

$

Currently unavailable

22

Lawn-Boy 602830

Nut-Nylon, Muffler Plate and Engine Mounting

$

$

Not available

23

Lawn-Boy 602694

Screw-Engine Mounting

$

$

Not available

24

Lawn-Boy 677675

Engine-Model C-70

$

$

Not available

25

Lawn-Boy 602693

Screw-Muffler Plate

$

$

Not available

26

Lawn-Boy 602315

Nut-Lock, Muffler Bolt

$4.49

$

In Stock, only 2 left!

0

27

Lawn-Boy 602777

Bolt-Muffler

$

$

Not available

28

Lawn-Boy 602582

Muffler

$

$

Not available

29

Lawn-Boy 602645

Gasket-Muffler

$

$

Not available

30

Lawn-Boy 602574

Plate-Muffler

$

$

Not available
