305 s - Shindaiwa Chainsaw (SN: C37014001001 - C37014999999) FUEL SYSTEM Parts Diagram

Chainsaw

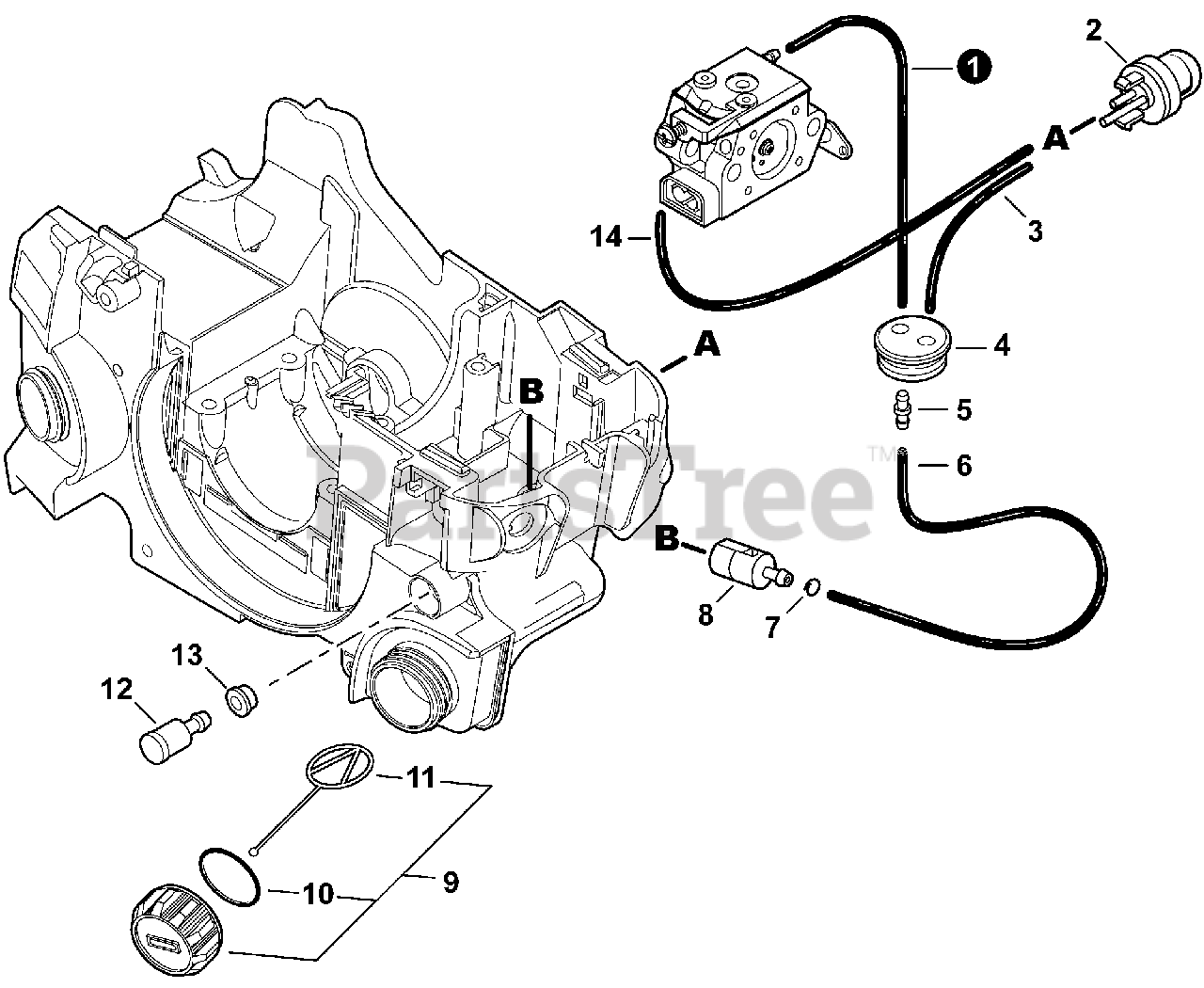

FUEL SYSTEM Parts Diagram

  • Title
1

Echo V471003871

PIPE, FUEL 3×5×85 BLACK
(Superseded to V471003872)

$2.49

$

In Stock, only 1 left!

0

2

Echo 12318139130

BULB, PURGE

$7.49

$

In Stock, Qty 20+

0

3

Echo V471001560

PIPE, FUEL RETURN 2.4×5×80 BLACK
(Superseded to V471001561)

$1.99

$

In Stock, only 3 left!

0

4

Echo 13211544330

GROMMET, FUEL
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

5

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, Qty 5

0

6

Echo V471003880

PIPE, FUEL 3×5×144 BLACK
(Superseded to V471003881)

$1.49

$

In Stock, only 4 left!

0

7

Echo V490001240

CLIP Ø6

$0.99

$

Usually ships in 2-4 days

0

8

Echo A369000470

FILTER, FUEL

$8.99

$

In Stock, Qty 20+

0

9

Echo P021004562

CAP ASSY, FUEL

Note: Includes ITEMS 10-11

$10.99

$

Usually ships in 2-4 days

0

10

Echo V581000610

O-RING 22

$0.99

$

In Stock, Qty 9

0

11

Echo A365000050

CONNECTOR, CAP L= 60mm

$2.49

$

In Stock, Qty 20+

0

12

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

13

Echo V137000000

GROMMET, FUEL
(Superseded to V137000001)

$1.49

$

In Stock, only 2 left!

0

14

Echo V471002190

PIPE 2.4×5×125 BLACK
(Superseded to V471002191)

$4.49

$

In Stock, only 1 left!

0
