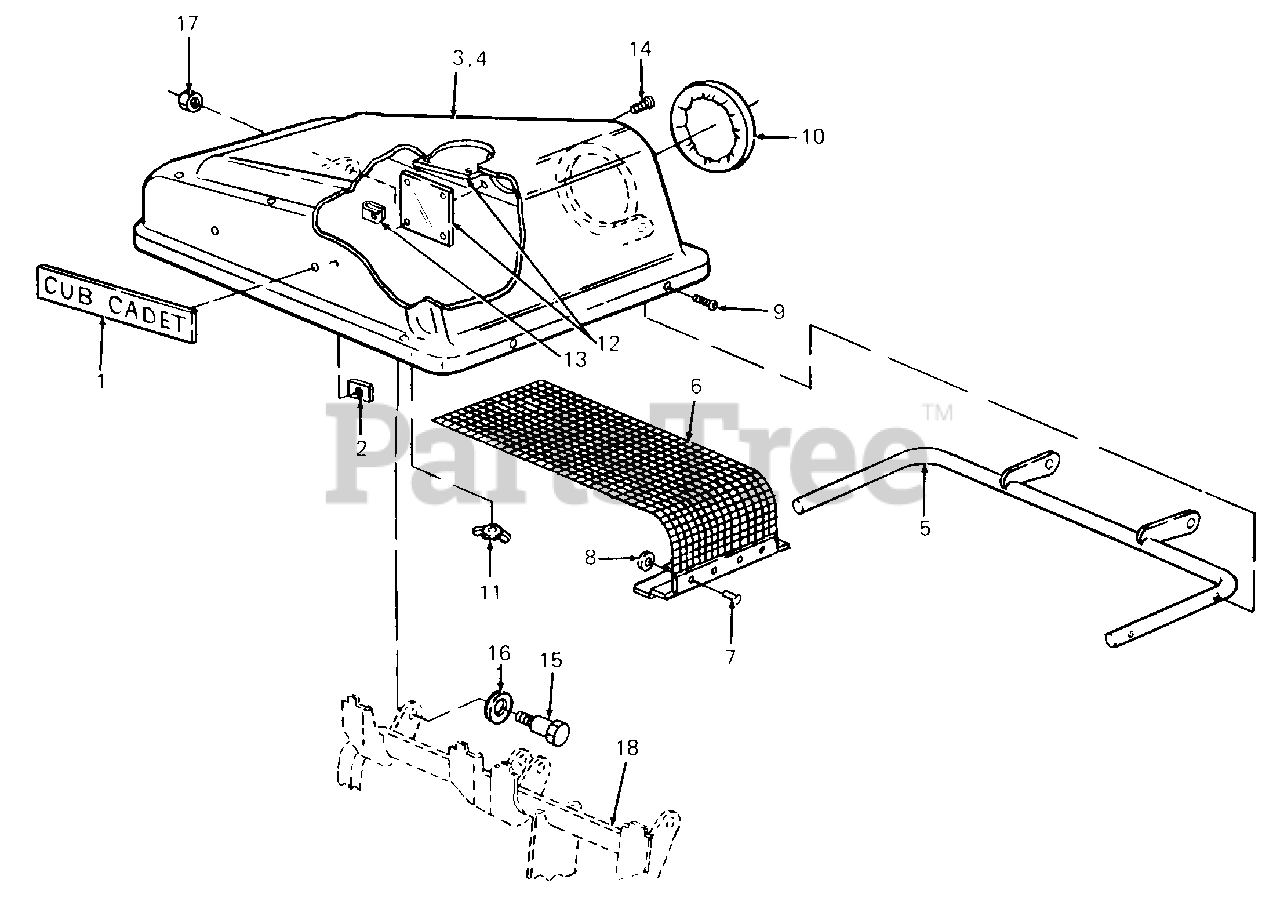

305 (190-305-100) - Cub Cadet Twin Rear Bagger Cover Assembly Parts Diagram

Twin Rear Bagger

Cover Assembly Parts Diagram

  • Title

1

Cub Cadet 731-3081

Plaque, Logo w/Studs
(Superseded to 731-3081A)

$

$

Not available

2

Cub Cadet 726-3040

Nut, Push-on Speed

$4.49

$

In Stock, only 2 left!

0

3

Cub Cadet 16594A

Cover Ass'y, Grass Catcher

Note: (Includes Ref No. 4, 5, 6, 9, [Qty 9] 10, 11 [Qty 18] 12 [Oty 2], 13 [Oty 4

$

$

Not available

4

Order Grass Catcher Cover Ass'y 16594A

$

$

Not available

5

Cub Cadet 16596

Bracket Ass'y, Hinge
(Superseded to 16596-0637)

Variations

Cub Cadet 16596-0637

BRACKET ASSY-HINGE - POWDER BLACK (0637)

$105.99

$

Usually ships in 3-6 days

0

$105.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 16847A

Screen Ass'y

Note: (Includes Ref No. 7 [Oty 4] & 8 [Oty 41)

Variations

Cub Cadet 16847A-0637

SCREEN ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 728-0123

Rivet, Pop
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 736-0400

Washer, Flat, .218 x .62 x .063

$5.49

$

In Stock, Qty 12

0

9

Cub Cadet 710-1005

Screw, Hex Wash. Hd. Tapp 1/4 x .50 Lg
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 723-0412

Seal, Tube, 7.1 ID

$32.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 726-0258

Twist Fastener, Zip

$4.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 731-0824

Plate, Plastic, 1/8 Thk x 5.62 Sq

$

$

Not available

13

Cub Cadet 726-0244

Nut, U-Type Speed
(Superseded to 712-0147)

$6.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0351

Screw, Truss Mach., #10 x .50 Lg

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 738-0380

Screw, Shld

$7.99

$

In Stock, only 1 left!

0

16

Cub Cadet 736-0253

Washer, Bell, .505 x 1.0 x .075 Thk

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 16588

Tube Ass'y, Catcher Support
(Superseded to 16592-0637)

$194.99

$

Usually ships in 3-6 days

0
