305 (190-305-100) - Cub Cadet Twin Rear Bagger att Bag, Frame and Support Parts Diagram

Twin Rear Bagger

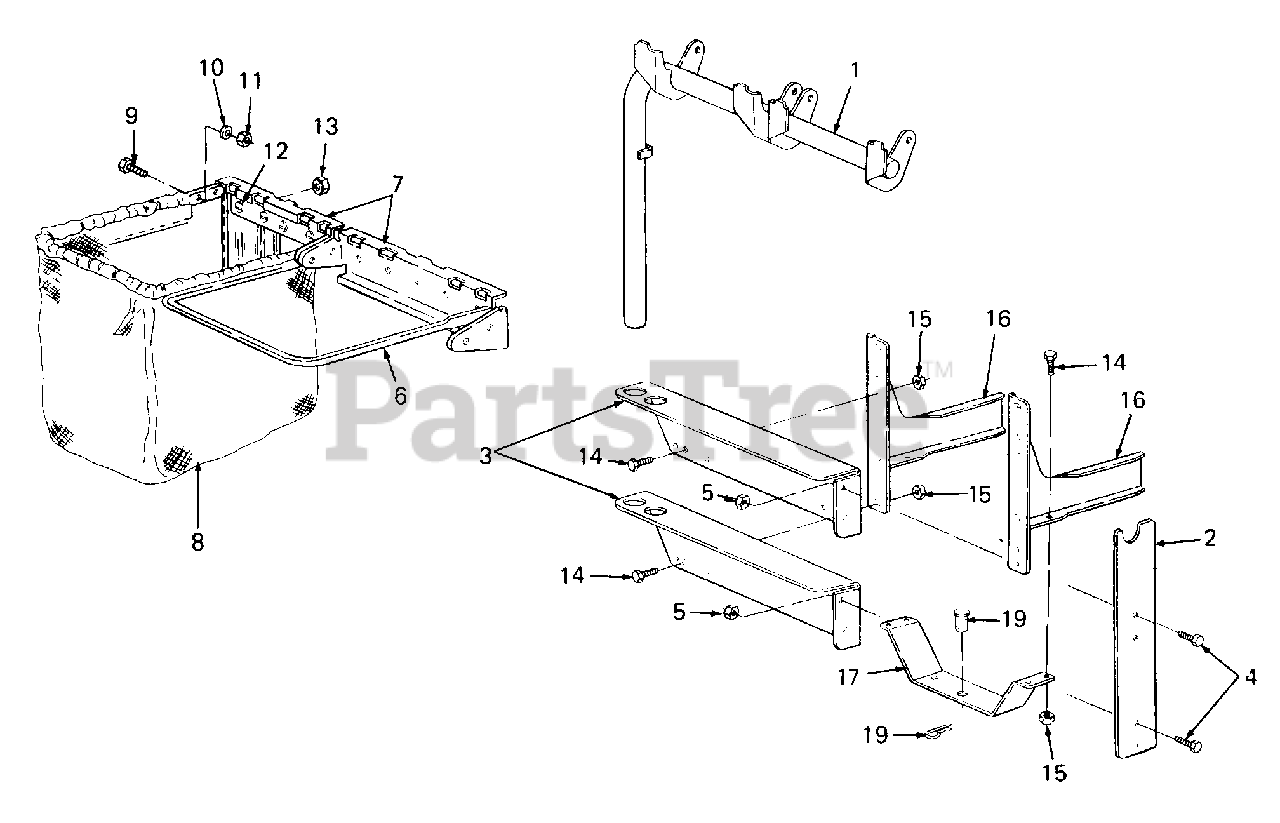

Bag, Frame and Support Parts Diagram

  • Title
1

Cub Cadet 16588

Tube Assy, Support
(Superseded to 16592-0637)

$194.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 16593A

Bracket, Support
(Superseded to 783-0601-0637)

Variations

Cub Cadet 16593A-0637

Support Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 16587B

Bracket, Support Tube Mounting
(Superseded to 16587D-0637)

Variations

Cub Cadet 16587B-0637

Mounting Bracket - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0118

Screw, Hex Cap, 5/16-18 x .75 Lg
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 712-3004A

Nut, Hex Flange Top Lock 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 749-0701

Frame, Catcher Bag
(Superseded to 749-0701A-0637)

Variations

Cub Cadet 749-0701-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 16591

Bracket, Bag Frame Hanger
(Superseded to 16591A-0637)

Variations

Cub Cadet 16591-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 764-0221

Bag, Grass Catcher
(Superseded to 964-0221)

$73.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0412

Screw, Hex, 1/4-28 x .75 Lg

$5.99

$

In Stock, Qty 9

0

10

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

11

Cub Cadet 712-0314

Nut, Hex, 1/4-28

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0192

Screw, Truss Mach, #1 0-24 x .38 Lg

$3.99

$

In Stock, Qty 12

0

13

Cub Cadet 712-0272

Nut, Hex Sems, #10-24

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0751

Screw, Hex, 1/4-20 x .62 Lg GR5

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3027

Nut, Hex, 1/4-20 GR5
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 703-2490

Bracket, Frame Support
(Superseded to 703-2490-0637)

Variations

Cub Cadet 703-2490-0637

Catcher Support Bracket - POWDER BLACK (0637)

$87.99

$

Usually ships in 3-6 days

0

$87.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 703-2489

Brace, Cross
(Superseded to 703-2489-0637)

Variations

Cub Cadet 703-2489-0637

Cross Brace, Black - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 714-3020

Pin, Internal Cotter - Quick Attach

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 711-0309

Pin, Clevis, .62 Dia
(Superseded to 711-0309A)

$12.99

$

In Stock, Qty 6

0
