30498 - Toro 48" Walk-Behind Mower, Floating Deck, Split Lever, Hydro Drive (SN: 290000001 - 290999999) (2009) PARKING BRAKE ASSEMBLY Parts Diagram

48" Walk-Behind Mower, Floating Deck, Split Lever, Hydro Drive

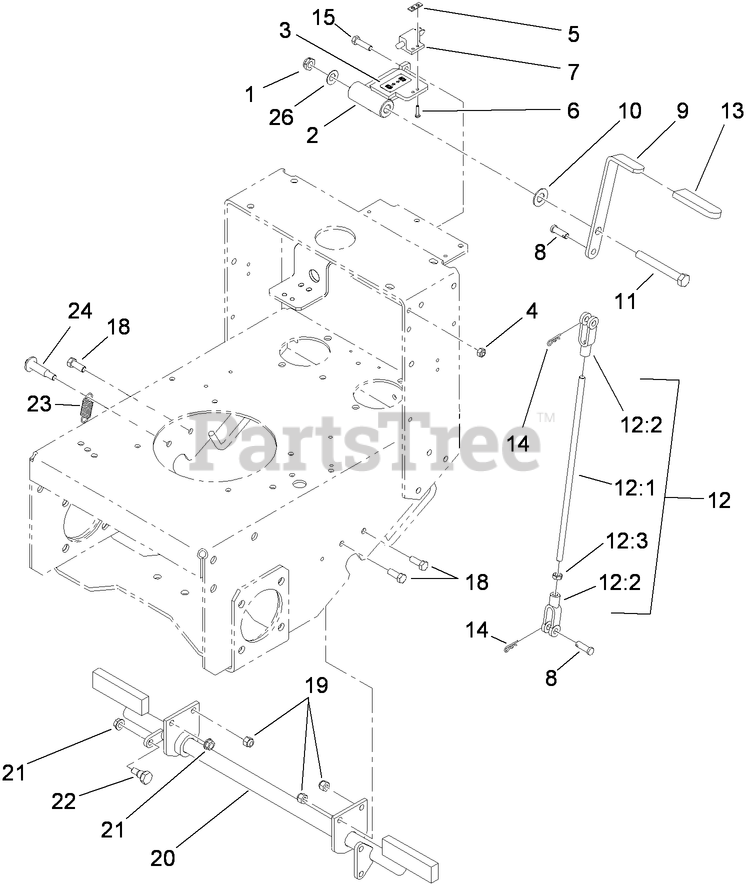

PARKING BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

2

Toro 112-8716-01

SUPPORT-HANDLE

$165.99

$

Usually ships in 3-6 days

0

3

Toro 112-8720

DECAL-BRAKE

$15.99

$

Usually ships in 3-6 days

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 12

0

6

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

7

Toro 1-513152

SWITCH-CLOSED, NORMALLY

$13.99

$

In Stock, Qty 16

0

8

Toro 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 15

0

9

Toro 106-0671-01

HANDLE-BRAKE

$55.99

$

Usually ships in 3-6 days

0

10

Toro 257-7

BEARING-THRUST

$4.99

$

Usually ships in 3-6 days

0

11

Toro 325-17

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

12

Toro 115-1465

BRAKE ROD ASM

$53.99

$

Usually ships in 3-6 days

0

12:1

Toro 108-2747

ROD-BRAKE

$64.99

$

Usually ships in 3-6 days

0

12:2

Toro 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 11

0

12:3

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

13

Toro 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

0

14

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

15

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

18

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

19

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Toro 110-4976-01

SHAFT-BRAKE, PARKING

$415.99

$

Usually ships in 3-6 days

0

21

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

22

Toro 27-5240

BOLT-SHOULDER

$23.99

$

Usually ships in 3-6 days

0

23

Toro 613386

SPRING-BRAKE

$9.49

$

Usually ships in 3-6 days

0

24

Toro 56-6590

BOLT-WHEEL
(Superseded to 136-7198)

$1.99

$

In Stock, Qty 20+

0

26

Toro 112-9972

WASHER-SPRING, CONICAL

$7.99

$

In Stock, Qty 10

0
