30498 - Toro 48" Walk-Behind Mower, Floating Deck, Split Lever, Hydro Drive (SN: 270000001 - 270999999) (2007) PARKING BRAKE ASSEMBLY Parts Diagram

48" Walk-Behind Mower, Floating Deck, Split Lever, Hydro Drive

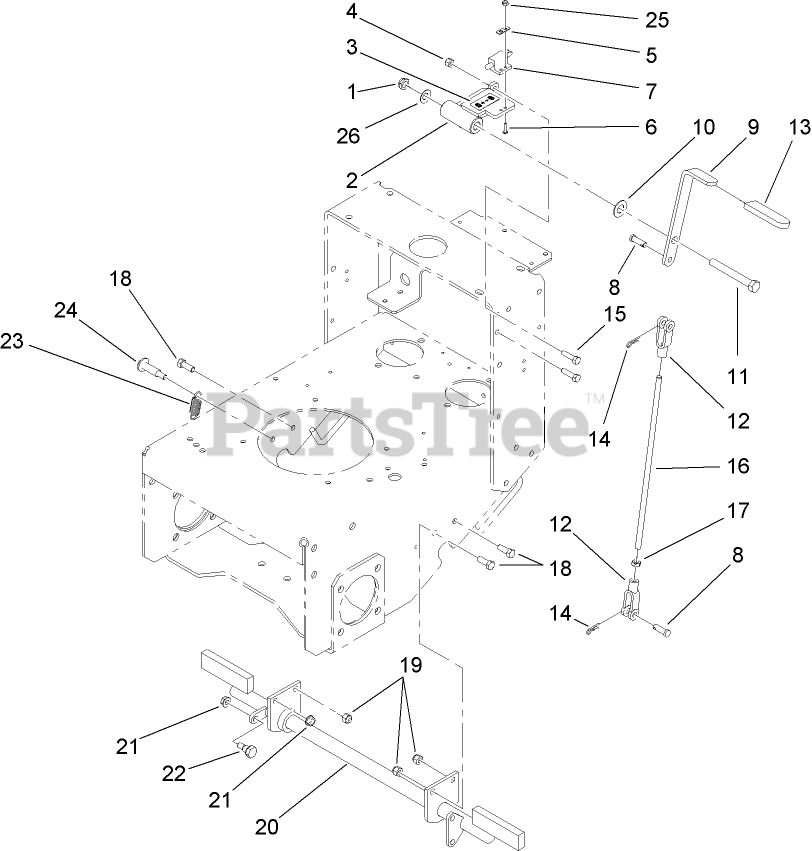

PARKING BRAKE ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

2

Toro 112-8716-01

SUPPORT-HANDLE

$165.99

$

Usually ships in 3-6 days

0

3

Toro 112-8720

DECAL-BRAKE

$15.99

$

Usually ships in 3-6 days

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 82-4570

PLATE-SWITCH

$14.99

$

Usually ships in 3-6 days

0

6

Toro 3250-17

SCREW-PPH

$2.49

$

Usually ships in 3-6 days

0

7

Toro 95-1653

SWITCH-POLE, SINGLE

$20.99

$

Usually ships in 3-6 days

0

8

Toro 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 5

0

9

Toro 106-0671-01

HANDLE-BRAKE

$55.99

$

Usually ships in 3-6 days

0

10

Toro 257-7

BEARING-THRUST

$4.99

$

Usually ships in 3-6 days

0

11

Toro 325-17

SCREW-HH

$5.99

$

In Stock, only 1 left!

0

12

Toro 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 8

0

13

Toro 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

0

14

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

15

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

16

Toro 108-2747

ROD-BRAKE

$64.99

$

Usually ships in 3-6 days

0

17

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

18

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

19

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

20

Toro 110-4976-01

SHAFT-BRAKE, PARKING

$415.99

$

Usually ships in 3-6 days

0

21

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

22

Toro 27-5240

BOLT-SHOULDER

$23.99

$

Usually ships in 3-6 days

0

23

Toro 613386

SPRING-BRAKE

$9.49

$

Usually ships in 3-6 days

0

24

Toro 56-6590

BOLT-WHEEL
(Superseded to 136-7198)

$1.99

$

In Stock, Qty 20+

0

25

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

26

Toro 112-9972

WASHER-SPRING, CONICAL

$7.99

$

In Stock, only 2 left!

0
