30496 - Toro 40" Walk-Behind Mower, Floating Deck, Split Lever, Hydro Drive (SN: 280001101 - 280999999) (2008) CONTROL EQUIPMENT ASSEMBLY KAWASAKI FH541V-ES24 Parts Diagram

40" Walk-Behind Mower, Floating Deck, Split Lever, Hydro Drive

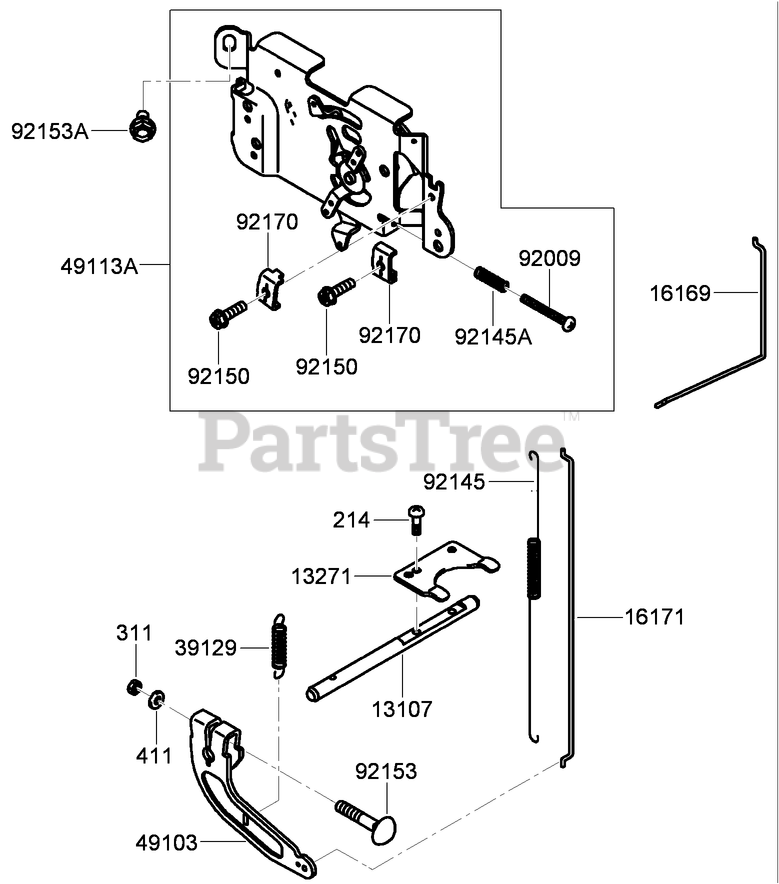

CONTROL EQUIPMENT ASSEMBLY KAWASAKI FH541V-ES24 Parts Diagram

  • Title
214

Kawasaki 214AA0408

SCREW-PAN +-(4X8)
(Superseded to 214B0408)

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

In Stock, Qty 15

0

311

Kawasaki 311AA0600

NUT-HEX (6MM)
(Superseded to 16011-002)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

411

Kawasaki 411AA0600

WASHER-PLAIN (6MM)
(Superseded to 411B0600)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 12

0

13107

Kawasaki 13107-7010

Shaft
(Superseded to 13107-0750)

Note: Obtain parts from www.kawpowerepc.com

$12.99

$

In Stock, Qty 5

0

13271

Kawasaki 13271-7032

PLATE
(Superseded to 13271-7018)

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

In Stock, Qty 6

0

16169

Kawasaki 16169-7010

Link-Choke
(Superseded to 16169-0010)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 10

0

16171

Kawasaki 16171-7001

Link
(Superseded to 16171-0039)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 8

0

39129

Kawasaki 39129-7003

Spring-Governor
(Superseded to 39129-7002)

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, Qty 20+

0

49103

Kawasaki 49103-7004

Arm-Governor
(Superseded to 49103-7002)

Note: Obtain parts from www.kawpowerepc.com

$7.99

$

In Stock, Qty 12

0

49113A

Kawasaki 49113-7054

CONTROL PANEL ASM
(Superseded to 49113-7024)

Note: Obtain parts from www.kawpowerepc.com

$26.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-7007

SCREW (4X35)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

Usually ships in 2-5 days

0

92145

Kawasaki 92145-7003

Spring

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, Qty 20+

0

92145A

Kawasaki 92145-7005

Spring

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 12

0

92150

Kawasaki 92150-2182

BOLT (5X18)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-7033

BOLT (6X35)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92153A

Kawasaki 92153-7043

BOLT (6X12)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92170

Kawasaki 92170-7001

Clamp

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, Qty 20+

0
