30486 - Toro 40" Walk-Behind Mower, Floating Deck, Split Lever, Hydro Drive (SN: 310000001 - 310999999) (2010) HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

40" Walk-Behind Mower, Floating Deck, Split Lever, Hydro Drive

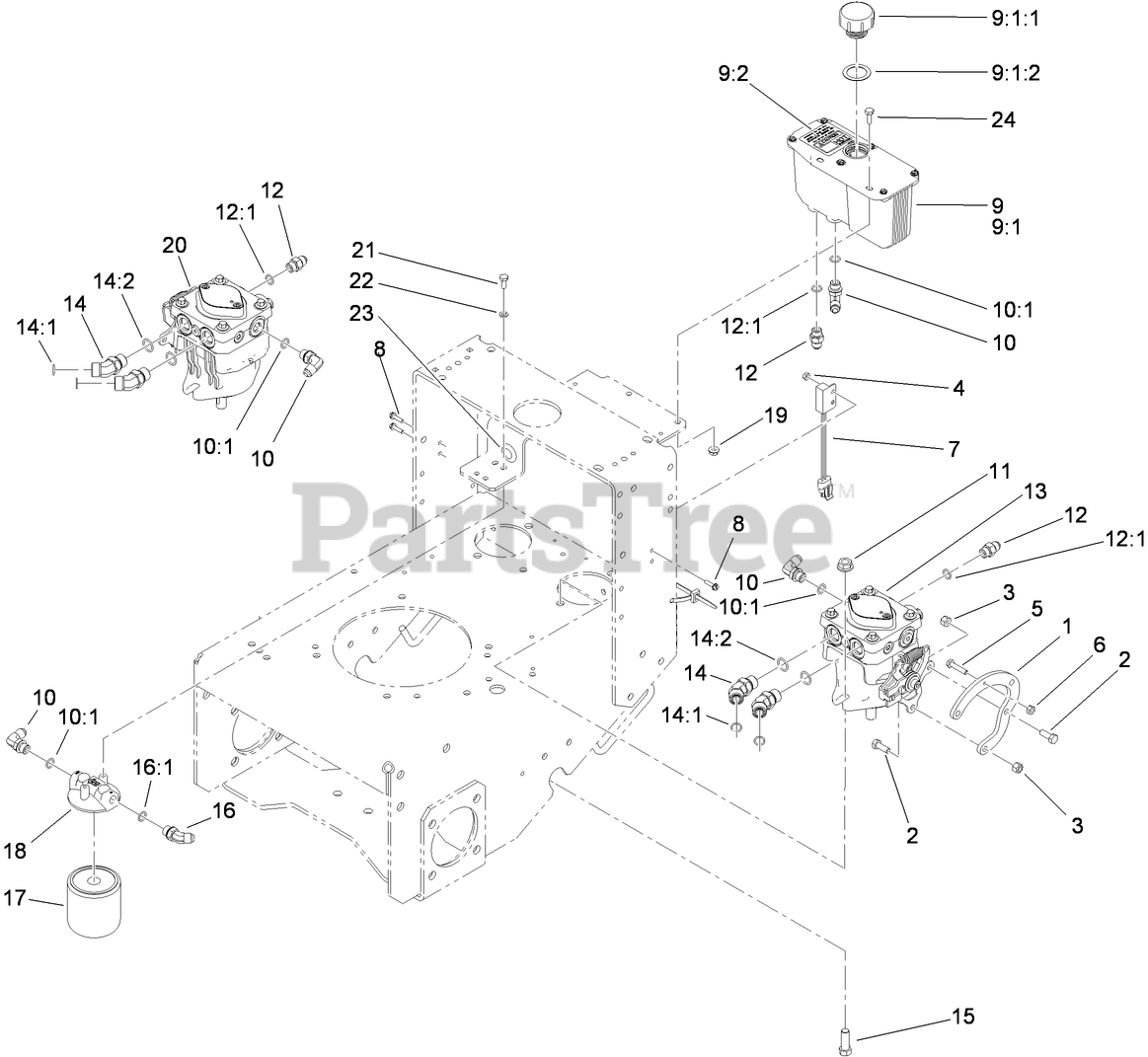

HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

  • Title
1

Toro 114-0227

BRACKET-ADAPTER, PUMP

$80.99

$

Usually ships in 3-6 days

0

2

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 114-0282

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

6

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

7

Toro 105-0023

SWITCH-PROXIMITY

$143.99

$

Usually ships in 3-6 days

0

8

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

9

Toro 107-8433

HYD RESERVOIR ASM

$384.99

$

Usually ships in 3-6 days

0

9:1

Reservoir-HYD

Note: Not serviced separately

$

$

Not available

9:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$27.99

$

In Stock, only 2 left!

0

9:1:2

Toro 103-1949

GASKET-CAP

$

$

Not available

9:2

Toro 115-4212

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

10

Toro 353-374

FITTING-ELBOW, 90 DEG
(Superseded to 103-1802)

$23.99

$

In Stock, only 1 left!

0

10:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

11

Toro 32128-42

NUT-HF

$1.49

$

In Stock, only 3 left!

0

12

Toro 353-384

FITTING-STRAIGHT

$7.49

$

Usually ships in 3-6 days

0

12:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

13

Toro 115-4480

HYD PUMP ASM

$1643.99

$

Usually ships in 3-6 days

0

14

Toro 340-101

FITTING-HYD, 45 DEG

$37.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

14:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

15

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

16

Toro 353-212

FITTING-ELBOW, 45 DEG

$26.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

17

Toro 1-633750

FILTER-OIL, HYD

$26.99

$

In Stock, Qty 15

0

17

Toro 1-633752

FILTER-OIL, HYD (WINTER)

$34.99

$

In Stock, only 1 left!

0

18

Toro 104-7836

HEAD-FILTER

$18.99

$

In Stock, only 3 left!

0

19

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

20

Toro 115-4481

HYD PUMP ASM

$1643.99

$

Usually ships in 3-6 days

0

21

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

23

Toro 112-7069

GROMMET

$3.49

$

Usually ships in 3-6 days

0

24

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+
