30486 - Toro 40" Walk-Behind Mower, Floating Deck, Split Lever, Hydro Drive (SN: 310000001 - 310999999) (2010) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

40" Walk-Behind Mower, Floating Deck, Split Lever, Hydro Drive

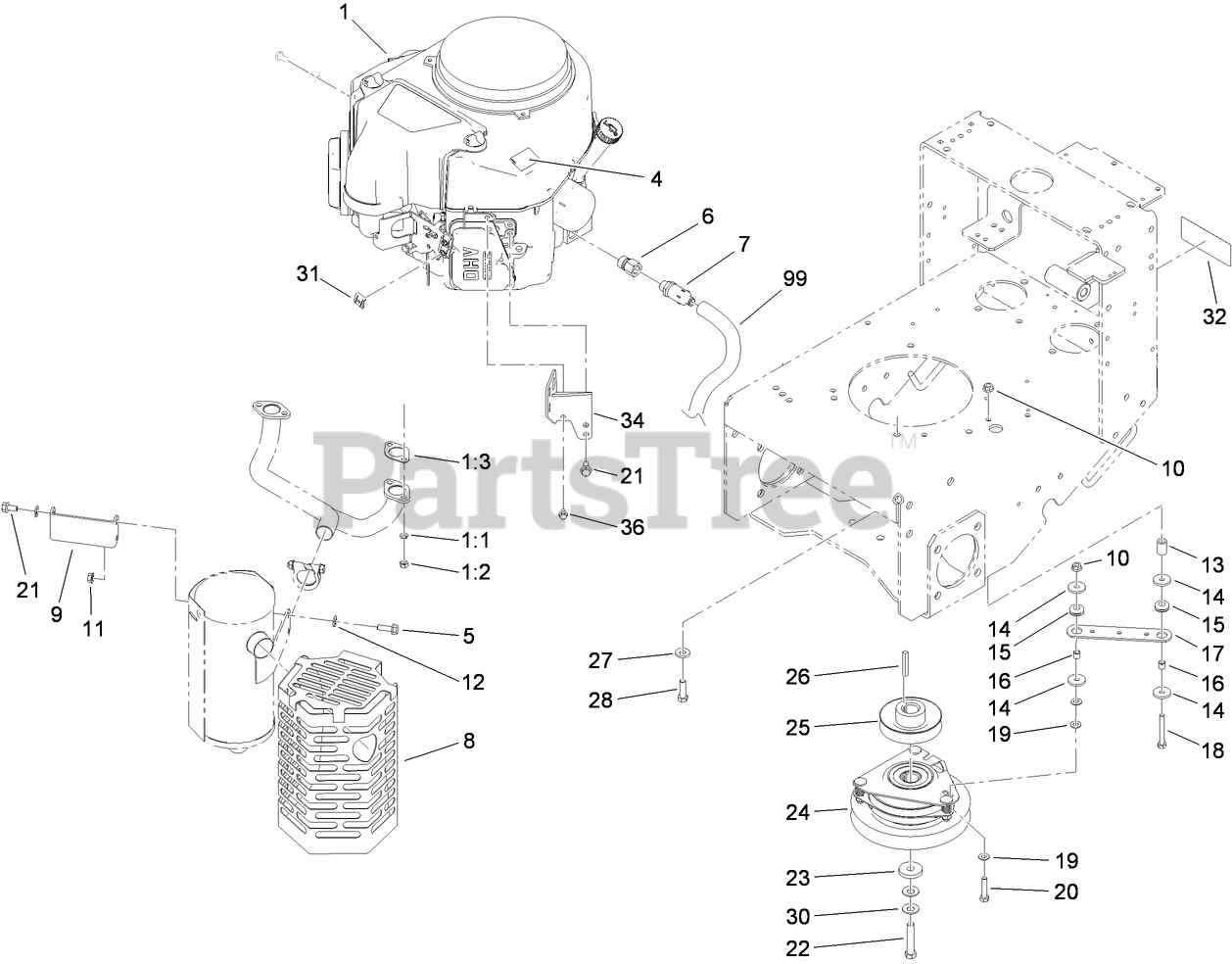

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KAWASAKI, FS541V-AS10

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FS541V-AS10

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

1:1

Toro 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 6

0

1:2

Toro 114-3549

NUT

$1.99

$

In Stock, Qty 20+

0

1:3

Toro 1-653313

GASKET-EXHAUST

$4.99

$

Usually ships in 3-6 days

0

4

Toro 106-0699

DECAL-WARNING

$55.99

$

Usually ships in 3-6 days

0

5

Toro 33104-025

SCREW-HHF

$7.49

$

In Stock, only 2 left!

0

6

Toro 103-1966

Adapter

$18.99

$

In Stock, only 1 left!

0

7

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 1 left!

0

8

Toro 119-3629-03

SHIELD-MUFFLER

$196.99

$

Usually ships in 3-6 days

0

9

Toro 119-3635-03

BRACKET-SHIELD, MUFFLER

$26.99

$

Usually ships in 3-6 days

0

10

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 117-1350

NUT-HF, LOCK

$1.49

$

In Stock, only 3 left!

0

12

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

13

Toro 104-6373

TUBE-RETAINER

$15.99

$

Usually ships in 3-6 days

0

14

Toro 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

15

Toro 1-633630

GROMMET

$5.99

$

In Stock, Qty 8

0

16

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

17

Toro 1-633543-03

STRAP-CLUTCH, BRAKE

$14.99

$

In Stock, only 1 left!

0

18

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 33104-016

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

22

Toro 3212-9

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

23

Toro 107-4136

WASHER
(Superseded to 1-543610)

$6.49

$

In Stock, Qty 6

0

24

Toro 105-2635

CLUTCH / BRAKE ASM

$576.99

$

In Stock, only 1 left!

0

25

Toro 44-5940

Pulley

$151.99

$

Usually ships in 3-6 days

0

26

Toro 608006

KEY-SQUARE

$5.49

$

Usually ships in 3-6 days

0

27

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

28

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

30

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

31

Toro 81-1690

CLAMP-CABLE

$2.99

$

Usually ships in 3-6 days

0

32

Toro 98-0776

DECAL-CAUTION

$18.99

$

Usually ships in 3-6 days

0

34

Toro 117-8561-03

BRACKET-MUFFLER

$56.99

$

Usually ships in 3-6 days

0

36

Toro 33103-012

SCREW-HHF

$5.49

$

In Stock, only 2 left!

0

99

Toro 103-1964

HOSE-DRAIN, OIL

$11.99

$

In Stock, only 1 left!

0
