30486 - Toro 40" Walk-Behind Mower, Floating Deck, Split Lever, Hydro Drive (SN: 310000001 - 310999999) (2010) ELECTRICAL SYSTEM ASSEMBLY Parts Diagram

40" Walk-Behind Mower, Floating Deck, Split Lever, Hydro Drive

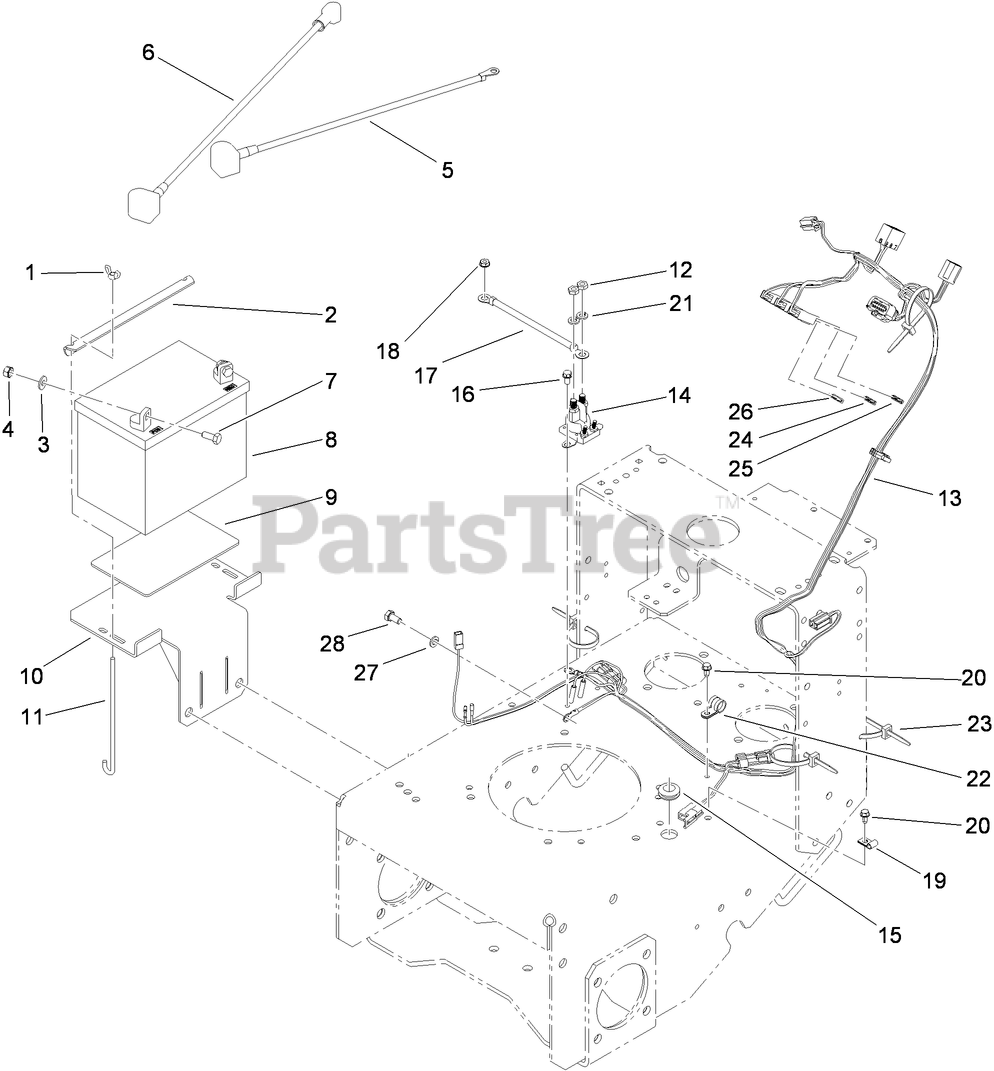

ELECTRICAL SYSTEM ASSEMBLY Parts Diagram

  • Title
1

Toro 1-543792

WINGNUT

$6.49

$

In Stock, Qty 15

0

2

Toro 103-9944-03

ANGLE-BATTERY

$17.99

$

Usually ships in 3-6 days

0

3

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

5

Toro 112-9709

CABLE-BATTERY, BLACK

$37.99

$

Usually ships in 3-6 days

0

6

Toro 112-9708

CABLE-BATTERY, RED

$46.99

$

Usually ships in 3-6 days

0

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

8

Toro 104-8162

BATTERY-DRY

$

$

Not available

9

Toro 62-4300

PAD-SKID, ANTI

$19.99

$

Usually ships in 3-6 days

0

10

Toro 117-5216-01

TRAY-BATTERY

$71.99

$

Usually ships in 3-6 days

0

11

Toro 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 11

0

12

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

13

Toro 115-4191

HARNESS-WIRE, ES TWIN LEVER

$336.99

$

Usually ships in 3-6 days

0

14

Toro 1-513075

SWITCH-SOLENOID
(Superseded to 117-1197)

$45.99

$

In Stock, Qty 20+

0

15

Toro 112-7069

GROMMET

$3.49

$

Usually ships in 3-6 days

0

16

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

17

Toro 112-9707

CABLE-BATTERY, POS

$30.99

$

Usually ships in 3-6 days

0

18

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

19

Toro 2412-72

CLIP-CLOSED, INSULATED

$2.49

$

In Stock, Qty 12

0

20

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

21

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

22

Toro 2412-134

CLAMP-R

$6.49

$

Usually ships in 3-6 days

0

23

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

24

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 8

0

25

Toro 109103

FUSE-BLADE, 30 AMP

$6.99

$

In Stock, Qty 6

0

26

Toro 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

27

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

28

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0
