30486 - Toro 40" Walk-Behind Mower, Floating Deck, Split Lever, Hydro Drive (SN: 310000001 - 310999999) (2010) CARRIER FRAME ASSEMBLY Parts Diagram

40" Walk-Behind Mower, Floating Deck, Split Lever, Hydro Drive

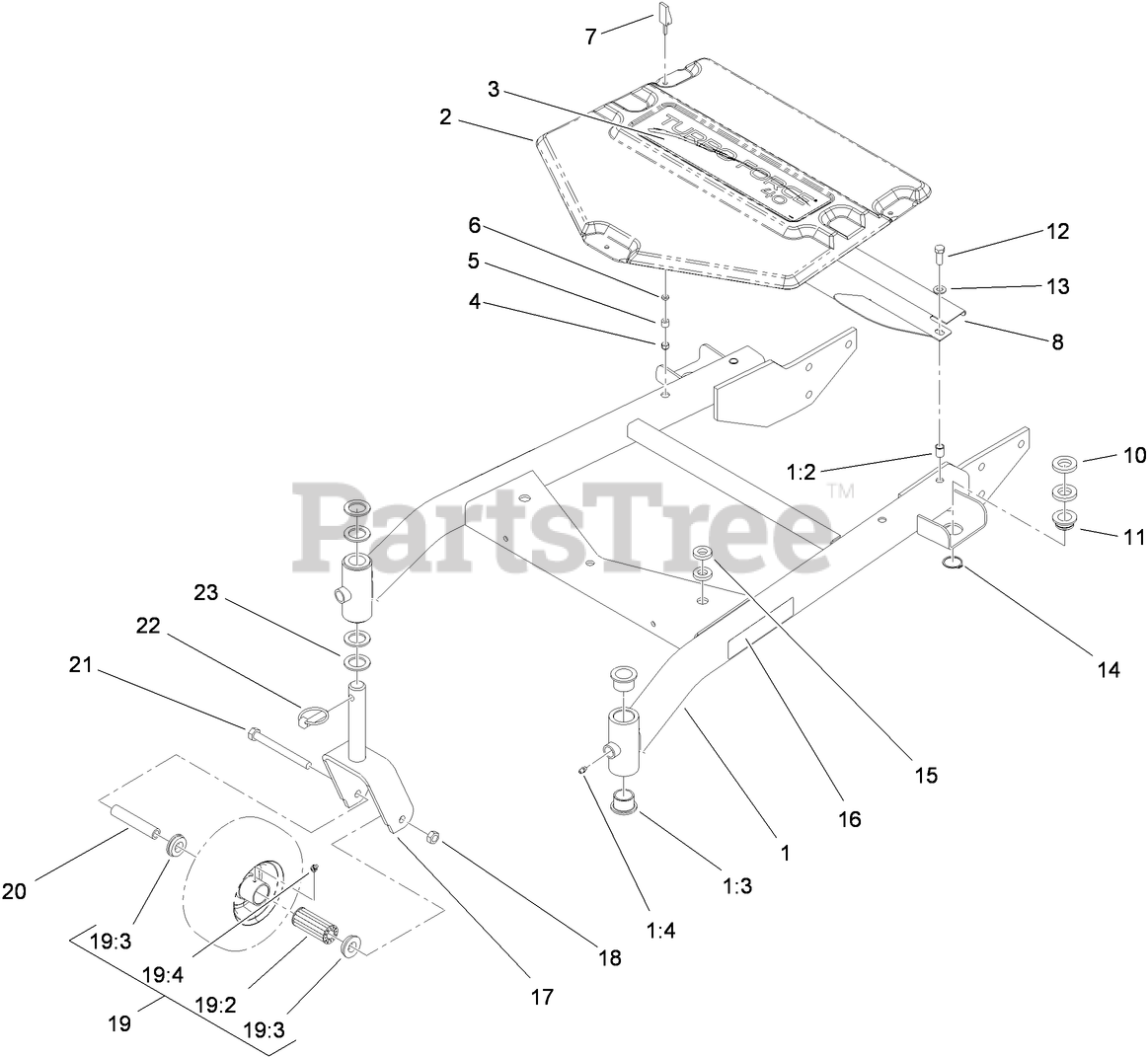

CARRIER FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 110-6965

CARRIER FRAME ASM

$

$

Not available

1:2

Toro 32148-9

INSERT-NUT

$3.49

$

In Stock, only 2 left!

0

1:3

Toro 94-1291

BUSHING

$10.99

$

In Stock, Qty 11

0

1:4

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

2

Toro 110-6985

COVER-FRAME, CARRIER

$253.99

$

Usually ships in 3-6 days

0

3

$69.99

$

Usually ships in 3-6 days

0

4

Toro 1-804254

NUT-LOCK, HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 106-6778

BUSHING-LATCH, SWELL

$1.49

$

In Stock, Qty 20+

0

6

Toro 99-3058

WASHER

$3.49

$

In Stock, Qty 20+

0

7

Toro 106-6777

HANDLE-LATCH, SWELL

$25.99

$

In Stock, Qty 9

0

8

Toro 119-6528-01

SHIELD-BELT

$83.99

$

Usually ships in 3-6 days

0

10

Toro 104-1105

SPACER-SUPPORT, DECK

$10.99

$

In Stock, only 3 left!

0

11

Toro 1-513336

BUSHING-DECK

$25.99

$

In Stock, Qty 7

0

12

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 32120-33

RING-RETAINING

$7.49

$

In Stock, only 4 left!

0

15

Toro 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

16

Toro 106-0635

DECAL-HOC

$7.49

$

Usually ships in 3-6 days

0

17

Toro 105-3159-01

FORK-CASTOR

$129.99

$

In Stock, only 1 left!

0

18

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

19

Toro 110-5024

WHEEL AND TIRE ASM

$67.99

$

Usually ships in 3-6 days

0

19:2

Toro 112-7066

BEARING-ROLLER

$28.99

$

In Stock, only 2 left!

0

19:3

Toro 1-513810

BUSHING

$5.99

$

In Stock, only 2 left!

0

19:4

Toro 302-61

FITTING-GREASE

$11.99

$

In Stock, only 2 left!

0

20

Toro 100-6453

BUSHING-SPANNER

$26.99

$

In Stock, only 2 left!

0

21

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

22

Toro 283-71

PIN-LYNCH

$5.99

$

In Stock, Qty 5

0

23

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0
