304447-0416-E1 - Briggs & Stratton Horizontal Engine Camshaft, Crankshaft, Cylinder, Engine Gasket Set, Piston/Rings/Connecting Rod Parts Diagram

Horizontal Engine

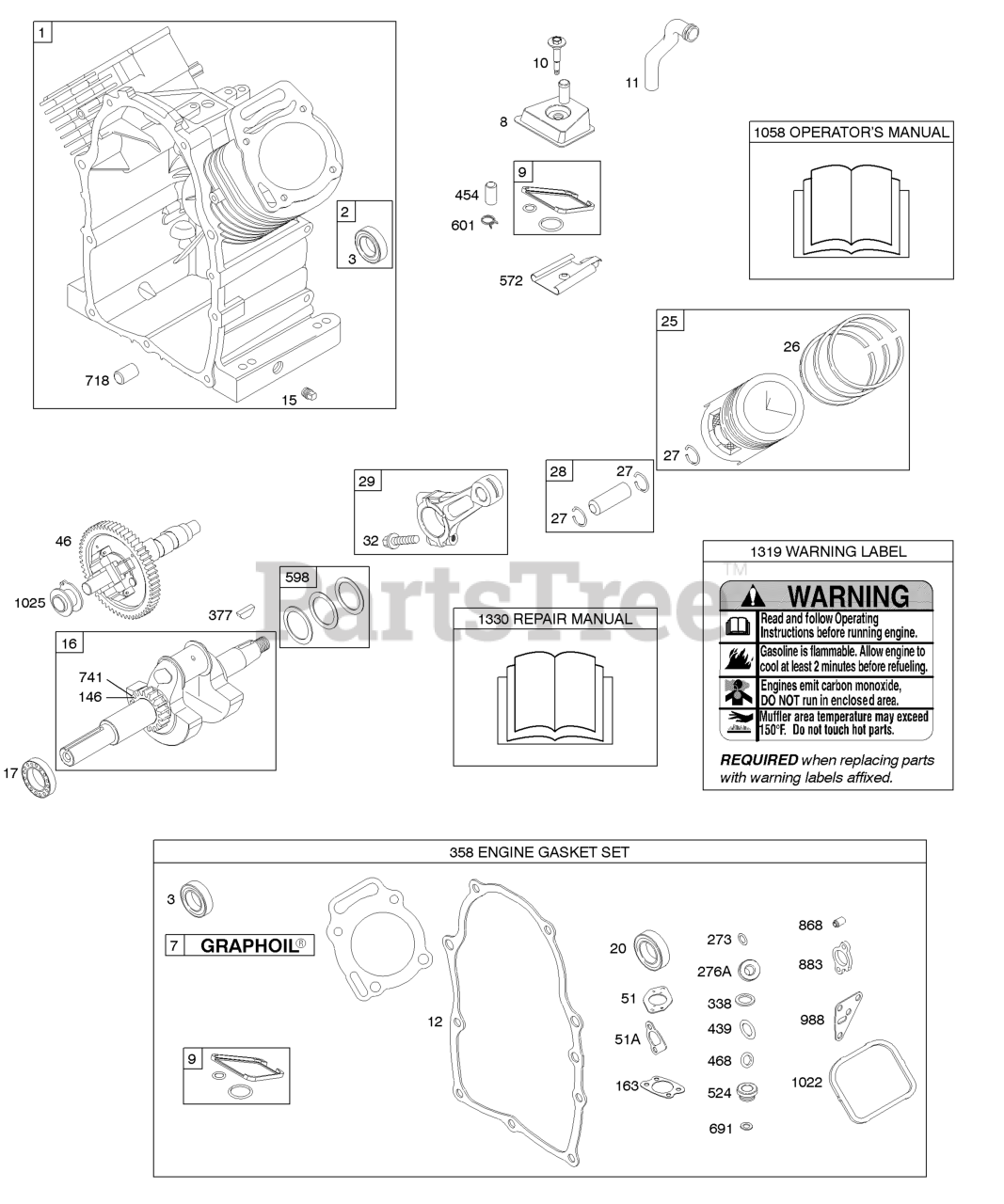

Camshaft, Crankshaft, Cylinder, Engine Gasket Set, Piston/Rings/Connecting Rod Parts Diagram

  • Title

1

Briggs & Stratton 808690

Cylinder Assembly

$546.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 808534

Kit-Bushing/Seal

Note: (Magneto Side)

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 805101S

Seal-Oil

Note: (Magneto Side)

$13.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 806085S

Gasket-Cylinder Head

$28.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 808984

Breather Assembly

Note: Used Before Code Date 04060100

$53.99

$

In Stock, Qty 16

0

9

Briggs & Stratton 809094

Gasket-Breather
(Superseded to 844986)

Note: Used Before Code Date 04060100

$8.49

$

In Stock, only 2 left!

0

10

Briggs & Stratton 690751

Screw

Note: (Breather Assembly) Used Before Code Date 04060100

$7.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 808686

Tube-Breather

$73.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 846487

Gasket-Crankcase

$41.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 690946

PLUG, Oil Drain

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 692161

Crankshaft
(Superseded to 84004501)

$425.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 690752

Bearing-Ball
(Superseded to 843827)

$36.99

$

In Stock, only 3 left!

0

20

Briggs & Stratton 805049S

Seal-Oil

Note: (PTO Side)

$12.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 807619

Piston Assembly
(Superseded to 843951)

$

$

Not available

25

Briggs & Stratton 807809

Piston Assembly
(Superseded to 843958)

Note: (.020 Oversize)

$

$

Not available

26

Briggs & Stratton 807620

Ring Set
(Superseded to 843951)

$

$

Not available

26

Briggs & Stratton 807810

Ring Set
(Superseded to 843958)

Note: (.020 Oversize)

$

$

Not available

27

Briggs & Stratton 690683

Lock-Piston Pin

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 807621

Pin-Piston

$17.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 807900S

Rod-Connecting

$

$

Not available

32

Briggs & Stratton 690698

Screw

Note: (Connecting Rod)

$7.49

$

In Stock, only 1 left!

0

46

Briggs & Stratton 691557

Camshaft
(Superseded to 845649)

$184.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 806457

Gasket-Intake

$4.49

$

In Stock, only 1 left!

0

51A

Briggs & Stratton 692035

Gasket-Intake

$3.49

$

In Stock, Qty 17

0

146

Briggs & Stratton 691639

KEY, Woodruff

$4.49

$

In Stock, Qty 5

0

163

Briggs & Stratton 692081

Gasket-Air Cleaner

$5.49

$

In Stock, only 2 left!

0

273

Briggs & Stratton 690681

Seal-O Ring

Note: (Oil Pump)

$5.99

$

In Stock, only 2 left!

0

276A

Briggs & Stratton 807085

Washer-Sealing

Note: Used After Code Date 01120200

$3.99

$

In Stock, Qty 17

0

276A

Briggs & Stratton 691766

Washer-Sealing

Note: Used Before Code Date 01120300

$6.49

$

In Stock, Qty 20+

0

338

Briggs & Stratton 691312

Gasket-Dipstick
(Superseded to 809500)

$10.99

$

In Stock, Qty 14

0

358

Briggs & Stratton 841188

Gasket Set-Engine

Note: Used After Code Date 01120200

$122.99

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 808704

Gasket Set-Engine

Note: Used Before Code Date 01120300

$131.99

$

Usually ships in 2-12 days

0

377

Briggs & Stratton 808095

Key-Woodruff

$13.99

$

Usually ships in 2-12 days

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump) or (Cylinder Assembly)

$5.99

$

In Stock, Qty 20+

0

454

Briggs & Stratton 693289

Cap-Breather

$9.49

$

Usually ships in 2-12 days

0

468

Briggs & Stratton 690690

SEAL, O-Ring

Note: (Oil Pump Screen)

$5.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 693172

Seal-Dipstick Tube

$5.49

$

In Stock, only 2 left!

0

572

Briggs & Stratton 690686

Baffle-Breather

Note: Used Before Code Date 04060100

$14.99

$

In Stock, only 1 left!

0

598

Briggs & Stratton 807625

Shim-End Play

Note: (Crankshaft or Camshaft Bearing)

$19.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 691145

Clamp-Hose

$3.99

$

Usually ships in 2-12 days

0

691

Briggs & Stratton 690680

Seal-Governor Shaft
(Superseded to 842826)

$7.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 806469

Pin-Locating

$5.99

$

In Stock, only 2 left!

0

741

Briggs & Stratton 691530

Gear-Timing
(Superseded to 846085)

$19.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 691963

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 691613

Gasket-Exhaust

$5.49

$

In Stock, only 3 left!

0

988

Briggs & Stratton 692063

Gasket-Oil Adapter

$4.49

$

In Stock, only 4 left!

0

1022

Briggs & Stratton 806039S

Gasket-Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1025

Briggs & Stratton 690689

Spool-Governor

$22.99

$

In Stock, only 2 left!

0

1058

Briggs & Stratton 276343

Operator's Manual
(Superseded to 276344TRI)

$

$

Not available

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1330

Briggs & Stratton 272144

Repair Manual

$48.99

$

In Stock, only 3 left!

0
