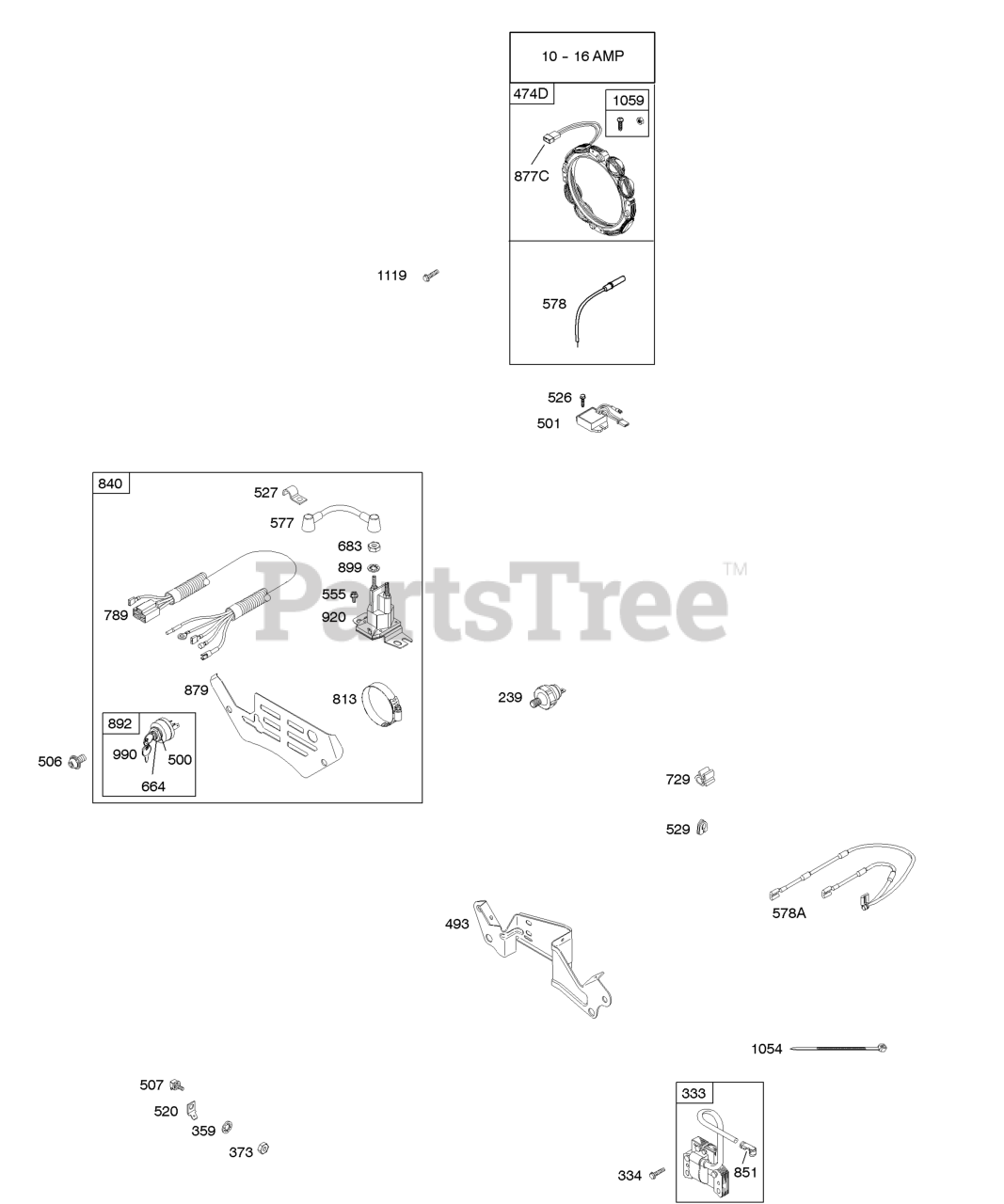

304447-0416-E1 - Briggs & Stratton Horizontal Engine Alternator, Ignition Parts Diagram

Horizontal Engine

Alternator, Ignition Parts Diagram

  • Title

239

Briggs & Stratton 690233

Switch-Oil Pressure

$28.99

$

In Stock, Qty 5

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 692066

Screw

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 7

0

359

Briggs & Stratton 691077

Washer

Note: (Ground Terminal)

$3.49

$

In Stock, only 2 left!

0

373

Briggs & Stratton 691612

NUT

Note: (Ground Terminal)

$3.49

$

In Stock, only 1 left!

0

474D

Briggs & Stratton 696458

Alternator
(Superseded to 592830)

$101.99

$

In Stock, Qty 20+

0

493

Briggs & Stratton 691177

BRACKET, Mounting

$24.99

$

Usually ships in 2-12 days

0

500

Briggs & Stratton 691086

WASHER

Note: (Key Switch)

$4.49

$

Usually ships in 2-12 days

0

501

Briggs & Stratton 691185

Regulator
(Superseded to 845907)

$61.99

$

In Stock, Qty 20+

0

506

Briggs & Stratton 690677

SCREW

Note: (Carburetor Cover)

$3.99

$

In Stock, only 2 left!

0

507

Briggs & Stratton 691972

Insulator

$8.49

$

In Stock, only 3 left!

0

520

Briggs & Stratton 691084

Terminal-Ground

$6.49

$

In Stock, only 2 left!

0

526

Briggs & Stratton 692067

SCREW

Note: (Regulator)

$3.99

$

In Stock, Qty 9

0

527

Briggs & Stratton 690423

CLAMP, Tube

$4.99

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 690744

Grommet

$7.49

$

Usually ships in 2-12 days

0

555

Briggs & Stratton 692067

SCREW

Note: (Starter Solenoid)

$3.99

$

In Stock, Qty 9

0

577

Briggs & Stratton 690795

CABLE, Starter

$18.99

$

In Stock, only 2 left!

0

578

Briggs & Stratton 692306

WIRE ASSEMBLY

$17.99

$

Usually ships in 2-12 days

0

578A

Briggs & Stratton 692319

Wire Assembly

$17.99

$

In Stock, Qty 20+

0

664

Briggs & Stratton 691087

NUT

Note: (Key Switch)

$4.49

$

Usually ships in 2-12 days

0

683

Briggs & Stratton 691029

NUT

Note: (Starter Solenoid)

$5.49

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 690586

Clip-Wire

$3.99

$

In Stock, only 3 left!

0

789

Briggs & Stratton 691996

Harness-Wiring

$44.99

$

Usually ships in 2-12 days

0

813

Briggs & Stratton 690635

CLAMP

$24.99

$

Usually ships in 2-12 days

0

840

Briggs & Stratton 842828

Kit-Panel

$74.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

877C

Briggs & Stratton 399916

Wire/Connector-Alternator

Note: (2 Wires, 7-53/64" Long)(2 Bare Wire Ends, And Insulated Snap ConnectMale Pin Terminal)

$12.99

$

Usually ships in 2-12 days

0

879

Briggs & Stratton 806648

Cover-Carburetor

$23.99

$

Usually ships in 2-12 days

0

892

Briggs & Stratton 692318

Switch-Key

$29.99

$

In Stock, Qty 19

0

899

Briggs & Stratton 691077

Washer

Note: (Starter Solenoid)

$3.49

$

In Stock, only 2 left!

0

920

Briggs & Stratton 691656

SOLENOID, Starter

$31.99

$

In Stock, Qty 20+

0

990

Briggs & Stratton 691959

SET, Key

$7.99

$

In Stock, Qty 7

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691552

SCREW

Note: (Alternator)

$3.99

$

Usually ships in 2-12 days

0
