30439 - Toro 44" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp (SN: 240000001 - 240999999) (2004) ENGINE, CLUTCH AND BRAKE ASSEMBLY Parts Diagram

44" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp

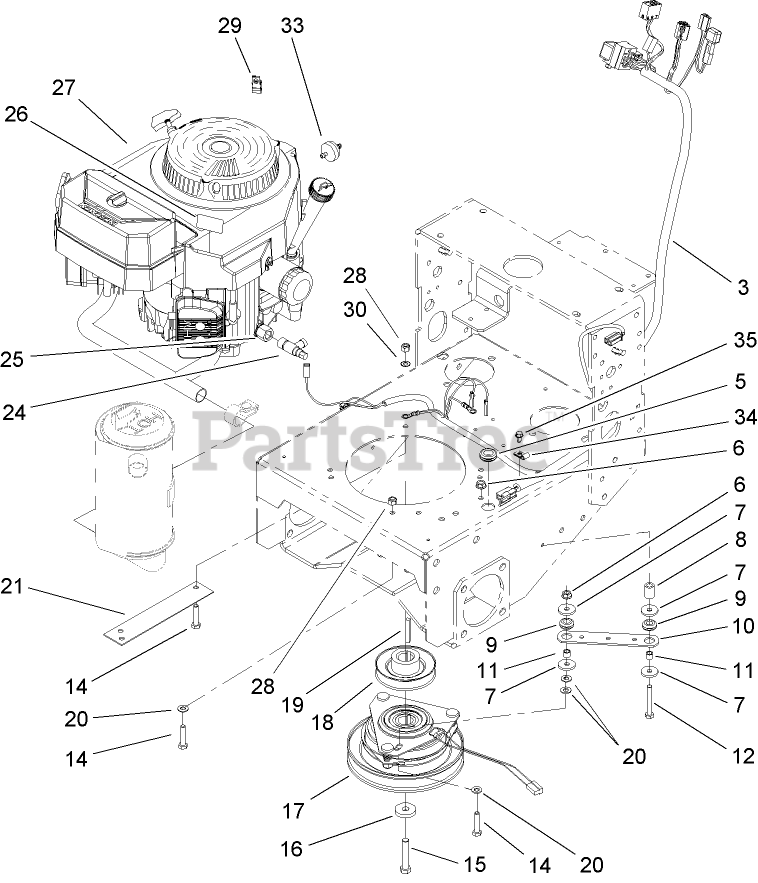

ENGINE, CLUTCH AND BRAKE ASSEMBLY Parts Diagram

  • Title

3

Toro 106-8781

WIRE HARNESS

$

$

Not available

5

Toro 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

6

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Toro 1-613235

WASHER

$1.99

$

In Stock, Qty 11

0

8

Toro 104-6373

TUBE-RETAINER

$17.99

$

Usually ships in 3-6 days

0

9

Toro 1-633630

GROMMET

$5.99

$

In Stock, Qty 8

0

10

Toro 1-633543-03

STRAP-CLUTCH, BRAKE

$15.99

$

In Stock, only 2 left!

0

11

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

12

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

14

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3212-9

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

16

Toro 112843

WASHER

$3.99

$

In Stock, Qty 11

0

17

Toro 105-2635

CLUTCH / BRAKE ASM

$611.99

$

In Stock, only 1 left!

0

18

Toro 44-5940

Pulley

$160.99

$

Usually ships in 3-6 days

0

19

Toro 608006

KEY-SQUARE

$5.49

$

Usually ships in 3-6 days

0

20

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

21

Toro 94-5847-01

COVER-PULLEY

$

$

Not available

24

Toro 103-1965

Valve-Drain, Oil

$59.99

$

In Stock, only 1 left!

0

25

Toro 103-1966

Adapter

$19.99

$

In Stock, Qty 5

0

26

Toro 106-0699

DECAL-WARNING

$

$

Not available

27

ENGINE-KAWASAKI, FH430V-AS28

Note: Not serviced separately

$

$

Not available

28

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

30

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

33

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 11

0

34

Toro 2412-72

CLIP-CLOSED, INSULATED

$2.49

$

In Stock, Qty 12

0

35

Toro 12-3270

SCREW

$3.99

$

In Stock, Qty 13

0

99

Toro 103-1964

HOSE-DRAIN, OIL

Note: Not illustrated

$12.99

$

In Stock, only 2 left!

0
